Primelux | SKU: 909104

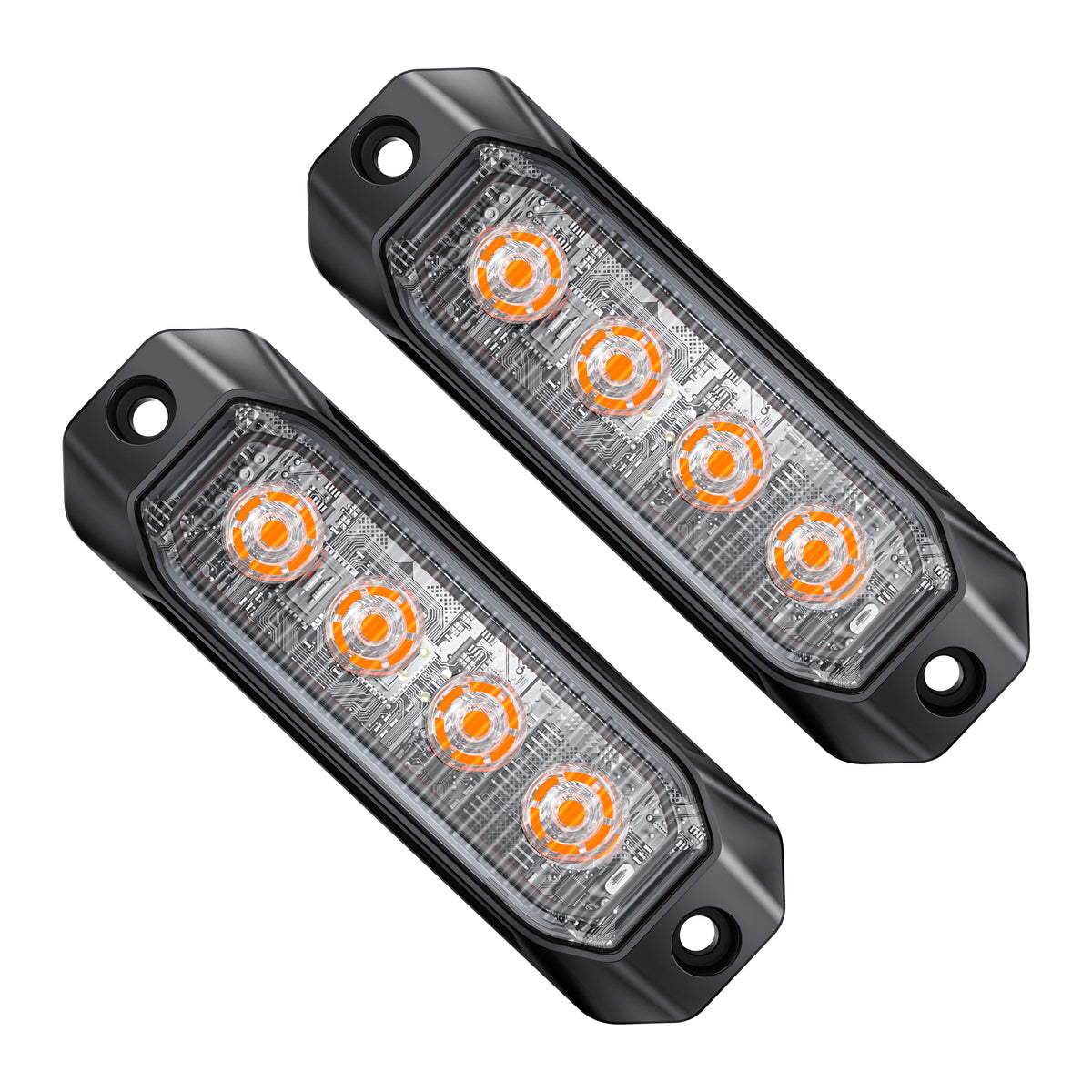

Primelux PSW0608A 4-LED Amber Strobe Lights (Pair)

SAE Class 1 | 10 Flash Patterns | Sync & Alternate | IP67

$39.99

Shipping calculated at checkout.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Key Features

SAE Class 1 amber warning: 4 LEDs per lighthead; two lightheads per pair for your vehicle warning setup.
Compact surface mount: 101 × 32 × 11 mm per lighthead, with 89 mm mounting-hole spacing.
10 selectable flash patterns: Includes single, double, triple and split patterns, selected using the yellow wire.
Coordinated flashing: Supports simultaneous or alternating operation when wired according to the series installation guide.
12V/24V compatibility: Accepts 10–30V DC input for use with either vehicle electrical system.
IP67 construction: Aluminum housing and polycarbonate lens; supplied with mounting hardware and protective gaskets.

Add amber warning lights to a work truck, service vehicle or equipment body without using a large light bar. The Primelux PSW0608A pairs four LEDs per lighthead with a compact 101 mm housing, making it the shorter option in the PSW06 series.

Sold as a pair, these SAE Class 1 amber LED strobe lights support simultaneous or alternating flashing when wired as shown in the installation guide. Choose from 10 flash patterns, including single, double, triple and split patterns. A 10–30V DC input range supports 12V and 24V vehicle electrical systems.

Built for a tidy surface-mount installation

An aluminum housing, polycarbonate lens and IP67 rating suit exterior vehicle installations. Each light measures 101 × 32 × 11 mm (3.98 × 1.26 × 0.43 in), with 89 mm mounting-hole spacing. Check the mounting area and wiring route before installation. The pair includes mounting hardware and protective gaskets.

Choose your PSW06 size

Choose the PSW0608A when mounting width is limited and you want the PSW06 series' 10-pattern control. For the six-LED version with a 120 mm housing, see the PSW0612A.

See Specifications for the full parameters and Documents for the PSW06 installation guide and wiring diagrams.

Specifications

What's in the Box

2 × Primelux Amber Surface Mount Strobe Lights
2 × Protective Gaskets
Stainless Steel Mounting Hardware (Screws & Nuts)
Installation Guide

Specifications for product Primelux PSW0608A 4-LED Amber Strobe Lights (Pair)
General
Unit Count	2
Warning Light Type	Lighthead
Electrical
Operating Voltage	10–30V DC
Unit Current Draw	1 A @ 13.8 V DC per lighthead.
Control Interface	Discrete Wires
Optical
LED Chips	4 × 3 W LEDs per lighthead
Light Color	Amber
Color Configuration	Single Color
Warning Operation	Flashing
Flash Pattern Count	10
Flash Pattern Details	10 selectable flash patterns: Single; Quadruple (split); Quintuple; Triple (split); Quadruple; Double (split); Triple; Single (split); Double; Sextuple.
Synchronization Modes	Simultaneous and Alternating
Mechanical
Material	Die-cast Aluminum Housing; UV-Resistant PC Lens
Unit Width	101 mm
Lens Material	UV-Resistant Polycarbonate (PC)
Unit Height	32 mm
Unit Depth	11 mm
Mounting Methods	Surface Mount
Mounting Hole Spacing	89 mm
Environmental & Compliance
IP Rating	IP67

DISCLAIMER: Not all products are available in every region. Specifications, designs, and images are for reference only and may vary. Ongoing improvements may result in changes without notice. Details may not cover all versions, and some features are version-specific.
