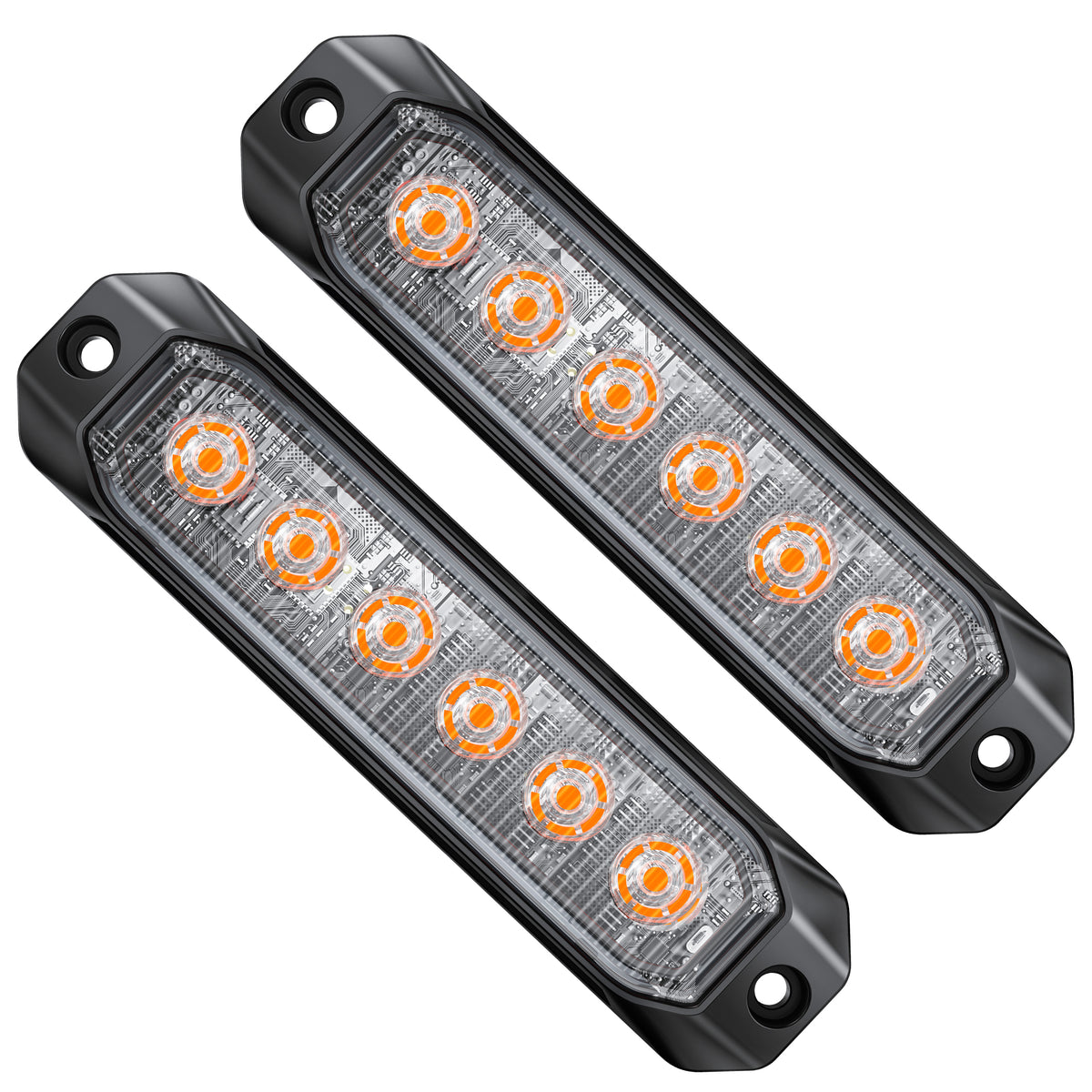

Primelux PSW0612A 6-LED Amber Strobe Lights (Pair)

The Primelux PSW0612A supplies two amber warning lightheads with six LEDs per lighthead. It is designed for surface-mounted warning-light installations on service and utility vehicles where housing dimensions, mode selection and coordinated flashing need to be planned together.

Key Features

• Amber Lightheads: Two lightheads with 6 LEDs per lighthead.
• Mode Selection: 10 selectable flash patterns.
• Coordinated Flashing: Supports simultaneous and alternating operation through the model-specific control wiring.
• Electrical: 10–30V DC operation; 12W per lighthead.
• Surface Mounting: 120 × 32 × 11 mm lighthead dimensions (W × H × D); 108 mm mounting-hole spacing.
• Construction: IP67-rated die-cast aluminum housing with a polycarbonate lens.

Plan the Lighthead Layout

The 120 mm width and 108 mm mounting-hole spacing provide dimensions for assessing the mounting surface. Protective gaskets and stainless steel hardware are included for the two lightheads.

Select and Coordinate the Flashing

The 10-pattern selection provides different flashing sequences for the installation. Simultaneous and alternating configurations support coordinated operation between lightheads. Use the PSW06 instructions when arranging the control wires for the chosen configuration.

Applications

For service vehicles stopping to inspect or maintain equipment, the pair can form part of an amber warning-light installation. On utility vehicles working around an equipment site, coordinated lightheads provide a way to organize the flashing layout across selected mounting positions.

The package contains two amber lightheads, protective gaskets, stainless steel mounting hardware and an installation guide.

2 × Primelux Amber Surface Mount Strobe Lights
2 × Protective Gaskets
Stainless Steel Mounting Hardware (Screws & Nuts)
Installation Guide
