Primelux PWH-02H4 12V H4 Dual-Relay Headlight Wiring Harness

Separate High/Low Beam Circuits · H4 Switching Adapters Included

Regular price $29.99
Shipping calculated at checkout.

Pay with

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your transaction is protected with advanced security measures to keep your information confidential

3-YEAR WARRANTY

Primelux products are backed by a 3-year limited warranty against defects in materials and workmanship under normal use. Warranty service is handled through the original purchase channel. Read more...

RETUNR & REFUND

NEED HELP?

Description

The Primelux PWH-02H4 is a 12V relay wiring harness for two H4 headlights. Separate high- and low-beam relay circuits and an included switching adapter pack make the vehicle's H4 wiring arrangement the starting point for selecting an installation configuration.

Key Features

  • Two H4 Headlights: 12V harness with separate high- and low-beam relay circuits.
  • Switching Options: Includes an adapter harness pack for positive- and negative-switched H4 systems.

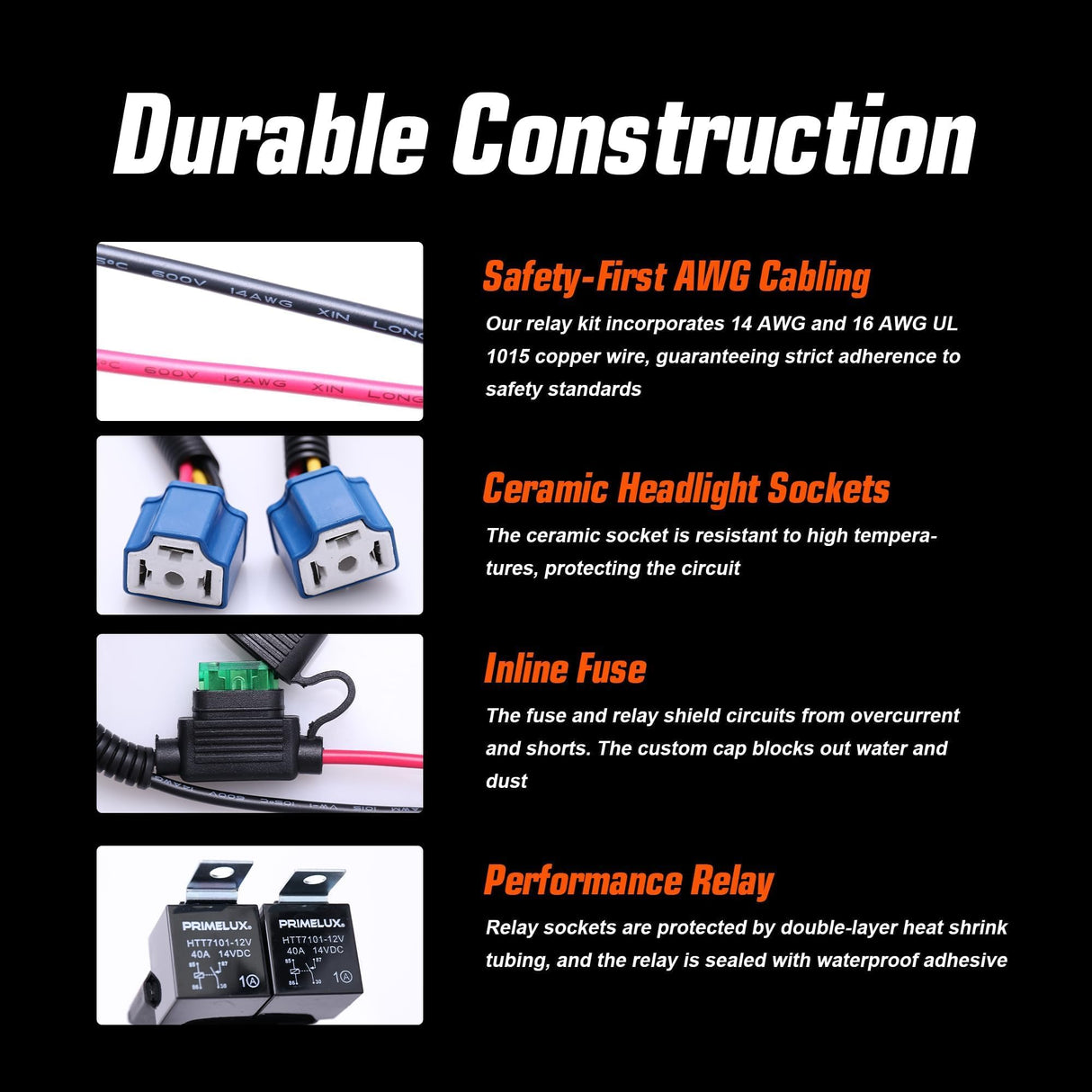

  • Connections: Ceramic H4 sockets with heat-shrink-protected relay sockets.

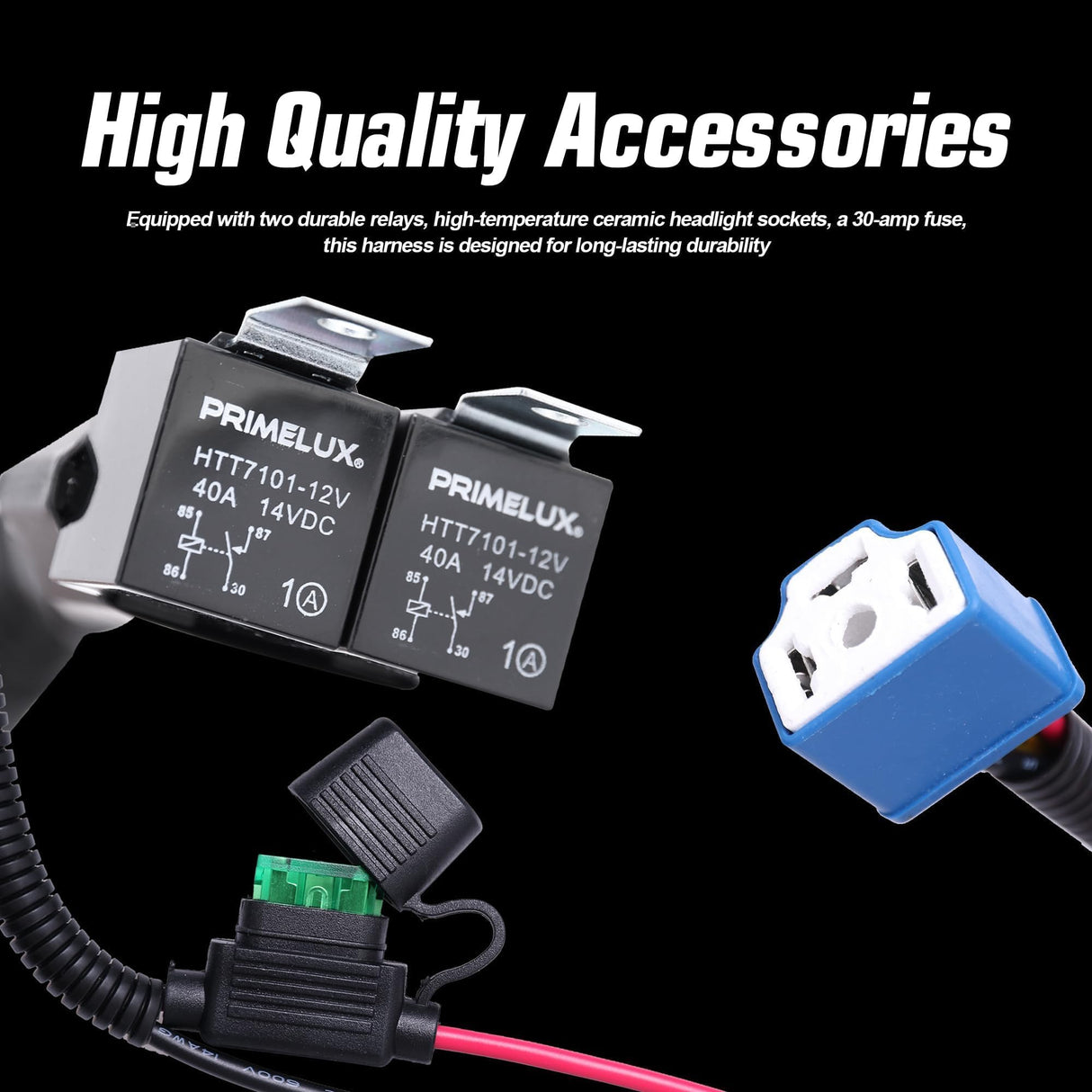

  • Main Battery Feed: 14 AWG copper wire with a 30 A inline fuse.
  • Headlight Power Leads: 14 AWG copper wire.
  • Relay Trigger Leads: 16 AWG copper wire.

Separate High- and Low-Beam Circuits

The dual relays provide fused battery power to the headlight circuits, keeping high- and low-beam operation on separate relay paths.

Recommended Headlight Load

To limit heat at the H4 sockets, keep the load at or below 10 A per headlight and 20 A total. At 12 V, this is 120 W per headlight and 240 W total. If the high and low beams run at the same time, count both toward the limit for each headlight.

Match the Vehicle's Switching Arrangement

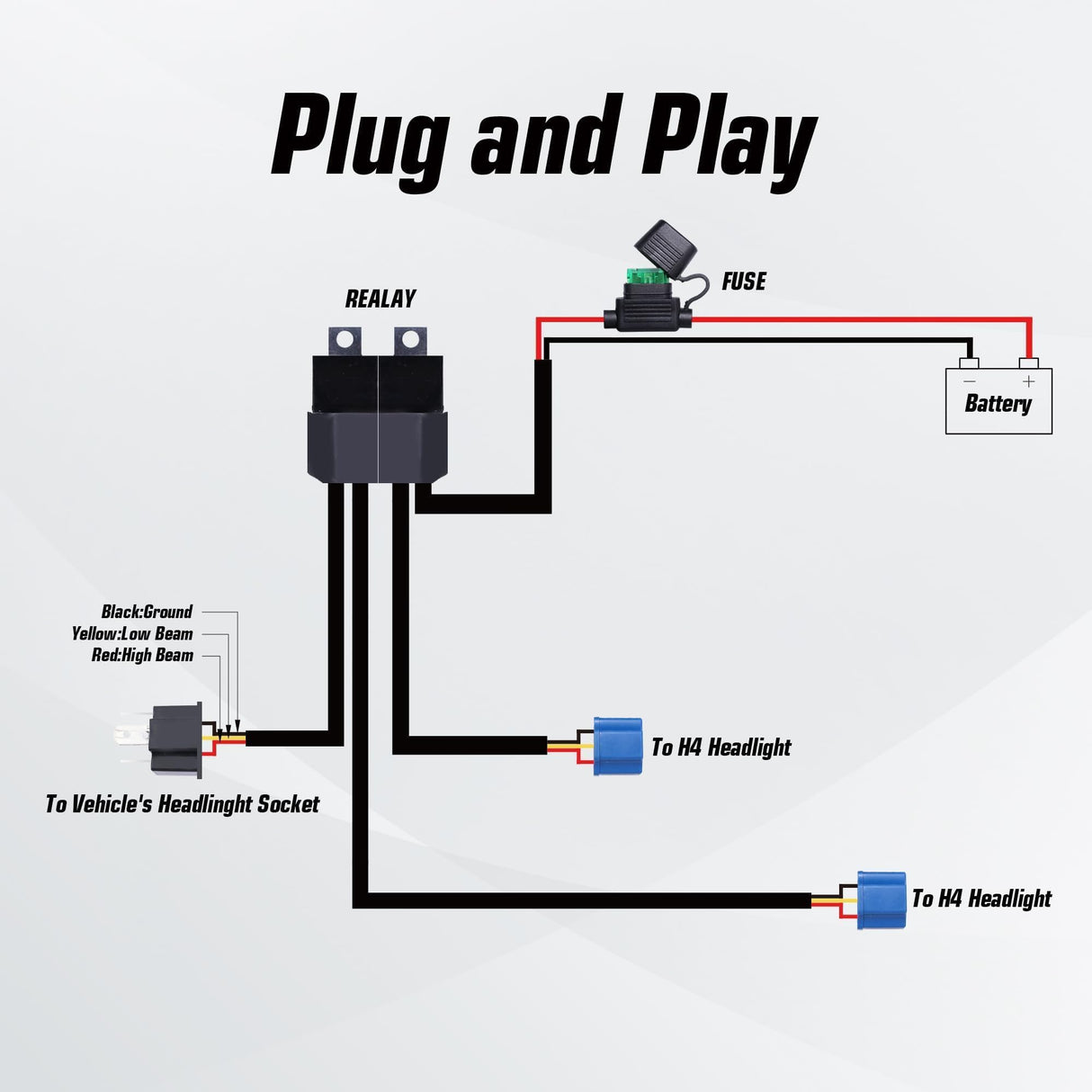

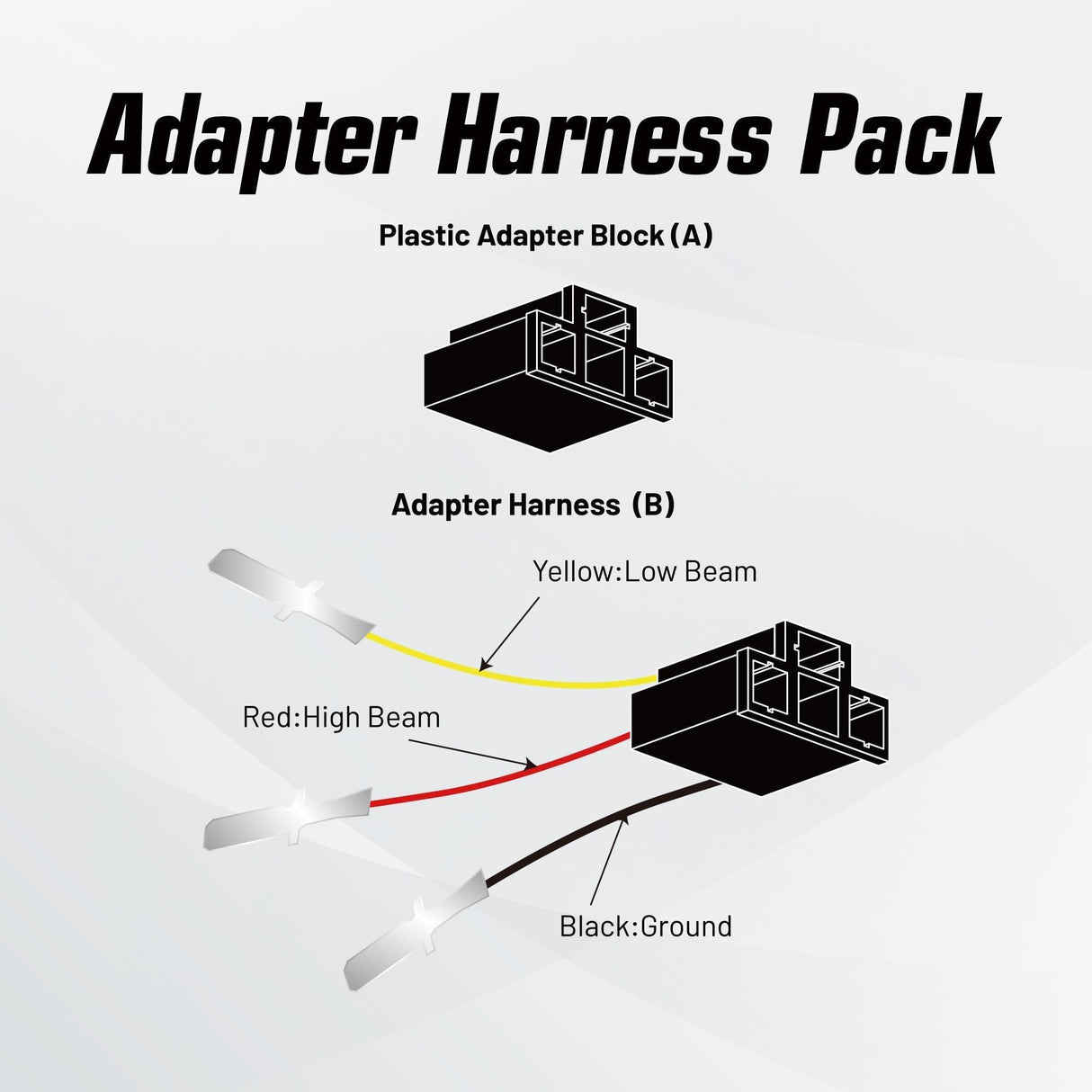

The included adapter harness pack supports positive- and negative-switched H4 systems. Confirm the vehicle's H4 pinout and switching type, then use the installation guide to select the corresponding arrangement. An H4 connector alone does not establish the complete electrical configuration.

The package includes one PWH-02H4 harness, one positive-/negative-switching adapter harness pack and an installation guide.

What's in the Box

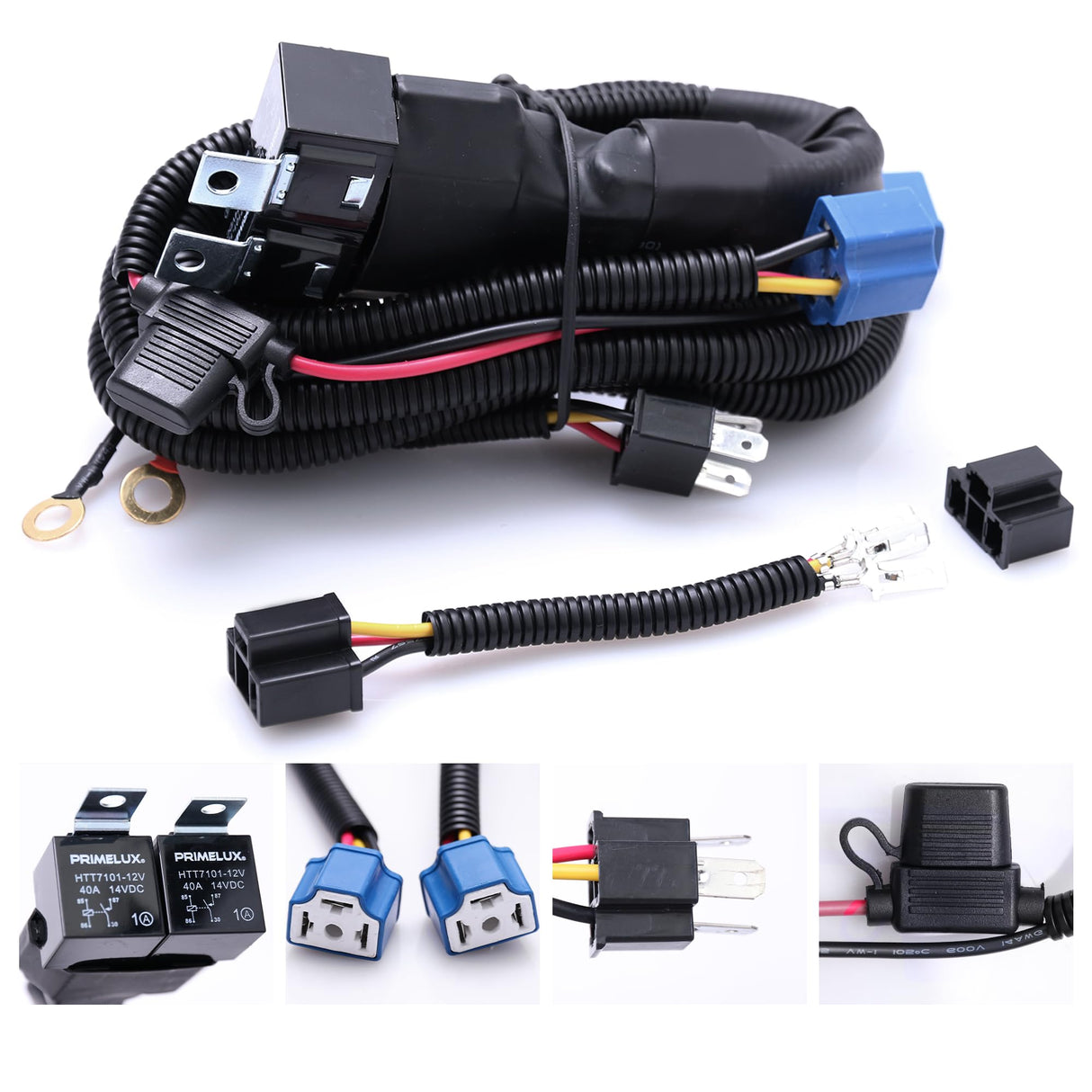

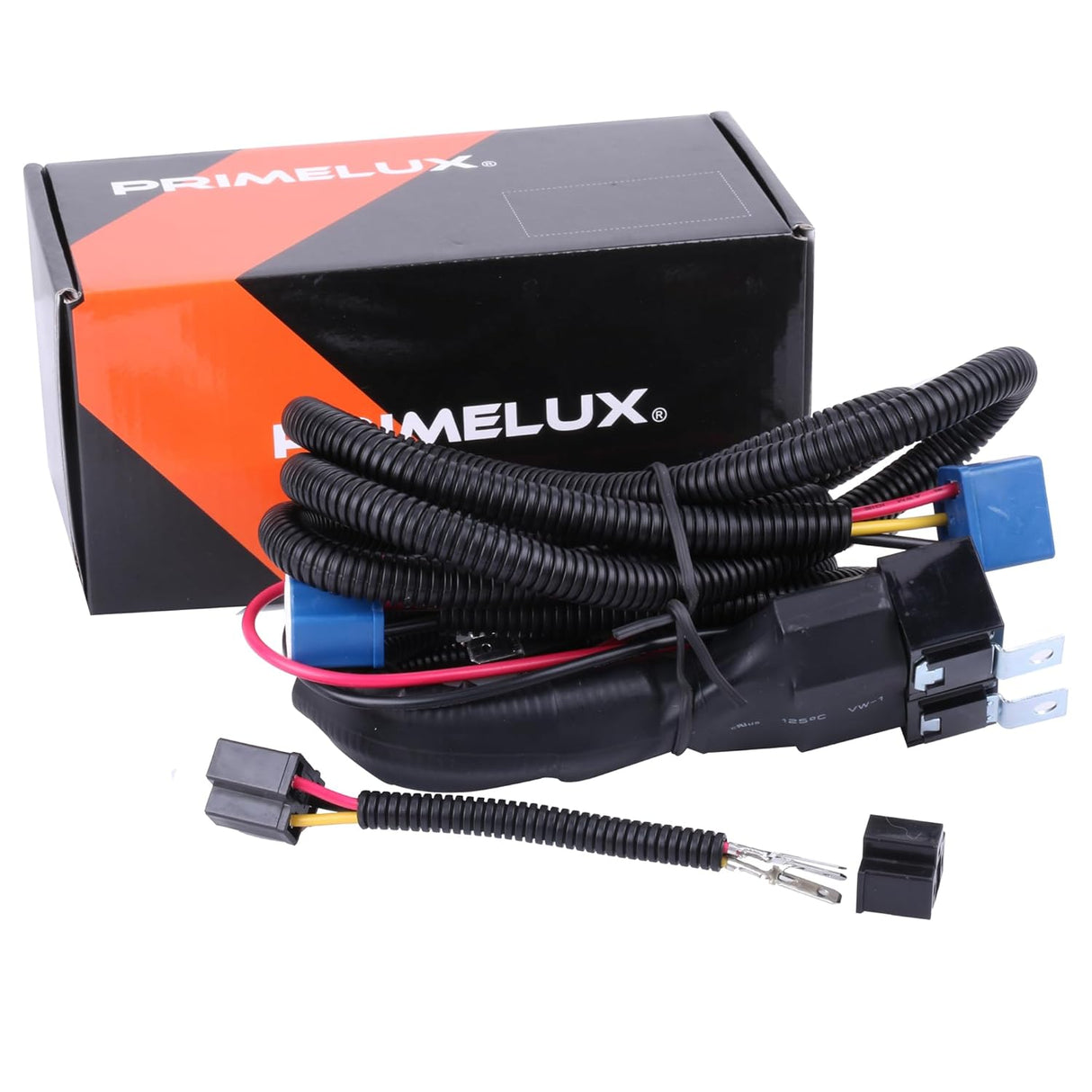

1 × Primelux PWH-02H4 H4 Relay Wiring Harness
1 × Positive-/Negative-Switching Adapter Harness Pack
1 × Installation Guide

Specifications
