PrimeLux | SKU:
90023901

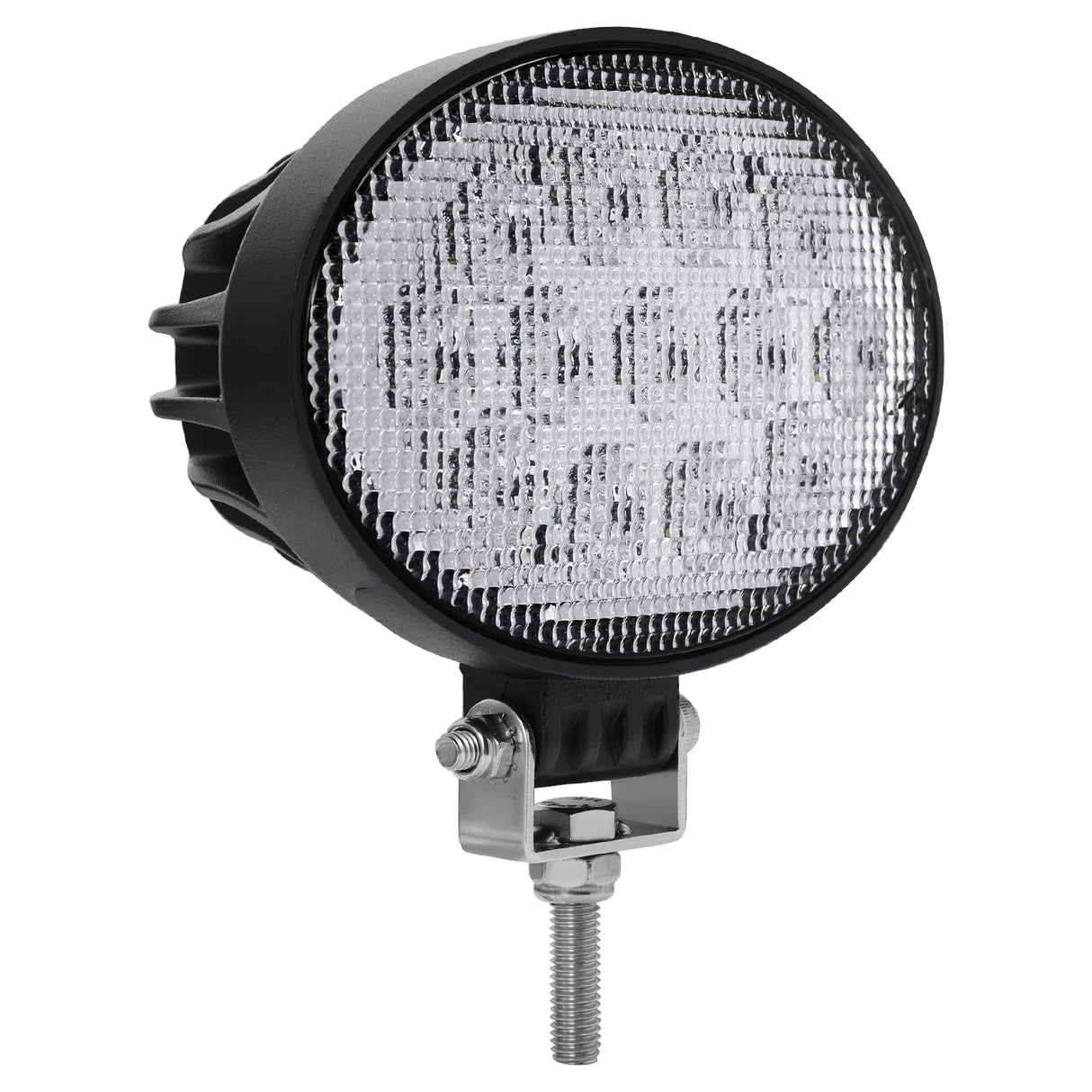

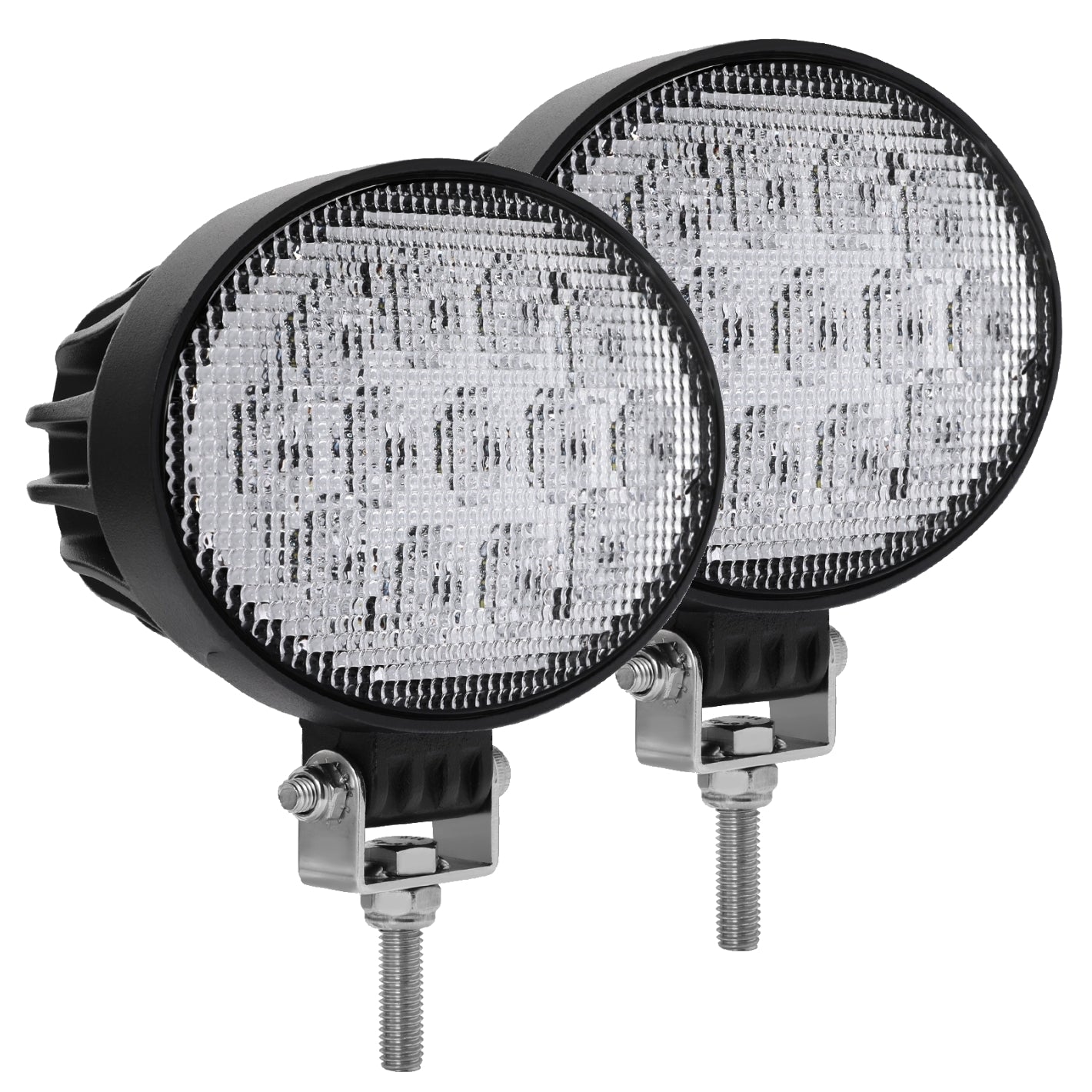

PrimeLux PX0139 5.8 Inch Oval LED Work Light
2,074 LM | 70° Flood Beam | 6500K
Regular price
$54.99
Unit price
Shipping calculated at checkout.
PrimeLux PX0139 5.8 Inch Oval LED Work Light - 1 Pack is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
1、Product Features:
- High-efficiency LED technology providing 2,074 lumens of true effective output.
- 6500K cool white light for superior clarity during night operations.
- IP68 and IP69K rated for maximum dust and high-pressure water resistance.
- ECE R10 EMC compliance prevents electronic interference with vehicle radios.
- Durable die-cast aluminum housing with a UV-resistant polycarbonate lens.
- Corrosion-resistant 304 stainless steel mounting hardware for longevity.
- Reliable performance in extreme environments from -22°F to +149°F.
2、Technical Specifications:
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX0139 |
| LED Lifespan | 50,000 hours |
| Input Voltage | 10-30V DC (12/24V Compatible) |
| Power Consumption | 30W |
| Current Draw | 2.26A @ 13.5V |
| Raw Luminous Flux | 3,000 LM |
| Effective Luminous Flux | 2,074 LM |
| Color Temperature | 6500K |

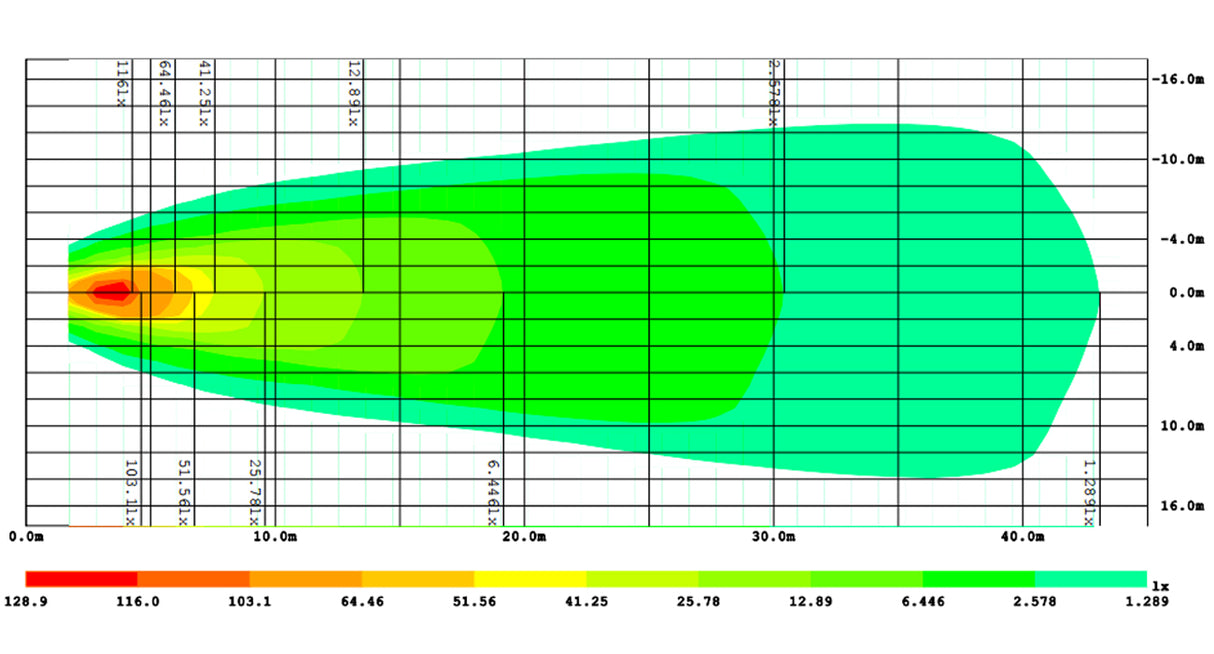

| Beam Pattern | Flood Beam |
| Beam Angle (50% cd) | 30° (H) × 27° (V) |
| Field Angle (10% cd) | 70° (H) × 55° (V) |
| Peak Intensity | 3,388.7 cd |
| Effective Range | 45 m / 147 ft |
| Ingress Protection | IP68 & IP69K |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |
| EMC Compliance | ECE R10 |
| Certification | - |

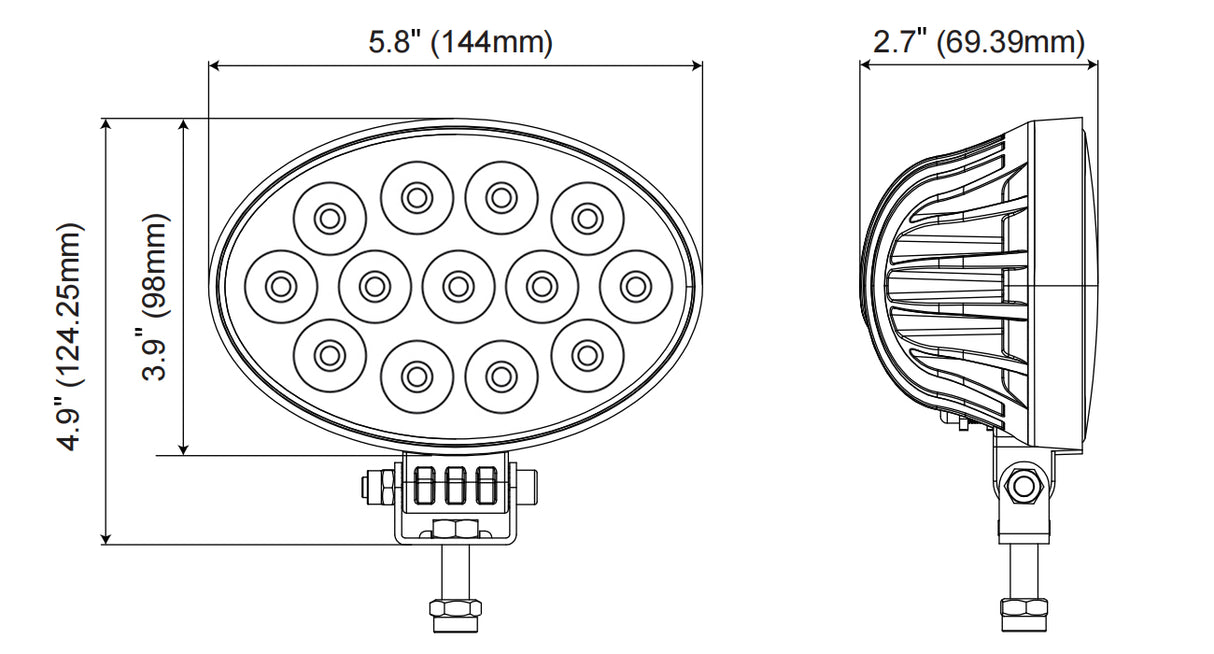

| Dimensions | 5.8 Inch |
3、What's in the Box:
According to 1 Pack data:
- 1 x 5.8 Inch Oval LED Tractor Light
- 1 x Bottom U-Bracket
- 2 x Bolts (1 x M8 Bolt & 1 x M6 Bolt)
- 2 x Nuts (1 x M8 Nut & 1 x M6 Nut)
- 2 x Spring Washers
