Primelux PX0139 5.8 Inch Oval LED Work Light (Single)
2,074 Effective Lumens / Light | 70° Wide Field | IP67
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
Key Features
- 2,074 Effective Lumens — One PX0139 light delivers 2,073.9 effective lumens of 6500K cool white light.
- Wide Flood Coverage — 70° (H) × 55° (V) field angle illuminates work areas around tractors, machinery, and utility vehicles.
- 12V / 24V Compatibility — Operates on 10–30V DC with 30 W power consumption and 2.26 A current draw at 13.5 V.
- IP67 Protection — A sealed housing provides dust and water protection for outdoor work.
- Durable Construction — Die-cast aluminum housing, UV-resistant polycarbonate lens, and 304 stainless steel mounting bracket.
- ECE R10 EMC Compliance — Meets the listed automotive electromagnetic compatibility requirements.
- Single-Light Package — Includes one light, a bottom U-bracket, and mounting hardware; connection uses pigtail leads.

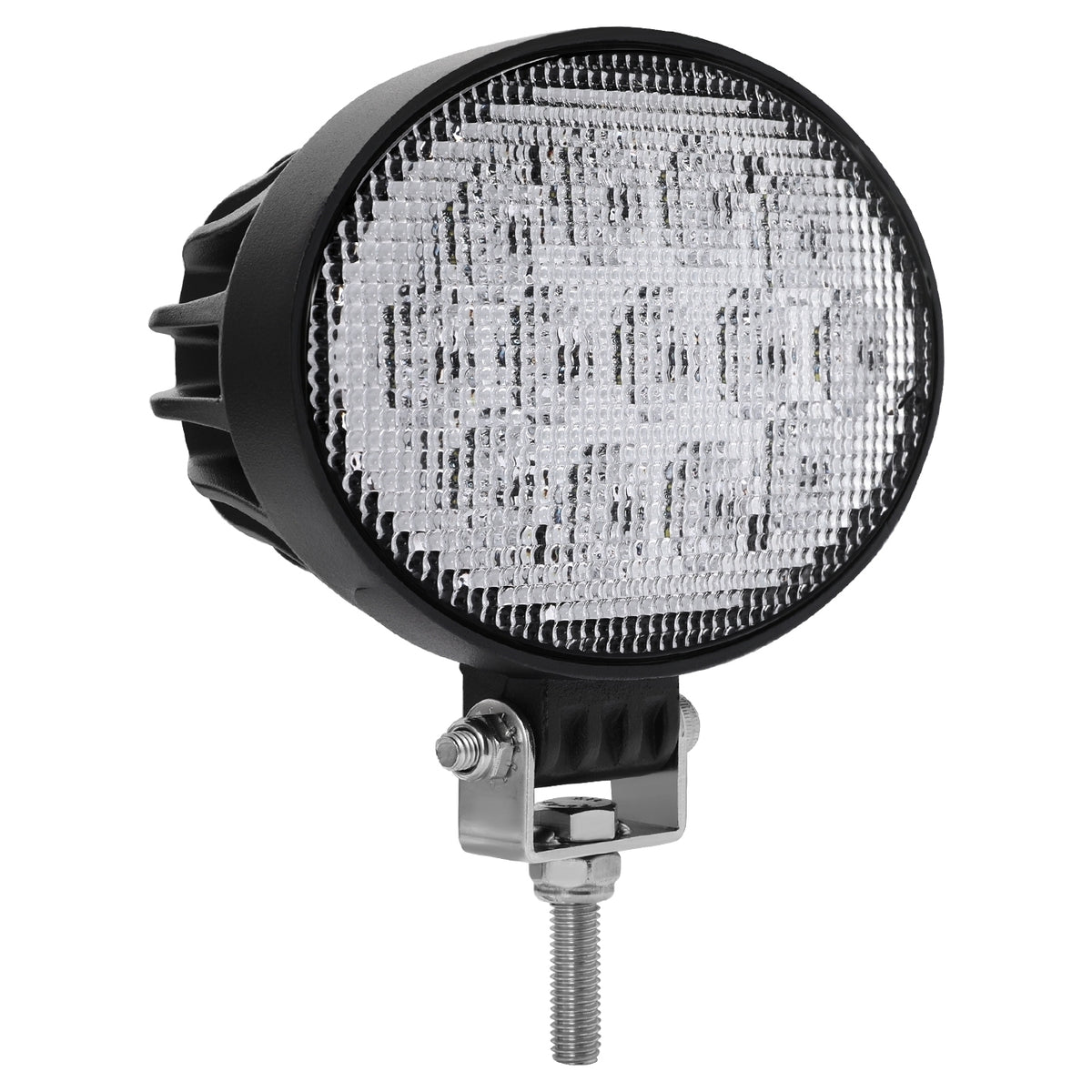

The Primelux PX0139 is a 5.8-inch oval LED work light for tractors, machinery, utility vehicles, and other work equipment. This single-light package delivers 2,073.9 effective lumens (approximately 2,074 lm) of 6500K cool white light, with a flood pattern for broad work-area illumination.
The light has a 30° (H) × 27° (V) beam angle at 50% peak intensity and a wider 70° (H) × 55° (V) field angle at 10% peak intensity. It operates on 10–30V DC, making it suitable for 12V and 24V electrical systems, with a 30 W input power consumption.
An IP67-rated die-cast aluminum housing, UV-resistant polycarbonate lens, and 304 stainless steel mounting bracket support outdoor use. The PX0139 has ECE R10 EMC compliance and an operating temperature range of -30°C to +65°C (-22°F to +149°F).
Supplied with one light, one bottom U-bracket, and mounting hardware. Pigtail leads connect to the vehicle's wiring. Check the dimensional drawing and your installation's mounting clearance before fitting.
All Unit specifications refer to one light. Listed beam distances of 58.31 m at 1 lx, 82.46 m at 0.5 lx, and 116.62 m at 0.25 lx are calculated from the recorded 34 lx center illuminance at 10 m using the inverse-square relationship, under the same conditions. They describe center-direction illuminance thresholds, not a guaranteed usable working distance.
Specifications
Specifications
What's in the Box
What's in the Box
| General | |
|---|---|
SKU |
|
Model |
|
Size |
|
Unit Count |
|
| Mechanical | |
Unit Width |
|
Unit Height |
|
Unit Depth |
|
Height Including Bracket |
|
Unit Weight |
|
Material |
|
Lens Material |
|
| Electrical | |
Operating Voltage |
|
Unit Current Draw |
|
Unit Power Consumption |
|
Connector Type |
|
| Optical | |
LED Chips |
|
Beam Angle (50% cd) |
|
Field Angle (10% cd) |
|
Beam Pattern |
|
Color Temperature |
|
Unit Raw Lumens |
|
Unit Effective Lumens |
|
Unit Peak Intensity |
|
Unit Center Illuminance @ 10 m |
|
Unit Beam Distance @ 1 Lux |
|
Unit Beam Distance @ 0.5 Lux |
|
Unit Beam Distance @ 0.25 Lux |
|
| Environmental & Compliance | |
Ingress Protection (IP Rating) |
|
Operating Temperature |
|
EMC Compliance |
|
Regulatory Compliance |
|
| Documents | |

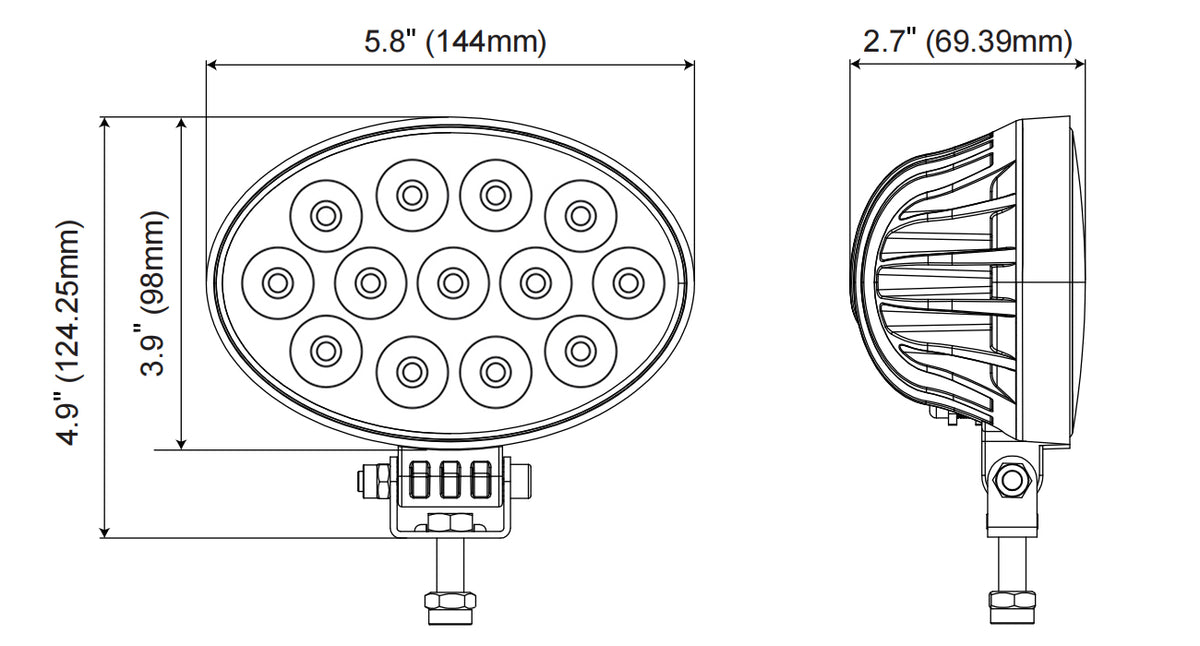

Dimensional Drawing |
 |
 | |
|---|---|
SKU |
|
Model |
|
Size |
|
Unit Count |
|
Unit Width |
|
Unit Height |
|
Unit Depth |
|
Height Including Bracket |
|
Unit Weight |
|
Material |
|
Lens Material |
|
Operating Voltage |
|
Unit Current Draw |
|
Unit Power Consumption |
|
Connector Type |
|
LED Chips |
|
Beam Angle (50% cd) |
|
Field Angle (10% cd) |
|
Beam Pattern |
|
Color Temperature |
|
Unit Raw Lumens |
|
Unit Effective Lumens |
|
Unit Peak Intensity |
|
Unit Center Illuminance @ 10 m |
|
Unit Beam Distance @ 1 Lux |
|
Unit Beam Distance @ 0.5 Lux |
|
Unit Beam Distance @ 0.25 Lux |
|
Ingress Protection (IP Rating) |
|
Operating Temperature |
|
EMC Compliance |
|
Regulatory Compliance |
|
Dimensional Drawing |
|
