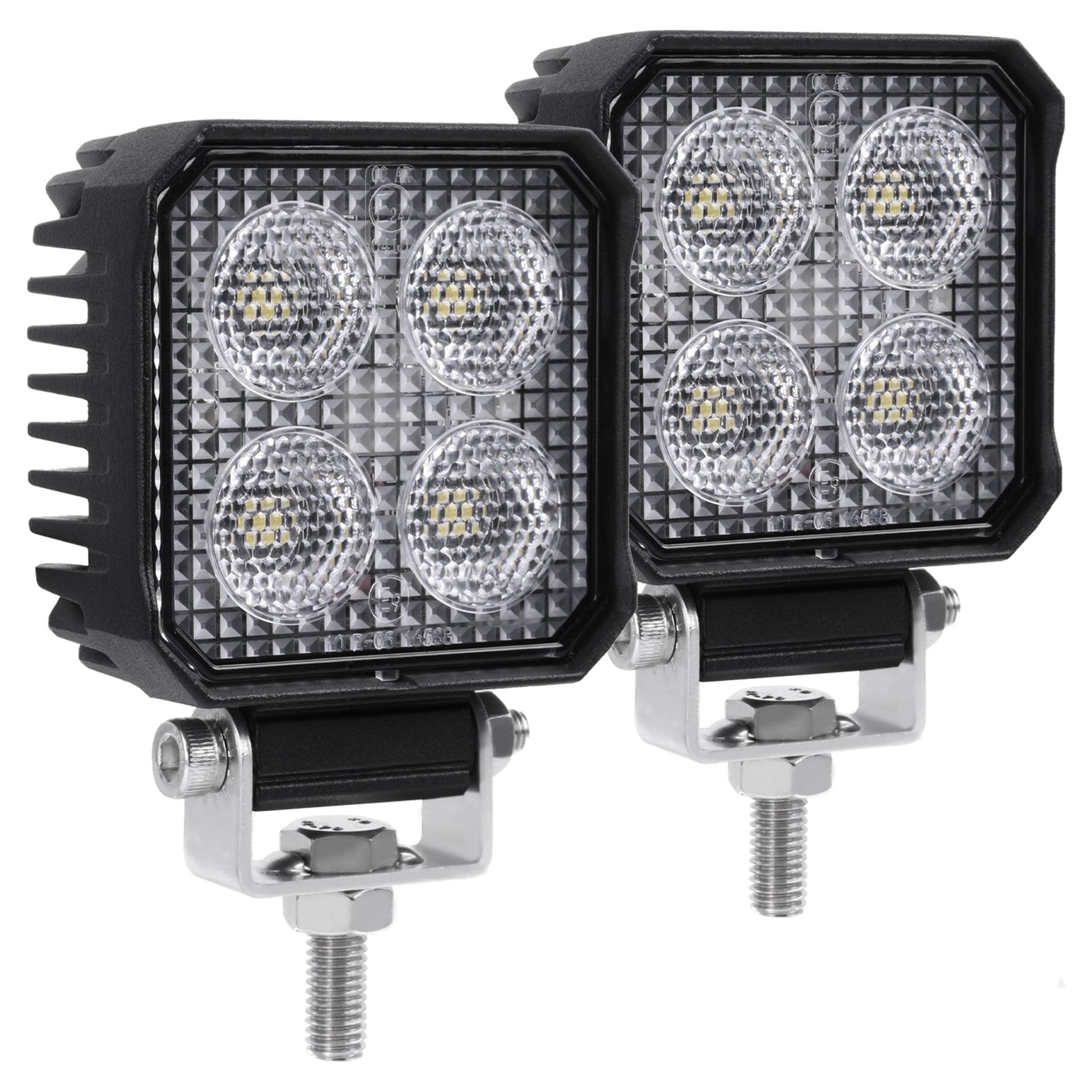

Primelux PX0724 2.8" Square LED Work Light (Pair)
2,098 Eff. LM PER LIGHT| 136° Wide Field | 5700K
Primelux PX0724 2.8" Square LED Work Light (Pair) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Designed for high-performance illumination in a space-saving 2.8-inch housing, the Primelux PX0724 is the perfect solution for near-field visibility on compact machinery and service vehicles. Pulling a verified 23.70 watts per pod to produce 2,097.8 effective lumens, these square lights utilize precision optics to project a broad 136° horizontal spread, ensuring exceptional peripheral awareness in any work environment.
Features
- Precision "Light Blade" Optics: Featuring a meticulously engineered 136° (H) × 51° (V) Field Angle, the lens shapes the light into a wide, controlled beam. This maximizes ground coverage across your workspace while vertically compressing the light to eliminate hood glare and prevent blinding oncoming operators.
- Verified 100ft (30m per light) Reach: Optimized for near-field tasks where clarity is paramount, the PX0724 maintains a robust 1,465.6 cd peak intensity. This translates to a validated 30-meter effective range (at 1.0 lux), providing the steady, reliable illumination needed for safe maneuvers.
- Extreme Weather Resilience: Rated at a dual IP68 and IP69K. The fully sealed die-cast aluminum housing is built to endure total submersion, heavy mud, and high-pressure, high-temperature steam washdowns in the harshest industrial conditions.
- Zero Radio Interference: Fully compliant with ECE R10 standards. The advanced integrated EMC circuitry guarantees that your vehicle's GPS, two-way radios, and sensitive onboard electronics operate without a hint of electromagnetic interference.
- Built to Endure: Equipped with a rugged, UV-resistant polycarbonate (PC) lens and secured by heavy-duty 304 stainless steel brackets, these lights are designed to withstand the persistent vibrations and mechanical stress of industrial machinery.
What's in the Box
- 2 x Primelux PX0724 2.8" LED Work Lights
- 2 x Adjustable 304 Stainless Steel Bottom Brackets
- 2 x Set of Mounting Hardware (Bolts & Nuts)
| Technical Specifications | |
|---|---|
SKU |
|
Model |
|
Size |
|
LED Chips |
|
Power Consumption |
|
Current Draw |
|
Operating Voltage |
|
Raw Lumens |
|
Effective Lumens |
|
Peak Intensity |
|
Center Lux @10 m |
|
Beam Distance @1 Lux |
|
Beam Pattern |
|
Beam Angle |
|
Field Angle |
|
Color Temperature |
|
IP Rating |
|
Operating Temperature |
|
EMC |
|
Compliance |
|
Material |
|
Lens Material |
|
Dimensions |
|
Height (Including Bracket) |
|
Weight |
|
Connector Type |
|
