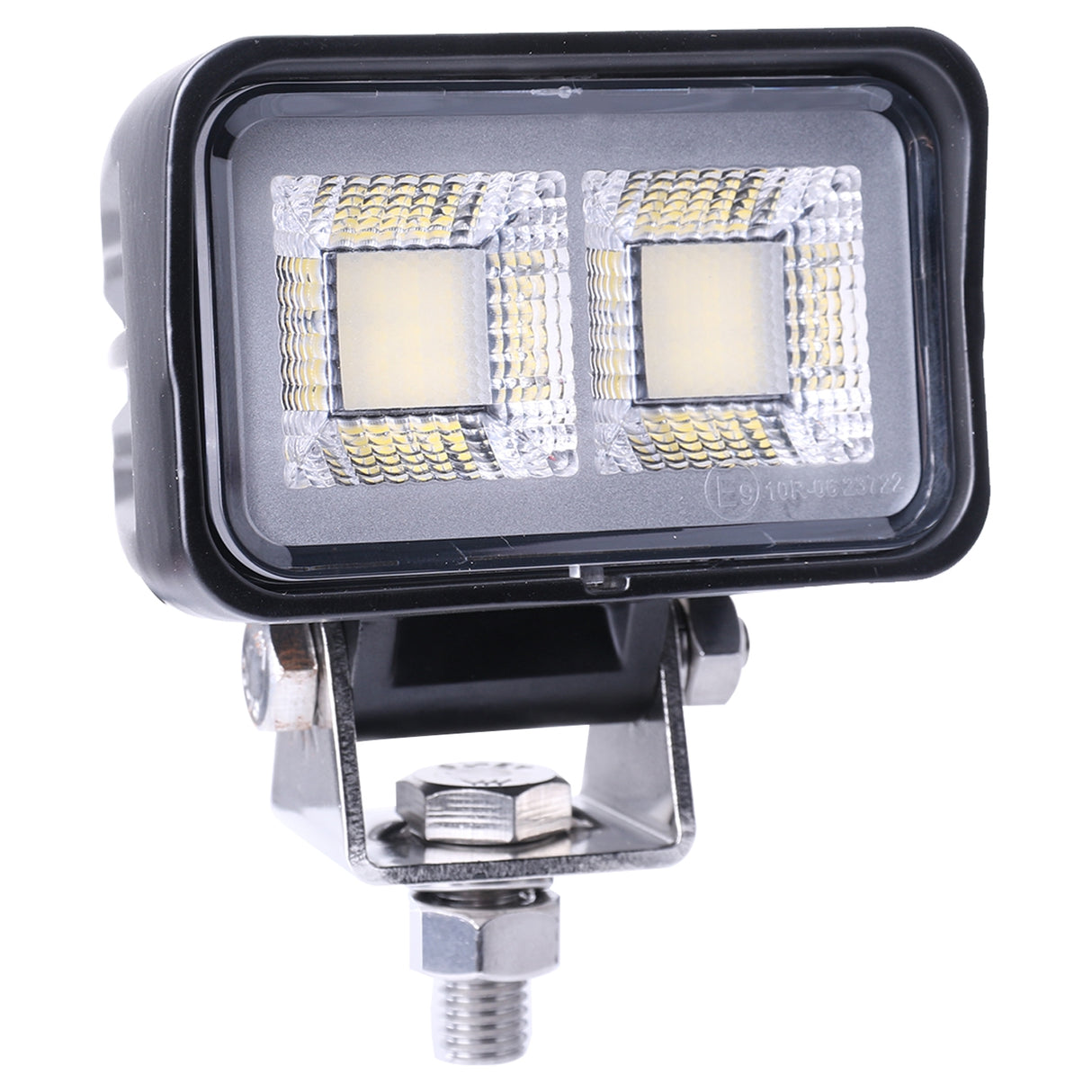

PrimeLux PX1140 3.4" Rectangular LED Work Light
2,866 Eff. LM | 114° Wide Field | IP68 / IP69K

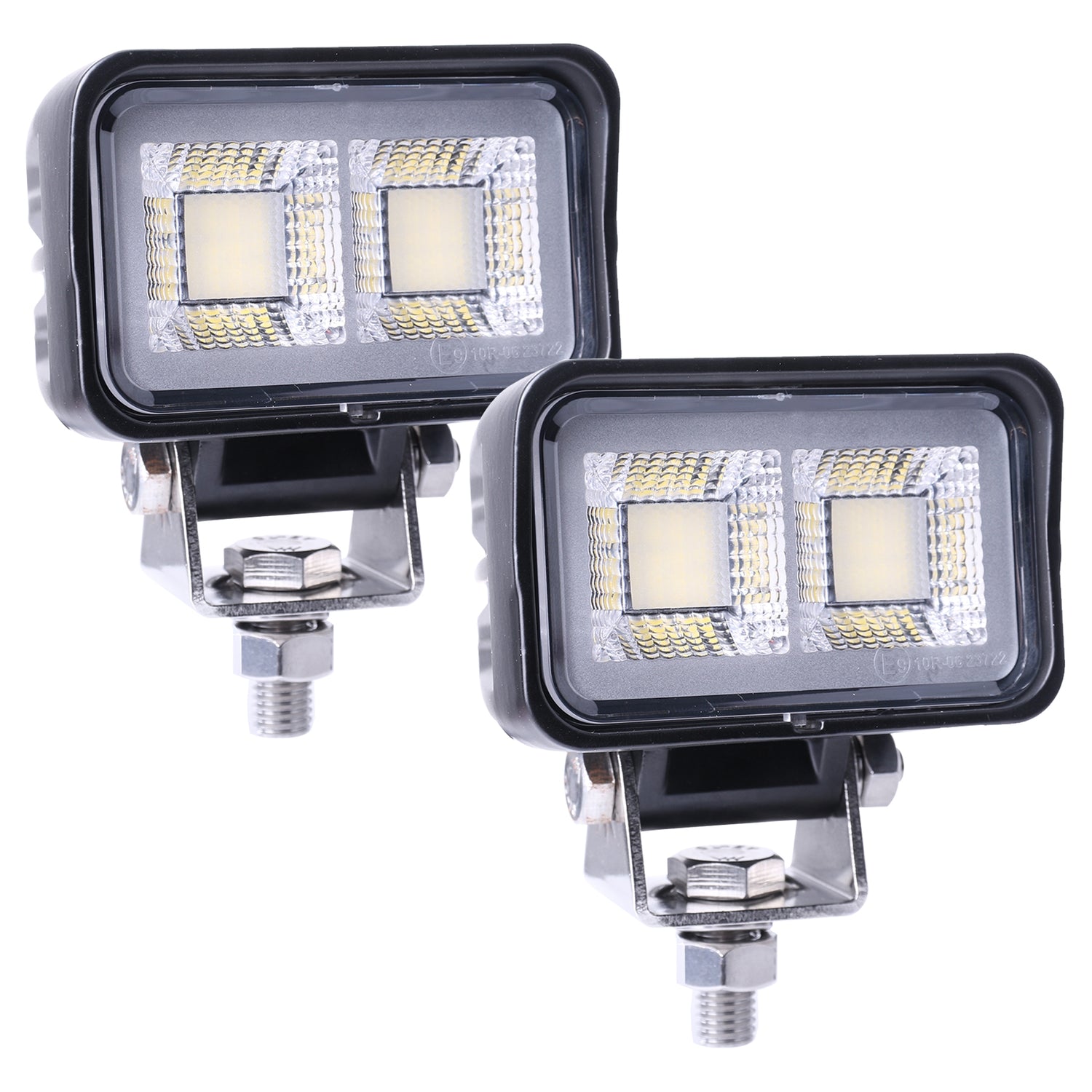

PrimeLux PX1140 3.4" Rectangular LED Work Light - Pair (2 Lights) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Engineered for professional-grade industrial and agricultural applications, the Primelux PX1140 delivers high-intensity illumination in a versatile 3.4-inch rectangular form factor. Drawing a verified 31.83 watts per pod to produce 2,866.1 effective lumens, these lights utilize precision optics to project a wide, controlled beam designed for both clarity and operator comfort.
- Precision "Light Blade" Optics: Featuring a meticulously engineered 114° (H) × 54° (V) Field Angle, the lens shapes the light into a broad, flat "blade." This maximizes visibility across your work area while effectively cutting off upper-level glare to prevent blinding operators or reflecting off equipment hoods.
- Verified 147ft (45m) Reach: Despite its generous flood pattern, the PX1140 maintains a concentrated 1,770 cd peak intensity. This ensures a validated 45-meter effective range (at 1.0 lux), allowing for safer operation during night-time maneuvers.
- Industrial-Grade Resilience: Boasts a dual IP68 and IP69K rating. The sealed die-cast aluminum housing is built to survive complete submersion, heavy mud, and high-pressure steam cleaning in the most punishing work environments.
- Zero Radio Interference: Fully compliant with ECE R10 standards. The advanced integrated EMC circuitry guarantees that your vehicle's GPS, two-way radios, and sensitive onboard electronics function without any electromagnetic static.
- Built to Endure: Equipped with a rugged, UV-resistant polycarbonate (PC) lens and heavy-duty 304 stainless steel brackets, designed to withstand the persistent vibrations and mechanical stress of heavy-duty machinery.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX1140 |
| Theoretical Power | 40W |
| Actual Power | 31.83W |
| Raw Lumens | 3,600 lm |
| Effective Lumens | 2,866 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 2.36A @ 13.5V |
| Peak Intensity | 1,770 cd |
| Effective Range | 45 m / 147 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 54° (H) × 27° (V) |
| Field Angle (10% cd) | 114° (H) × 54° (V) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | ECE R10 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

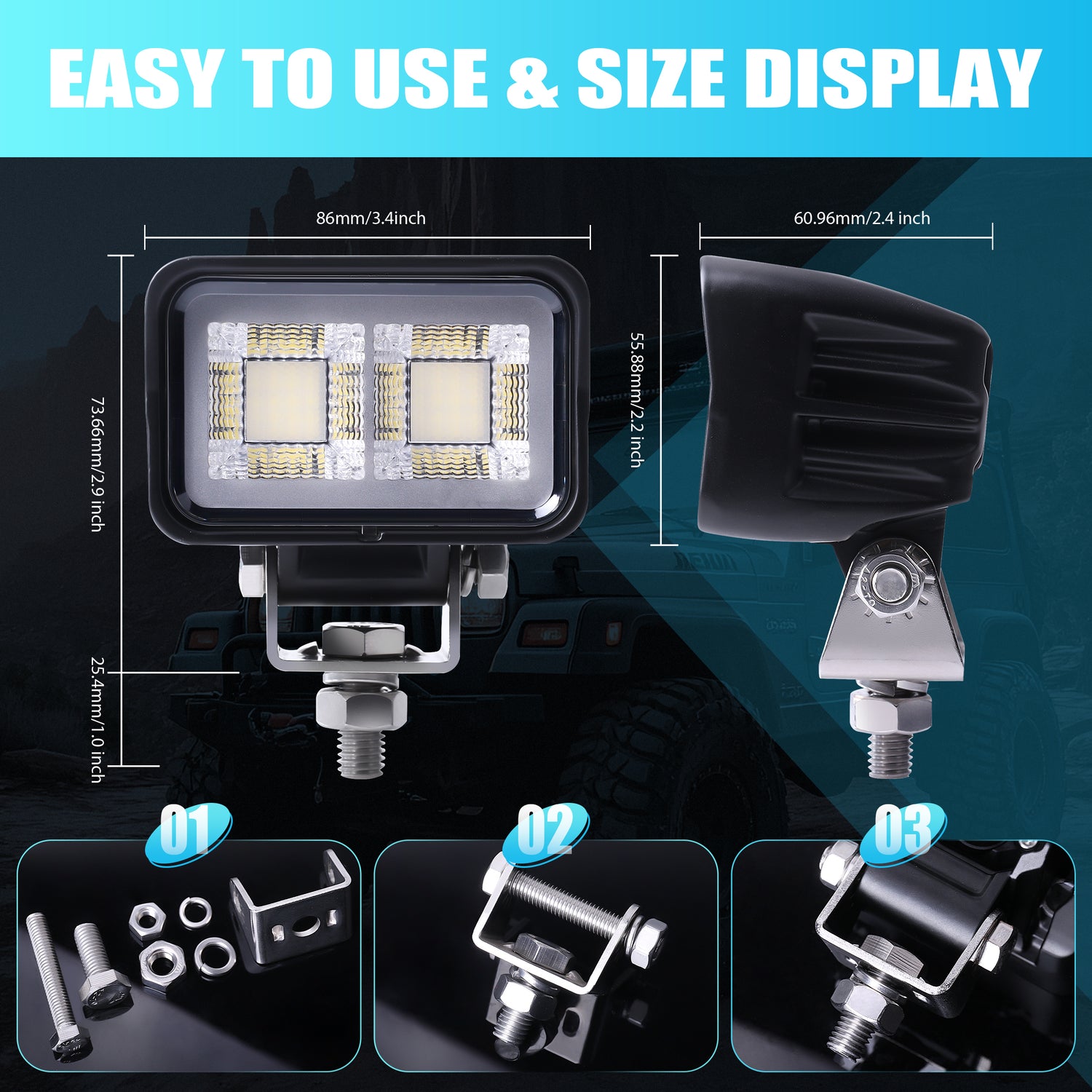

| Dimensions | 3.4" W x 2.4" D x 2.2" H (86 x 60 x 56 mm) |
| Height (Including Bracket) | 2.9" H (73.66 mm) |
What's in the Box
- 1x Primelux PX1140 3.4" LED Work Light
- 1x Adjustable 304 Stainless Steel Bottom Brackets
- 1x Set of Mounting Hardware (Bolts & Nuts)
