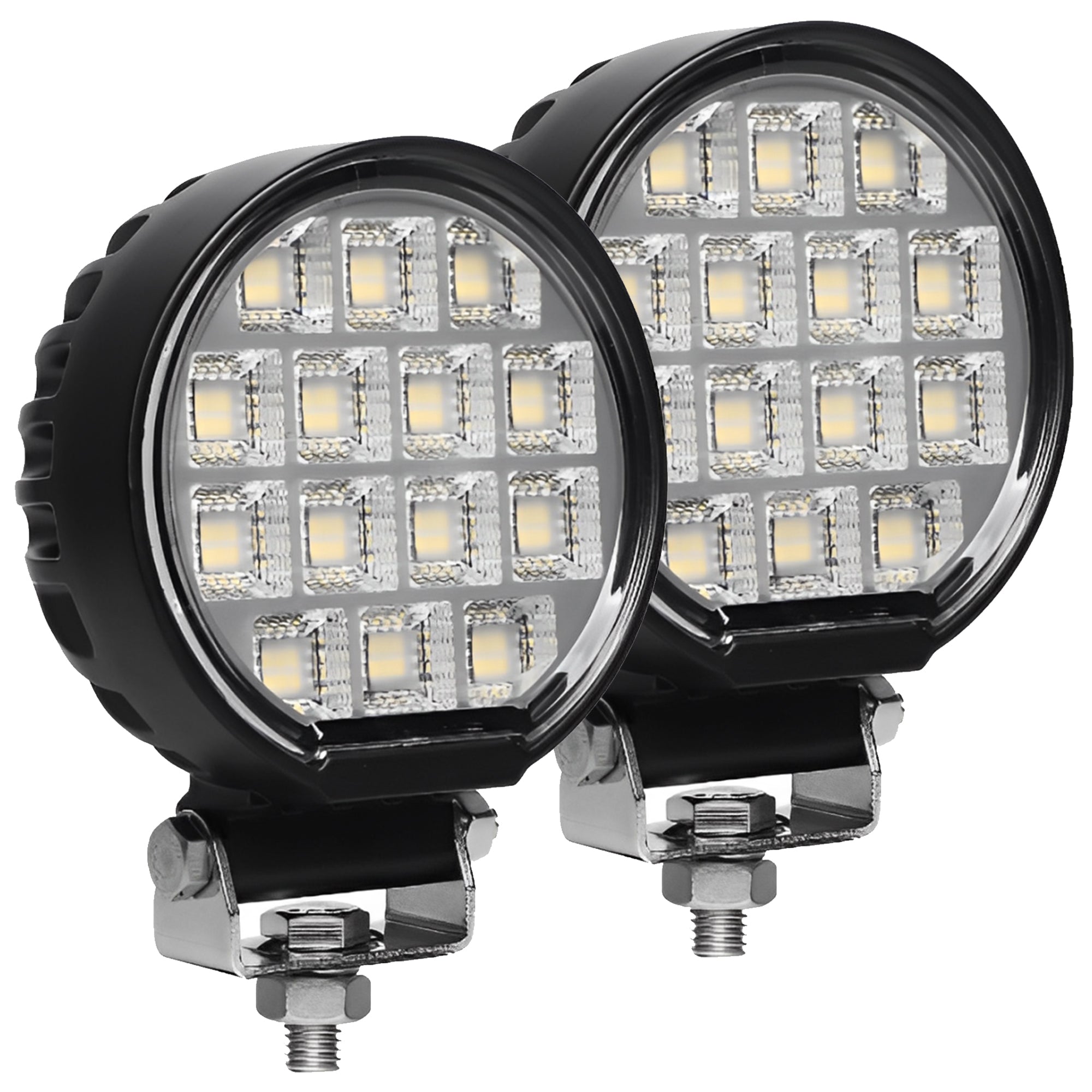

Primelux PX1684 4.6" Round LED Work Light (Pair)
10,465 Effective Lumens / Pair | 160° Ultra-Wide Field | IP68
Primelux PX1684 4.6" Round LED Work Light (Pair) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
The Primelux PX1684 is a 4.6-inch round LED work light pair built for high-output, wide-area flood illumination on heavy equipment and work vehicles. Each light produces 5,232.4 effective lumens, with a 160° × 57° field angle and 50 m / 164 ft beam distance at 1 lux.
Each light draws 64.65W on a 10–30V DC system and features an IP68-rated die-cast aluminum housing, UV-resistant polycarbonate lens, 201 stainless steel bracket, and ECE R10 EMC compliance.
Features
- 10,465 Effective Lumens per Pair — Delivers 5,232.4 effective lumens from each 4.6-inch round work light.
- Ultra-Wide Flood Coverage — 160° × 57° field angle provides expansive illumination around equipment.
- 50 m Beam Distance per Light — Maintains 1 lux at 50 m / 164 ft.
- 10–30V DC Compatibility — Designed for both 12V and 24V electrical systems.
- IP68 Protection and ECE R10 EMC — Sealed for demanding outdoor use with automotive EMC compliance.
- Heavy-Duty Construction — Die-cast aluminum housing, UV-resistant polycarbonate lens, and 201 stainless steel bracket.
What's in the Box
- 2 x Primelux PX1684 4.6" Round LED Work Lights
- 2 x Adjustable 201 Stainless Steel Bottom Brackets
- 2 x Set of Mounting Hardware (Bolts & Nuts)
| Technical Specifications | |
|---|---|
SKU |
|
Model |
|
Size |
|
LED Chips |
|
Power Consumption |
|
Current Draw |
|
Operating Voltage |
|
Raw Lumens |
|
Effective Lumens |
|
Peak Intensity |
|
Center Lux @10 m |
|
Beam Distance @1 Lux |
|
Beam Pattern |
|
Beam Angle |
|
Field Angle |
|
Color Temperature |
|
IP Rating |
|
Operating Temperature |
|
EMC |
|
Compliance |
|
Material |
|
Lens Material |
|
Dimensions |
|
Height (Including Bracket) |
|
Weight |
|
Connector Type |
|
 | |
|---|---|
SKU |
|
Model |
|
Size |
|
LED Chips |
|
Power Consumption |
|
Current Draw |
|
Operating Voltage |
|
Raw Lumens |
|
Effective Lumens |
|
Peak Intensity |
|
Center Lux @10 m |
|
Beam Distance @1 Lux |
|
Beam Pattern |
|
Beam Angle |
|
Field Angle |
|
Color Temperature |
|
IP Rating |
|
Operating Temperature |
|
EMC |
|
Compliance |
|
Material |
|
Lens Material |
|
Dimensions |
|
Height (Including Bracket) |
|
Weight |
|
Connector Type |
|
