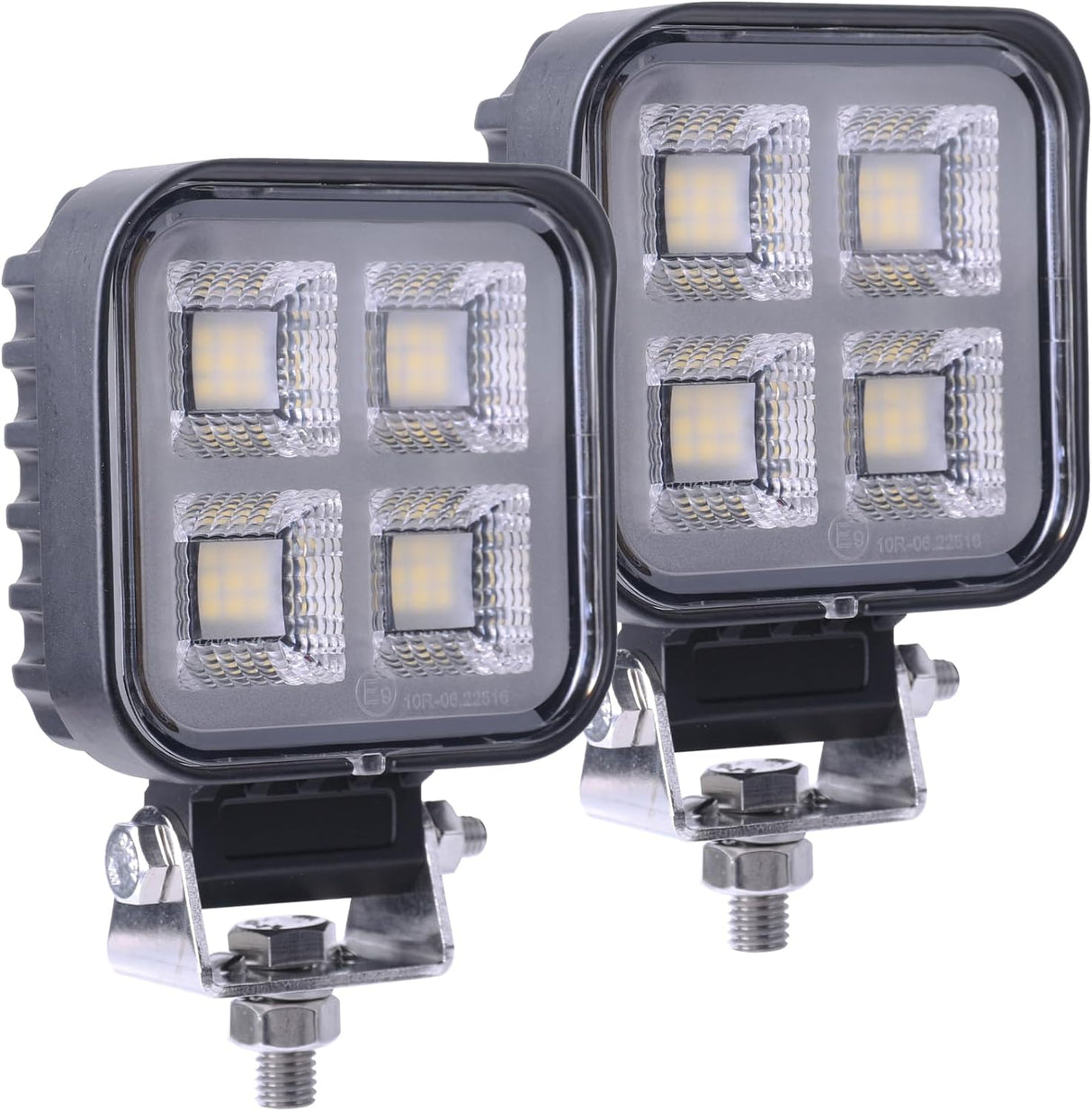

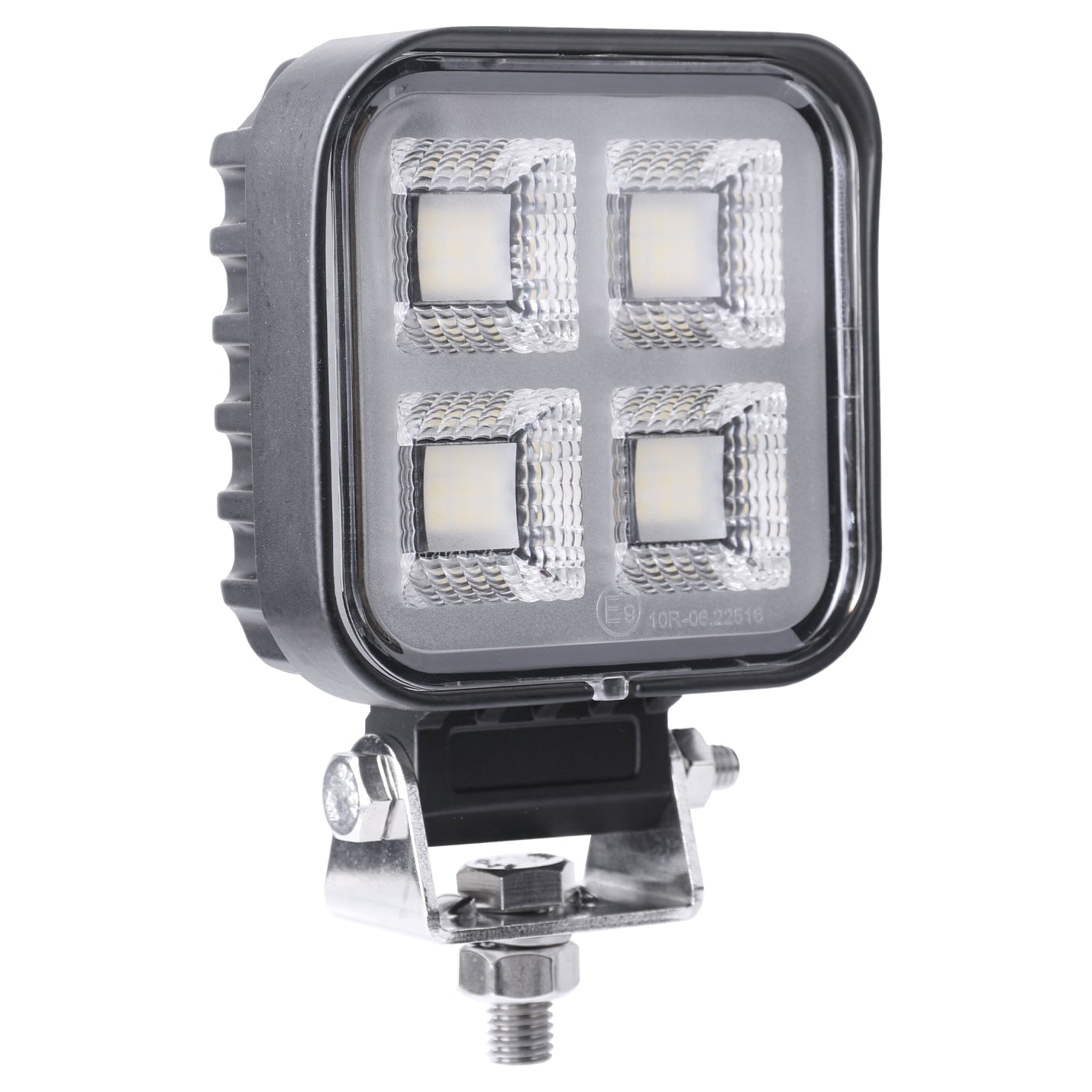

Primelux PX1736 3" Square LED Work Light
2,325 Eff. LM | 136° Wide Field | IP68 / IP69K
Primelux PX1736 3" Square LED Work Light - Pair (2 Lights) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Designed for versatile and efficient near-field illumination, the Primelux PX1736 delivers professional-grade performance in a compact 3-inch housing. Pulling a verified 24.17 watts per pod to produce 2,325 effective lumens, these square lights utilize precision optics to project a broad 136° horizontal spread, ensuring exceptional peripheral visibility for a wide range of work environments.
Features
- Precision "Light Blade" Optics: Featuring a meticulously engineered 136° (H) × 54° (V) Field Angle, the lens shapes the light into a wide, controlled beam. This maximizes ground coverage while vertically compressing the light to eliminate hood glare and prevent blinding oncoming operators.
- Verified 115ft (35m) Reach: Optimized for near-to-mid-field tasks, the PX1736 maintains a robust 1,148.5 cd peak intensity. This translates to a validated 35-meter effective range (at 1.0 lux), providing the steady, reliable clarity needed for safe night-time maneuvers.

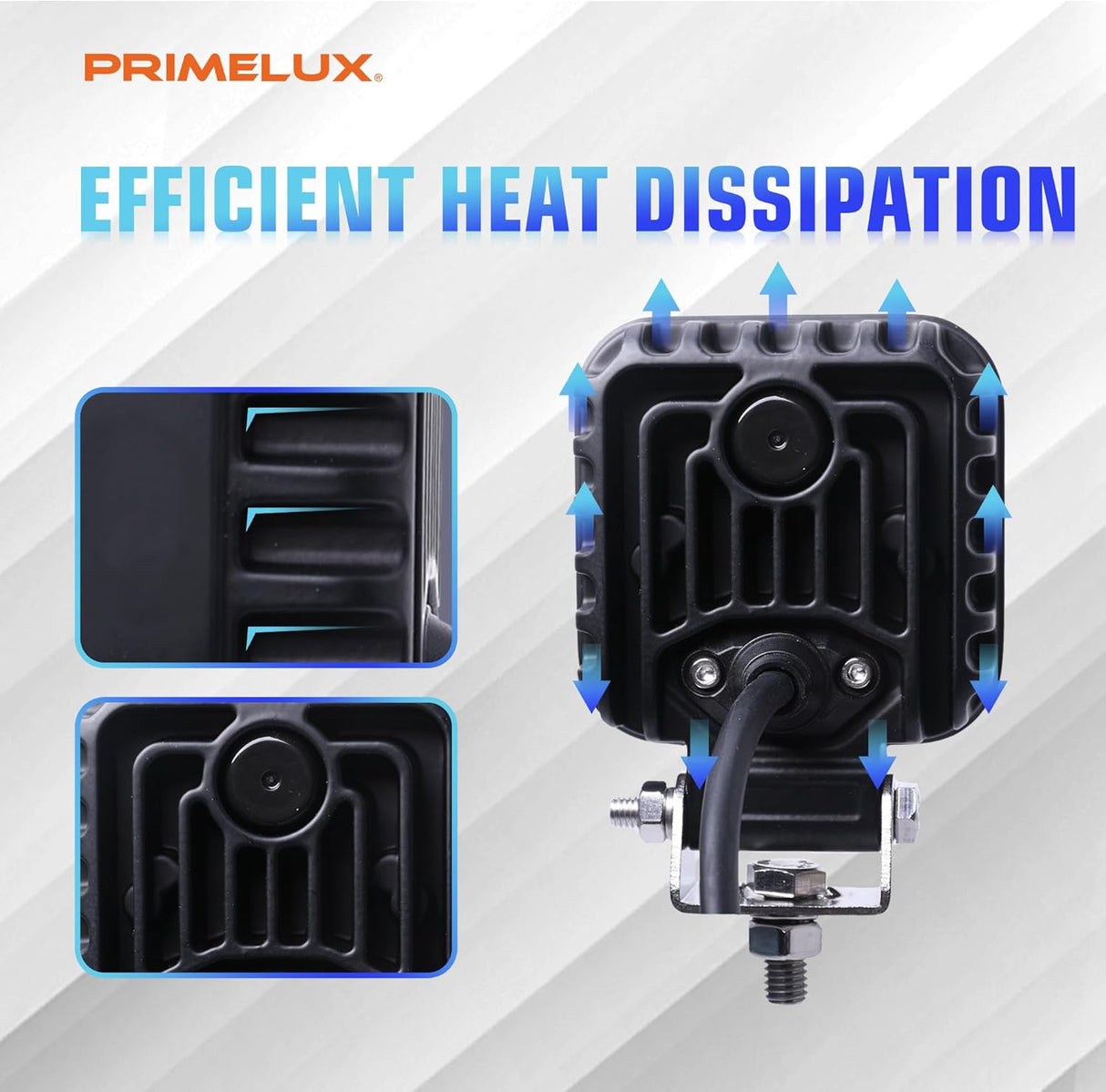

- Extreme Weather Resilience: Rated at a dual IP68 and IP69K. The fully sealed die-cast aluminum housing is built to endure total submersion, heavy debris, and high-pressure, high-temperature steam washdowns in harsh working conditions.
- Zero Radio Interference: Fully compliant with ECE R10 standards. The advanced integrated EMC circuitry guarantees that your vehicle's GPS, two-way radios, and sensitive onboard electronics operate without electromagnetic interference.
- Built to Endure: Equipped with a rugged, UV-resistant polycarbonate (PC) lens and secured by heavy-duty 304 stainless steel brackets, these lights are designed to withstand the persistent vibrations of industrial and agricultural machinery.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX1736 |
| Theoretical Power | - |
| Actual Power | 24.17W |
| Raw Lumens | - |
| Effective Lumens | 2,325 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 1.79A @ 13.5V |
| Peak Intensity | 1,149 cd |
| Effective Range | 35 m / 115 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 84° (H) × 27° (V) |
| Field Angle (10% cd) | 136° (H) × 54° (V) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | ECE R10 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

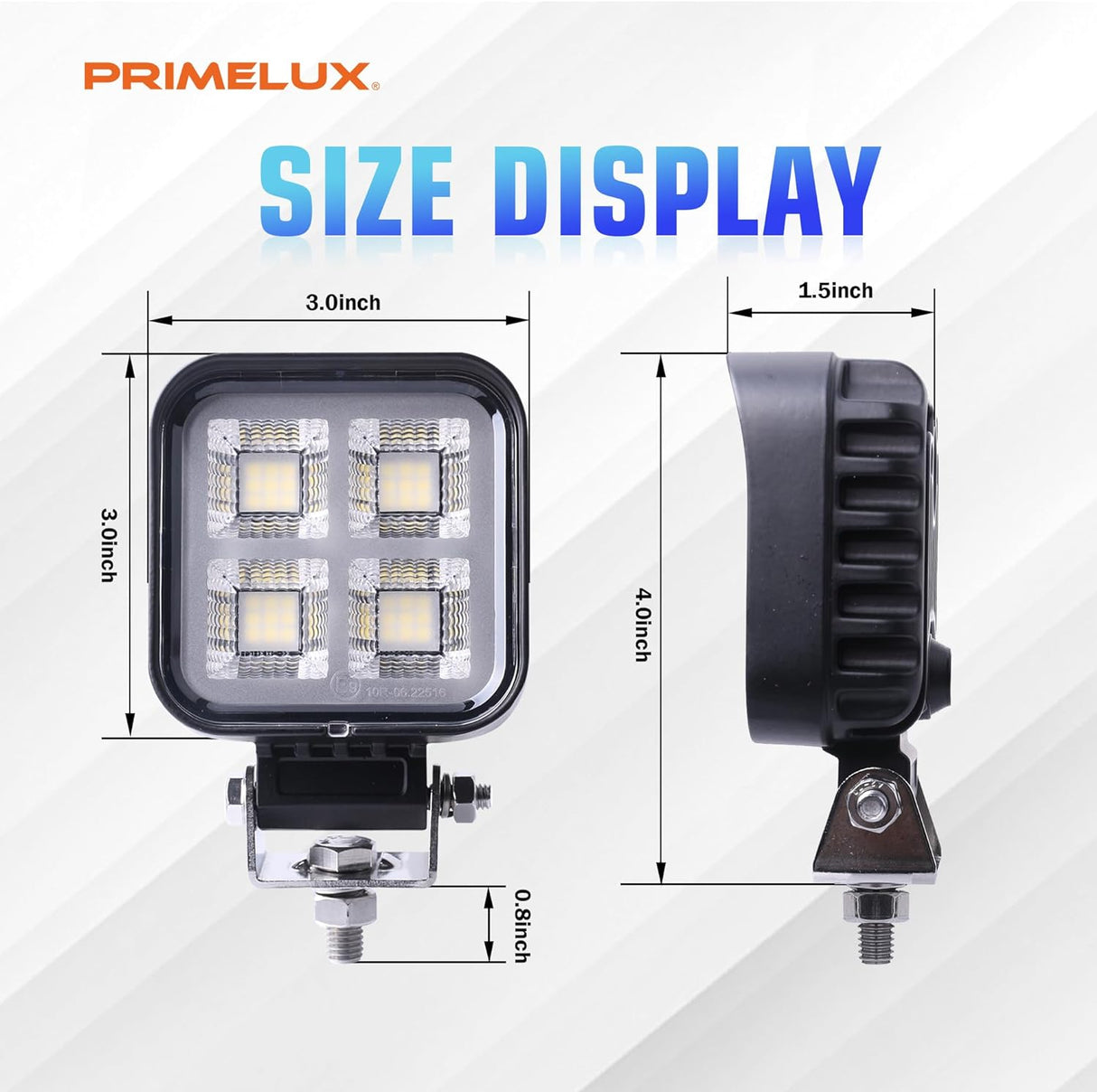

| Dimensions | 3" W x 1.7" D x 3" H (76 x 43 x 76 mm) |
| Height (Including Bracket) | 4.2" H (107 mm) |
What's in the Box
- 2x Primelux PX1736 3" LED Work Lights

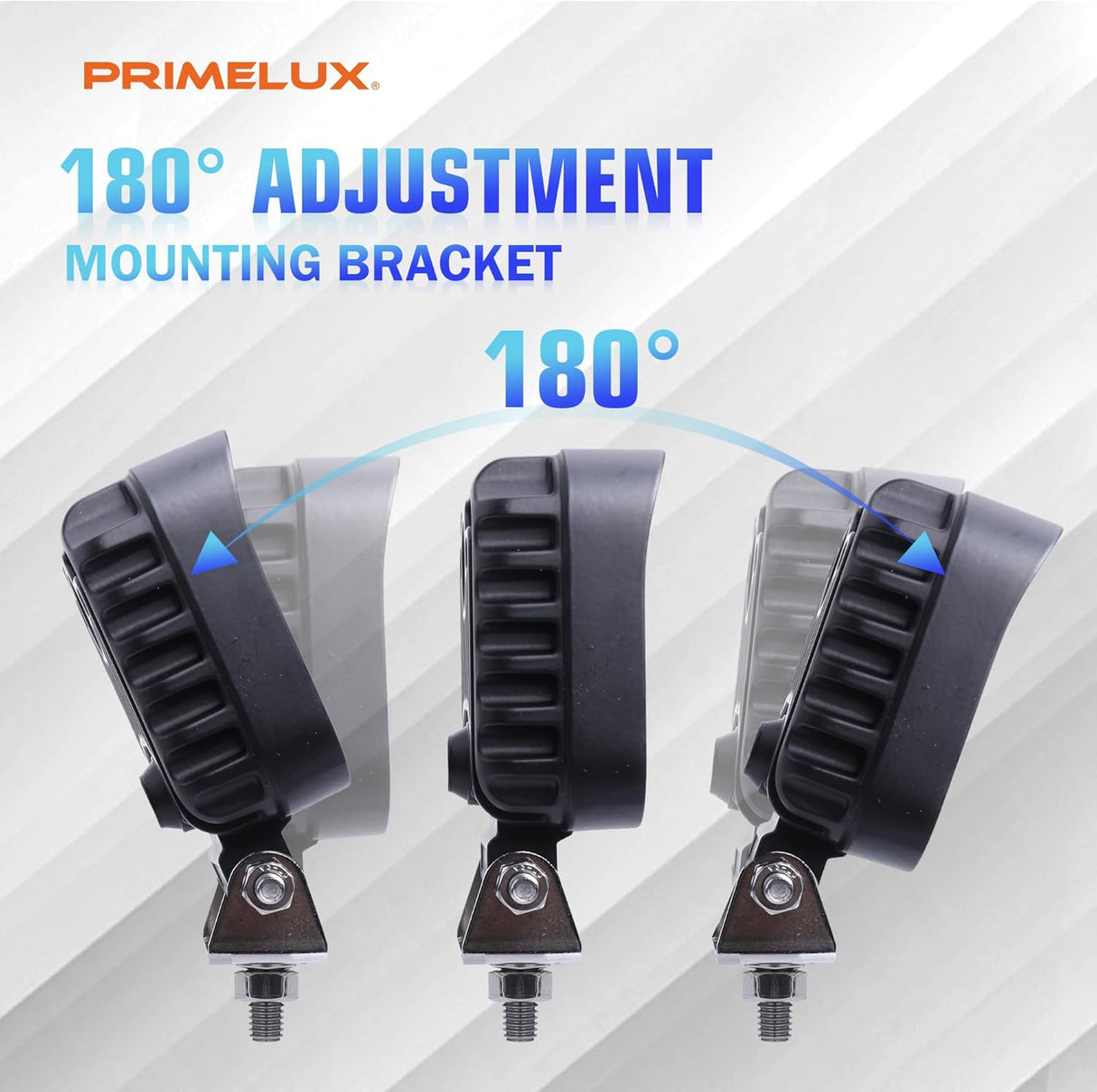

- 2x Adjustable 304 Stainless Steel Bottom Brackets

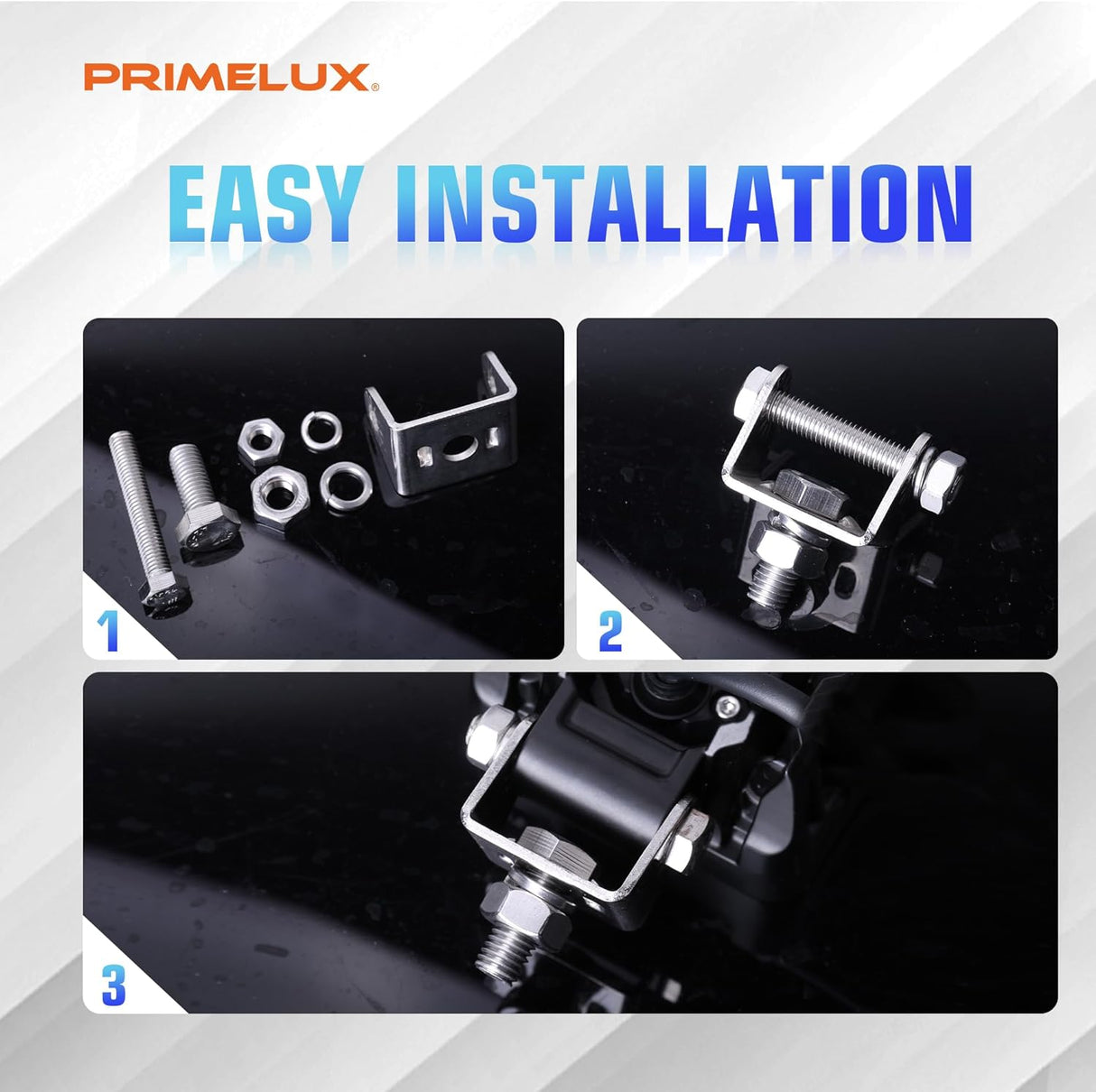

- 1x Set of Mounting Hardware (Bolts & Nuts)
