Primelux | SKU: 90519601

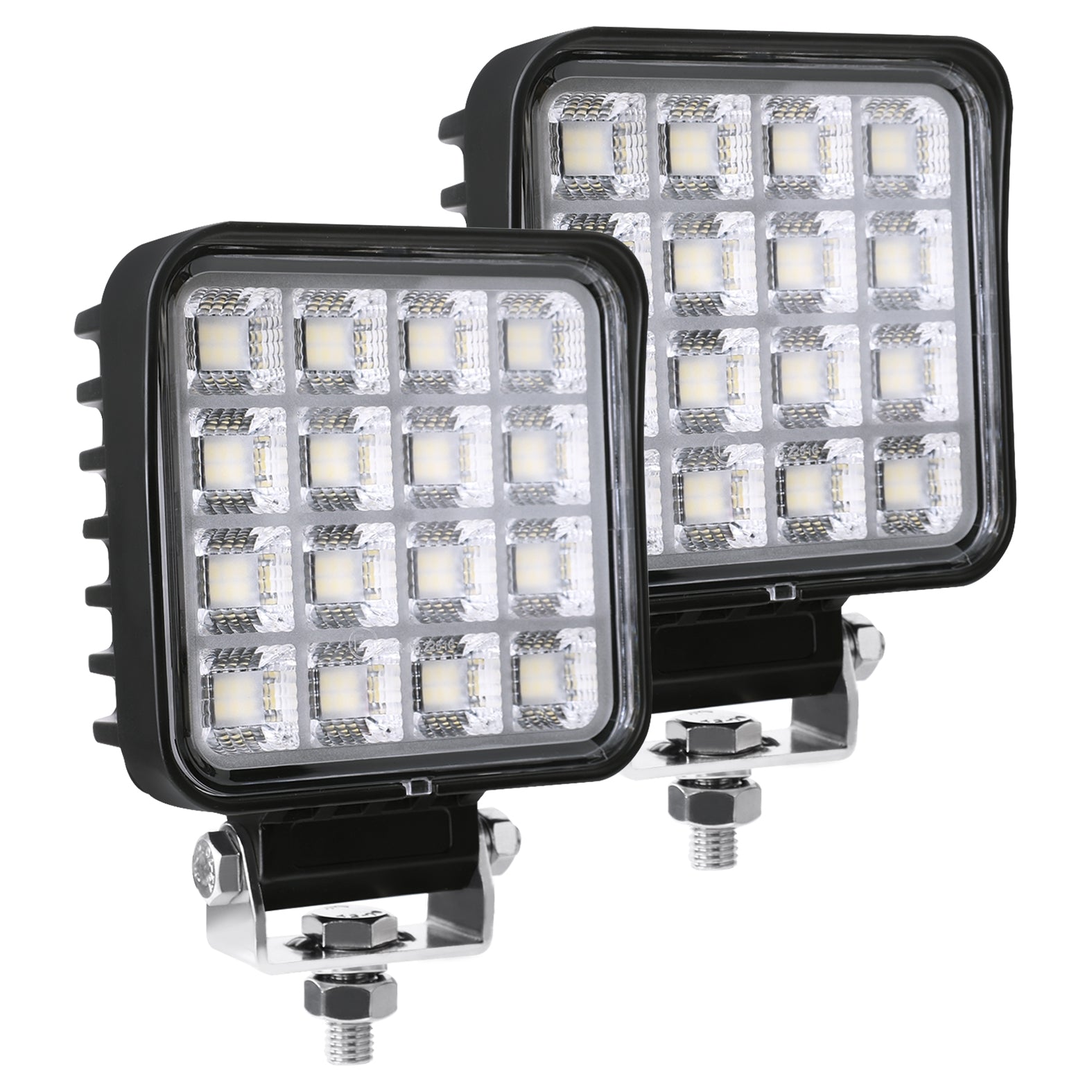

Primelux PX2096 4.3" Square LED Work Light (Pair)

Name: Primelux PX2096 4.3" Square LED Work Light (Pair)
Brand: Primelux
SKU: 90519601
Price: 84.99 USD
Availability: InStock

12,668 Effective Lumens / Pair | 160° Ultra-Wide Field | IP68

$84.99

Shipping calculated at checkout.

Free shipping on orders over $99 within USA

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

The Primelux PX2096 is a 4.3-inch square LED work light pair designed for high-output, wide-area flood illumination on agricultural, construction, and utility equipment. Each light produces 6,334.1 effective lumens, with a 160° × 57° field angle and 50 m / 164 ft beam distance at 1 lux.

Each light draws 69.59W on a 10–30V DC system and combines an IP68-rated die-cast aluminum housing, UV-resistant polycarbonate lens, 201 stainless steel bracket, and ECE R10 EMC compliance.

Features

12,668 Effective Lumens per Pair — Delivers 6,334.1 effective lumens from each 4.3-inch square work light.
Ultra-Wide Flood Coverage — 160° × 57° field angle provides expansive work-area illumination.
50 m Beam Distance per Light — Maintains 1 lux at 50 m / 164 ft.
10–30V DC Compatibility — Designed for both 12V and 24V electrical systems.
IP68 Protection and ECE R10 EMC — Sealed for demanding outdoor use with automotive EMC compliance.
Heavy-Duty Construction — Die-cast aluminum housing, UV-resistant polycarbonate lens, and 201 stainless steel bracket.

What's in the Box

2 x Primelux PX2096 4.3" LED Work Lights
2 x Adjustable 201 Stainless Steel Bottom Brackets
2 x Set of Mounting Hardware (Bolts & Nuts)

DISCLAIMER: Not all products are available in every region. Specifications, designs, and images are for reference only and may vary. Ongoing improvements may result in changes without notice. Details may not cover all versions, and some features are version-specific.

Technical Specifications
SKU	90519601
Model	PX2096
Size	4.3"
LED Chips	96PCS × 1W (OSRAM) (Each)
Power Consumption	69.59W (Each), 139.18W (Pair)
Current Draw	5.16A @ 13.5V (Each), 10.32A @ 13.5V (Pair)
Operating Voltage	10-30V DC (12/24V Compatible)
Raw Lumens	7000 lm (Each), 14000 lm (Pair)
Effective Lumens	6334.1 lm (Each), 12668.2 lm (Pair)
Peak Intensity	2635 cd (Each), 5270 cd (Pair)
Center Lux @10 m	26 lx (Each), 53 lx (Pair)
Beam Distance @1 Lux	50 m / 164 ft (Each), 71 m / 232 ft (Pair)
Beam Pattern	Flood Beam
Beam Angle	102° (H) × 36° (V)
Field Angle	160° (H) × 57° (V) (Extrapolated)
Color Temperature	5700K
IP Rating	IP68
Operating Temperature	-22°F to +149°F (-30°C to +65°C)
EMC	ECE R10
Compliance	CE, RoHs
Material	Die-cast Aluminum Housing; 201 Stainless Steel Bracket
Lens Material	UV-Resistant Polycarbonate (PC)
Dimensions	108 mm × 140 mm × 56 mm (4.3 in × 5.5 in × 2.2 in)
Height (Including Bracket)	140 mm (5.51 in)
Weight	746.4 g / 1.65 lb (Each)
Connector Type	No Connector (Pigtail Leads)

Show only differences	Primelux PX2096 4.3" Square LED Work Light (Pair)$84.99
SKU	90519601
Model	PX2096
Size	4.3"
LED Chips	96PCS × 1W (OSRAM) (Each)
Power Consumption	69.59W (Each), 139.18W (Pair)
Current Draw	5.16A @ 13.5V (Each), 10.32A @ 13.5V (Pair)
Operating Voltage	10-30V DC (12/24V Compatible)
Raw Lumens	7000 lm (Each), 14000 lm (Pair)
Effective Lumens	6334.1 lm (Each), 12668.2 lm (Pair)
Peak Intensity	2635 cd (Each), 5270 cd (Pair)
Center Lux @10 m	26 lx (Each), 53 lx (Pair)
Beam Distance @1 Lux	50 m / 164 ft (Each), 71 m / 232 ft (Pair)
Beam Pattern	Flood Beam
Beam Angle	102° (H) × 36° (V)
Field Angle	160° (H) × 57° (V) (Extrapolated)
Color Temperature	5700K
IP Rating	IP68
Operating Temperature	-22°F to +149°F (-30°C to +65°C)
EMC	ECE R10
Compliance	CE, RoHs
Material	Die-cast Aluminum Housing; 201 Stainless Steel Bracket
Lens Material	UV-Resistant Polycarbonate (PC)
Dimensions	108 mm × 140 mm × 56 mm (4.3 in × 5.5 in × 2.2 in)
Height (Including Bracket)	140 mm (5.51 in)
Weight	746.4 g / 1.65 lb (Each)
Connector Type	No Connector (Pigtail Leads)
