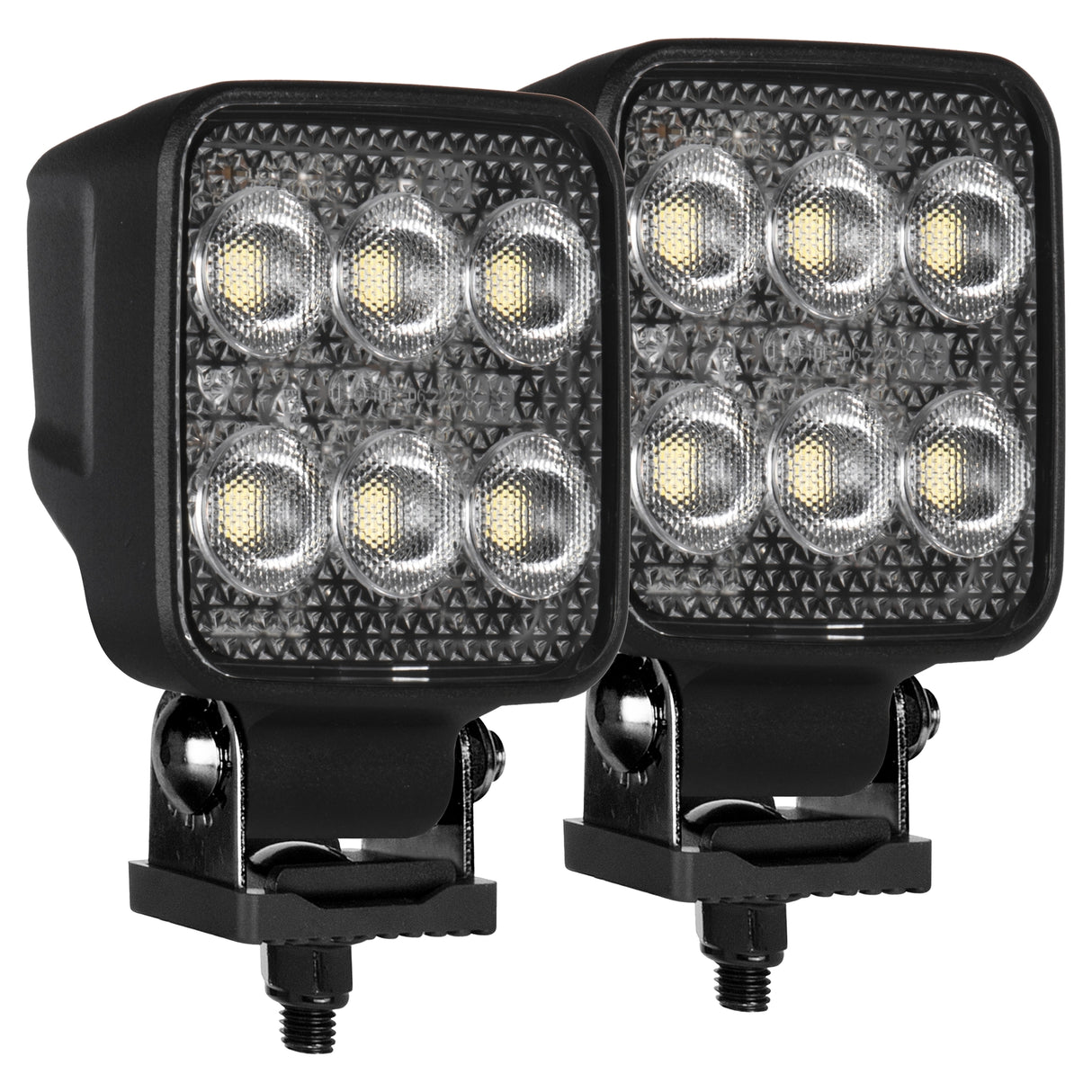

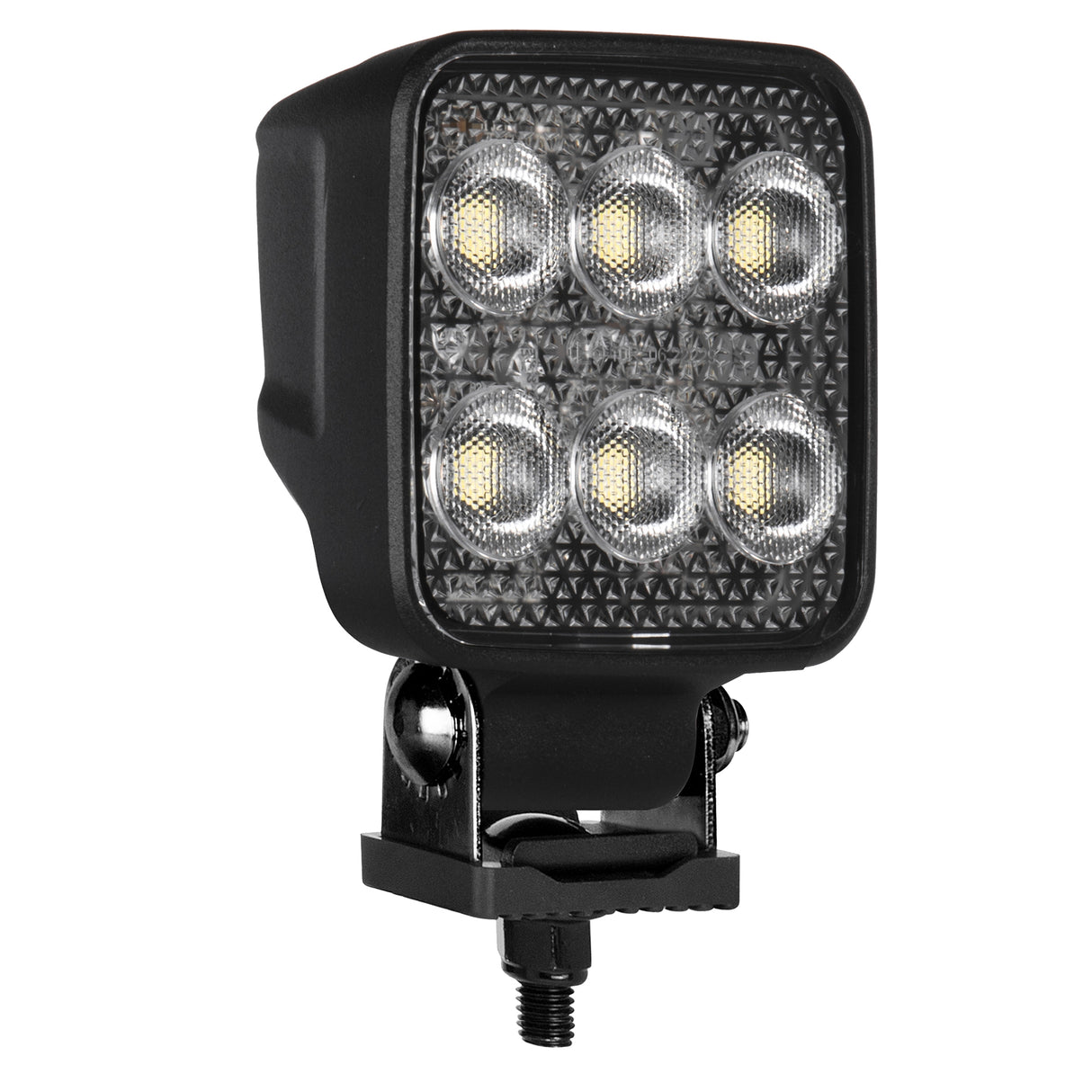

Primelux PX2224 3.3" Square LED Work Light
3,226 Eff. LM | 150° Ultra-Wide Field | CISPR 25 Class 3
Primelux PX2224 3.3" Square LED Work Light - Pair (2 Lights) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Master your surroundings with the ultimate panoramic light blade. Engineered for demanding agricultural and industrial environments, the PrimeLux PX2224 strikes the perfect balance between wide-area coverage and forward penetration. Pulling 27.30 watts to generate 3,226 effective lumens per pod, these compact 3.3-inch lights utilize precision optics to project a massive 150° horizontal light wall with a validated 35-meter effective range.
Features

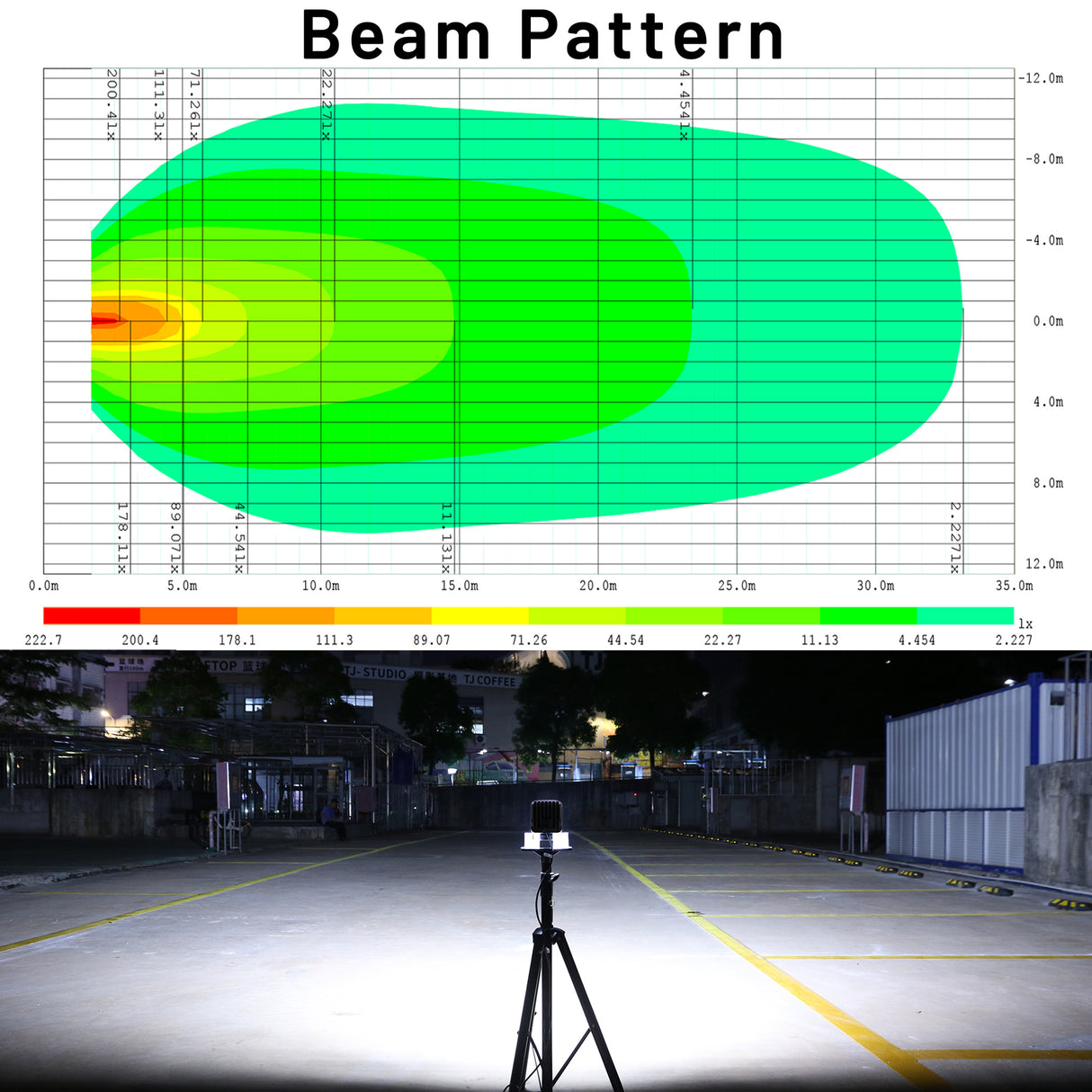

- Panoramic "Light Blade" Optics: Delivers a refined 150°(H) × 54°(V) field angle to eliminate peripheral blind spots while actively preventing operator hood glare.
- Proven 35-Meter Effective Range: Engineered optics maintain a robust 2,510 cd peak intensity, pushing 1.0 lx of usable light up to 35 meters down the worksite.
- Dual IP68 & IP69K Resilience: Fully sealed die-cast aluminum housing provides absolute protection against total underwater submersion and high-pressure steam washdowns.
- Certified CISPR 25 Class 3 EMC: Integrated circuitry ensures zero electromagnetic disruption to vehicle GPS, two-way radios, and sensitive onboard electronics.

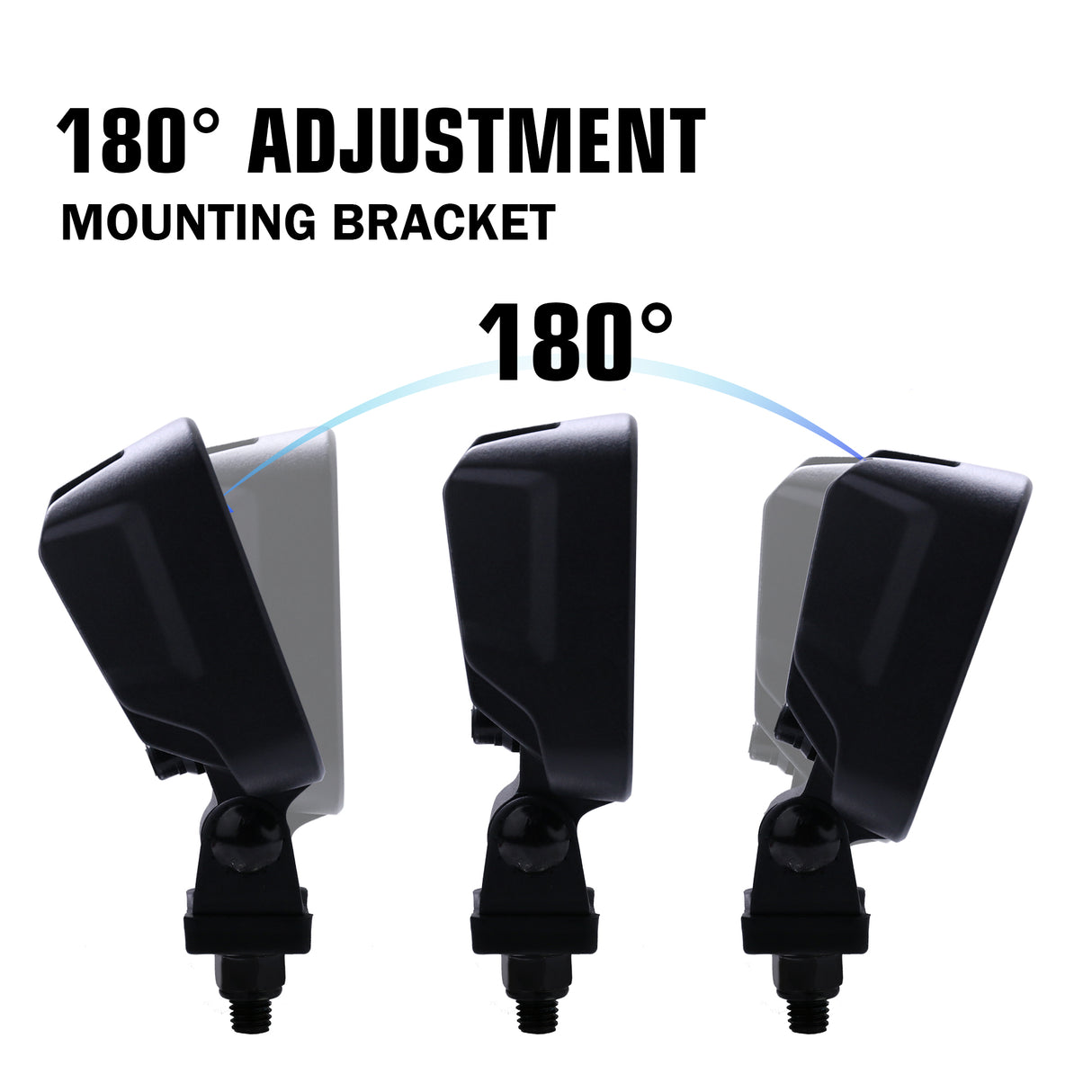

- Industrial-Grade Vibration Resistance: Features a UV-resistant polycarbonate lens and heavy-duty 304 stainless steel brackets built to endure the brutal vibrations of heavy machinery.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX2224 |
| Power Consumption | 27.30W |
| Raw Lumens | 3,640 lm |
| Effective Lumens | 3,226.3 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 2.02A @ 13.5V |
| Peak Intensity | 2,509.9 cd |
| Effective Range | 35 m / 115 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 90° (H) × 27° (V) |
| Field Angle (10% cd) | 150° (H) × 54° (V) (Extrapolated) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | CISPR 25 Class 3 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

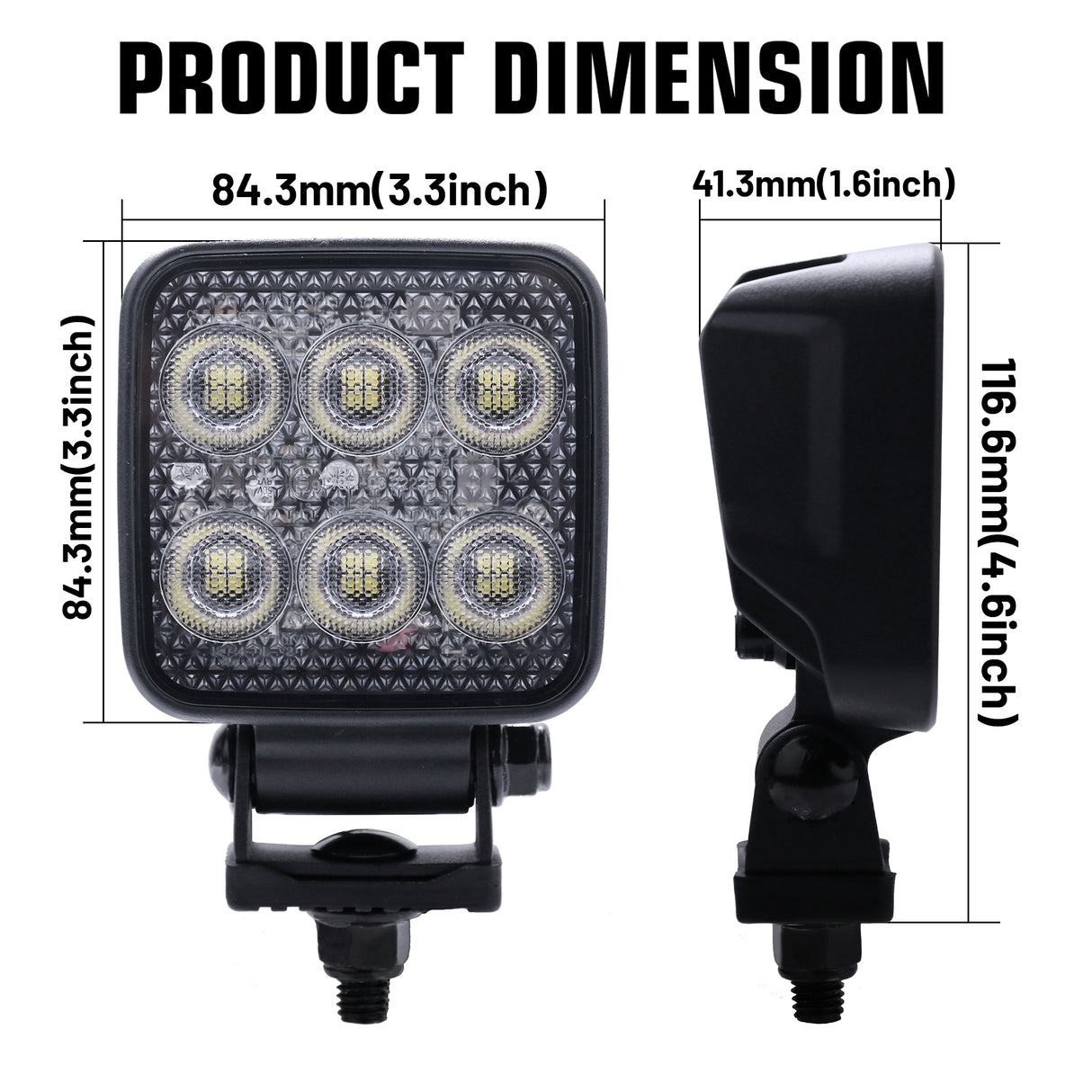

| Dimensions | 3.3" W x 1.6" D x 3.3" H (84.3 x 41.3 x 84.3 mm) |
| Height (Including Bracket) | 4.6" H (116.6 mm) |

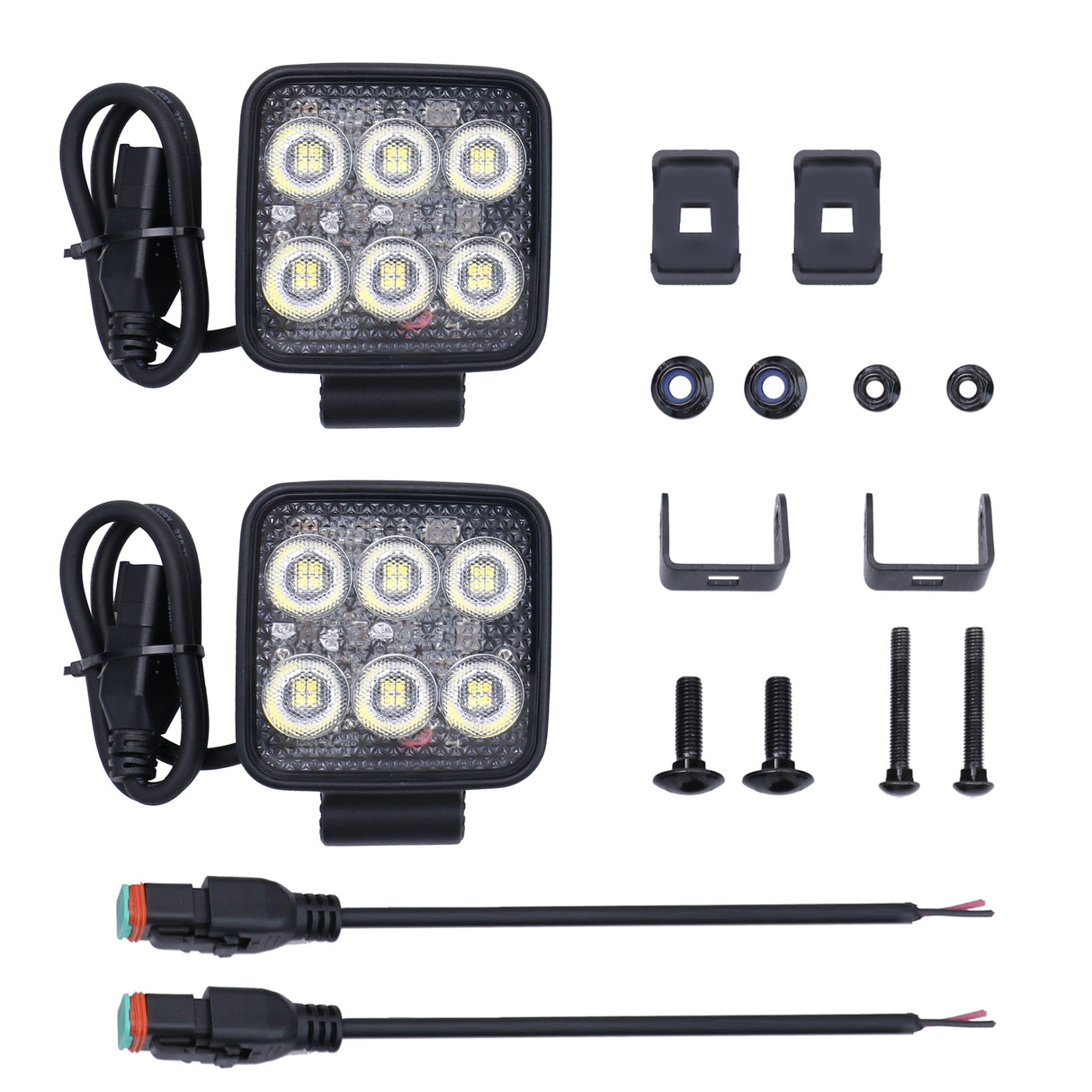

What's in the Box
- 1x Primelux PX2224 3.3" LED Work Lights
- 1x Adjustable 304 Stainless Steel Bottom Brackets
- 1x Set of Mounting Hardware (Bolts & Nuts)
