Primelux | SKU:
9801803

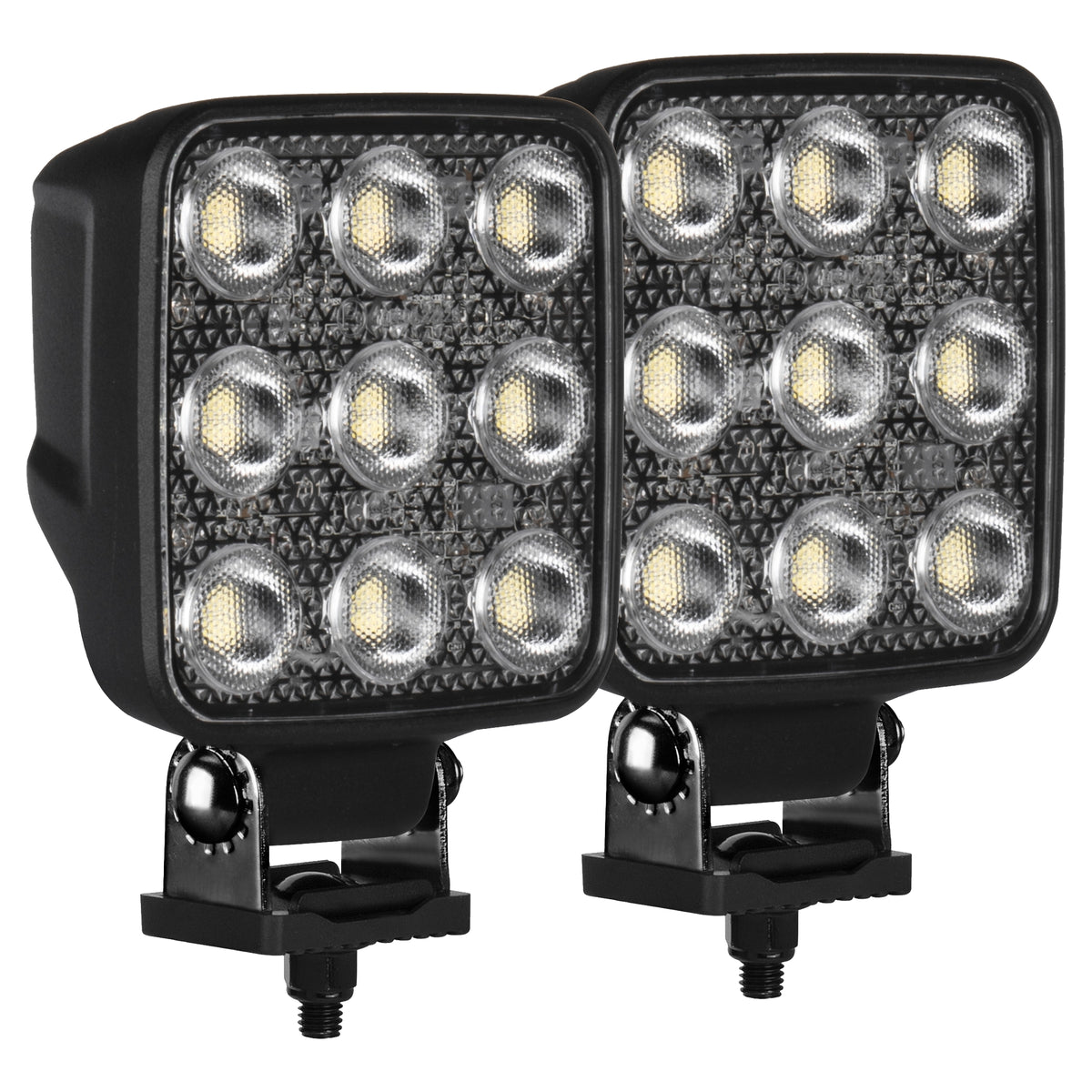

Primelux PX2336 4" Square LED Work Light (Pair)
8,401 Effective Lumens / Pair | 140° Wide Field | CISPR 25 Class 3
Regular price
$69.99
Unit price
Shipping calculated at checkout.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
Key Features
- 8,401 Effective Lumens per Pair — Delivers 4,200.3 effective lumens from each 4-inch work light.
- Wide Flood Coverage — 140° × 54° field angle provides broad illumination across the work area.
- 35 m Beam Distance per Light — Maintains 1 lux at 35 m / 115 ft.
- 10–30V DC Compatibility — Designed for both 12V and 24V electrical systems.
- IP68 Protection — Sealed against dust and water ingress for demanding outdoor installations.
- CISPR 25 Class 3 EMC — Helps control conducted and radiated electromagnetic emissions; built with a die-cast aluminum housing, polycarbonate lens, and 304 stainless steel bracket.
The Primelux PX2336 is a 4-inch square LED work light pair designed for high-output, broad flood illumination on agricultural, construction, and utility equipment. Each light produces 4,200.3 effective lumens with a 140° × 54° field angle and 35 m / 115 ft beam distance at 1 lux.
Each light draws 41.29W on a 10–30V DC system and features an IP68-rated die-cast aluminum housing, UV-resistant polycarbonate lens, 304 stainless steel bracket, and CISPR 25 Class 3 EMC compliance.
Specifications
Specifications
What's in the Box
What's in the Box
| General | |
|---|---|
SKU |
|
Model |
|
Size |
|
Unit Count |
|
| Mechanical | |
Height Including Bracket |
|
Unit Weight |
|
Material |
|
Lens Material |
|
| Electrical | |
Operating Voltage |
|
Unit Current Draw |
|
Unit Power Consumption |
|
Set Power Consumption |
|
Connector Type |
|
| Optical | |
LED Chips |
|
Beam Angle (50% cd) |
|
Beam Pattern |
|
Color Temperature |
|
Unit Raw Lumens |
|
Set Raw Lumens |
|
Unit Effective Lumens |
|
Set Effective Lumens |
|
Unit Peak Intensity |
|
Set Peak Intensity |
|
Unit Center Illuminance @ 10 m |
|
Set Center Illuminance @ 10 m |
|
Unit Beam Distance @ 1 Lux |
|
Set Beam Distance @ 1 Lux |
|
Unit Beam Distance @ 0.5 Lux |
|
Set Beam Distance @ 0.5 Lux |
|
Unit Beam Distance @ 0.25 Lux |
|
Set Beam Distance @ 0.25 Lux |
|
| Environmental & Compliance | |
Ingress Protection (IP Rating) |
|
Operating Temperature |
|
EMC Compliance |
|
Regulatory Compliance |
|
DISCLAIMER: Not all products are available in every region. Specifications, designs, and images are for reference only and may vary. Ongoing improvements may result in changes without notice. Details may not cover all versions, and some features are version-specific.
 | |
|---|---|
