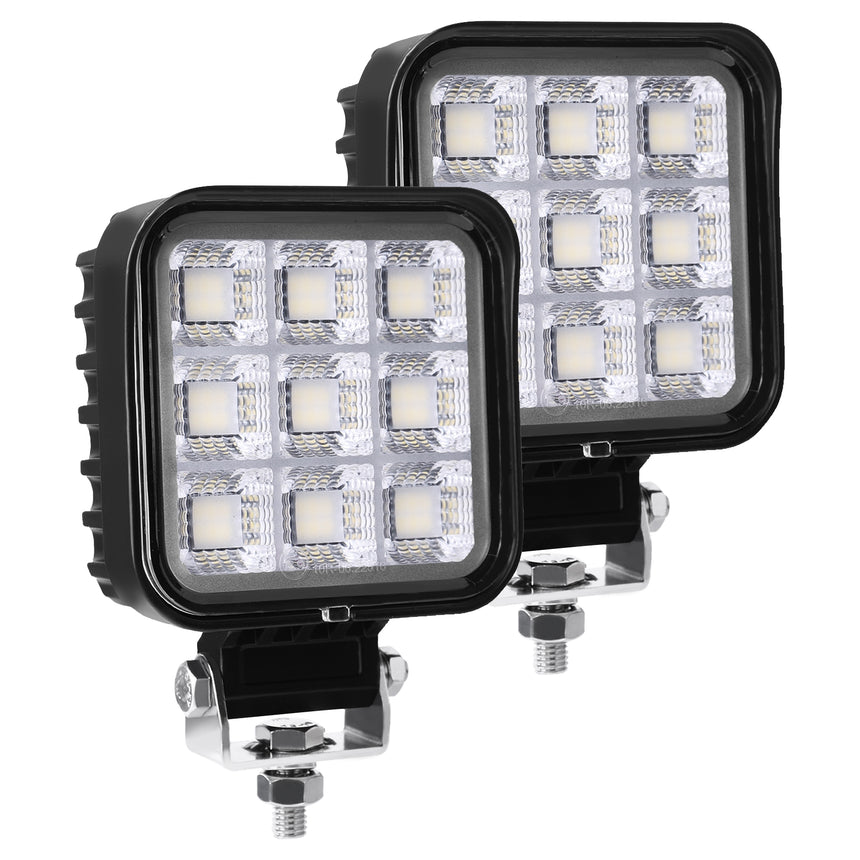

Primelux PX1854 3.3" Square LED Work Lights (Pair)
6,958 Eff. LM | 138° Wide Field | 1,403cd Peak
Primelux PX1854 3.3" Square LED Work Lights (Pair) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Engineered for heavy-duty agricultural, construction, and mining equipment, the Primelux PX1854 redefines near-field illumination. By pushing an actual 38.86 watts per pod, it delivers a massive 3,479.2 effective lumens. More importantly, its precision-engineered optics shape this raw power into a meticulously controlled 138° horizontal spread, ensuring unparalleled peripheral visibility without wasting light on the sky or the hood of your vehicle.
- The "Light Blade" Optical Control: Featuring a highly refined 138° (H) × 51° (V) Field Angle, the lens compresses the light beam vertically into a wide, flat "blade." This directs maximum luminous intensity precisely to your working ground while effectively eliminating operator hood glare.
- Heavy-Duty Output: Delivers a verified 6,958 effective lumens per pair with a 1,403.4 cd peak intensity, instantly cutting through darkness, dust, and fog within a 25-meter radius.
- Extreme Weather Resilience: Boasts a dual IP68 and IP69K rating. From full underwater submersion to high-pressure, high-temperature steam washdowns, the sealed die-cast aluminum housing remains impenetrable.
- Zero Electromagnetic Interference: Fully compliant with ECE R10 standards. The advanced integrated circuitry guarantees your GPS, two-way radios, and sensitive onboard electronics operate without a hint of static.
- Built to Endure: Features a nearly indestructible UV-resistant polycarbonate (PC) lens and is secured by heavy-duty 304 stainless steel brackets, designed to withstand the brutal vibrations of industrial worksites.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX1854 |
| Theoretical Power | - |
| Actual Power | 38.86W |
| Raw Lumens | - |
| Effective Lumens | 3,479 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 2.88A @ 13.5V |
| Peak Intensity | 1,403 cd |
| Effective Range | 25 m / 82 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 78° (H) × 27° (V) |
| Field Angle (10% cd) | 138° (H) × 51° (V) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | ECE R10 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

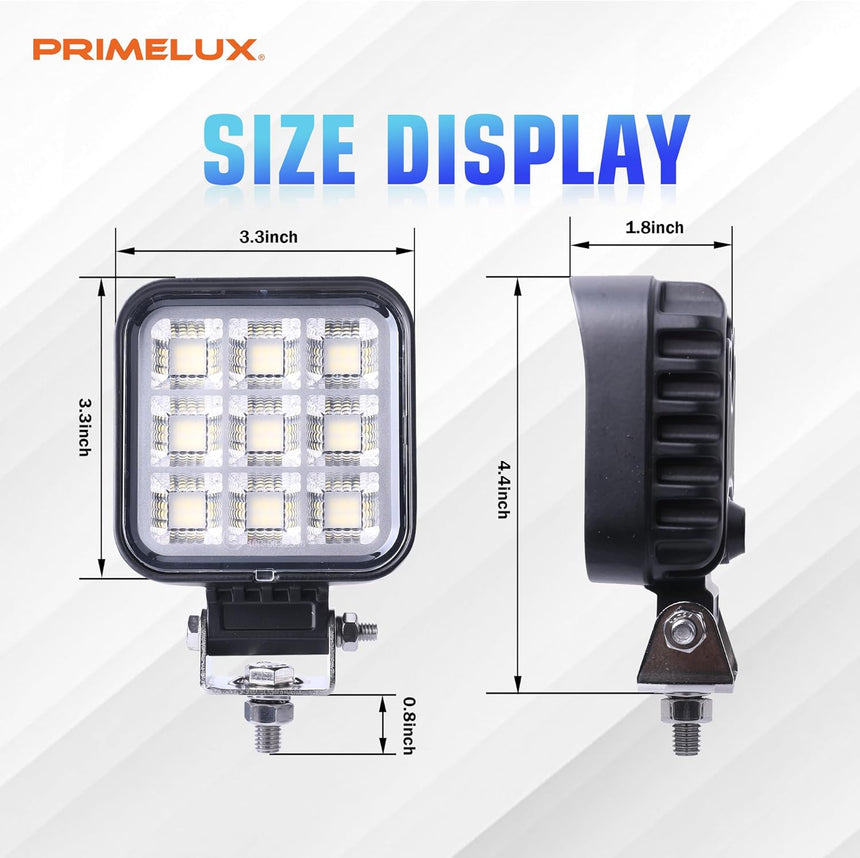

| Dimensions | 3.3" W x 1.8" D x 3.3" H (83.82 x 45.72 x 83.82 mm) |
| Height (Including Bracket) | 4.4" H (111.76 mm) |
What's in the Box
- 2x Primelux PX1854 3.3" LED Work Lights

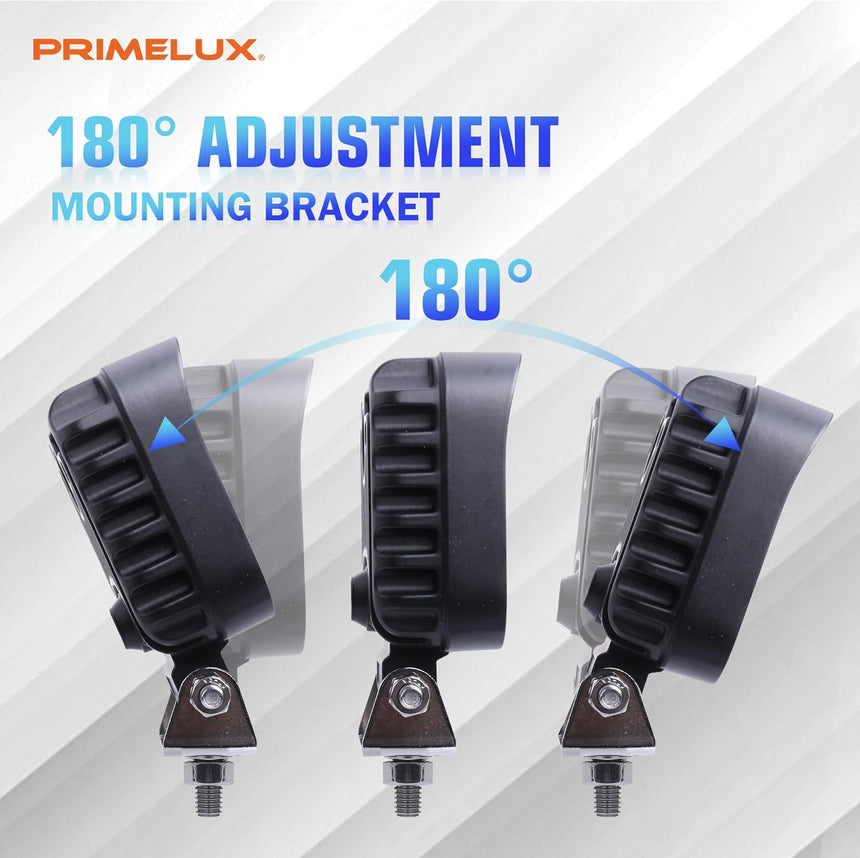

- 2x Adjustable 304 Stainless Steel Bottom Brackets

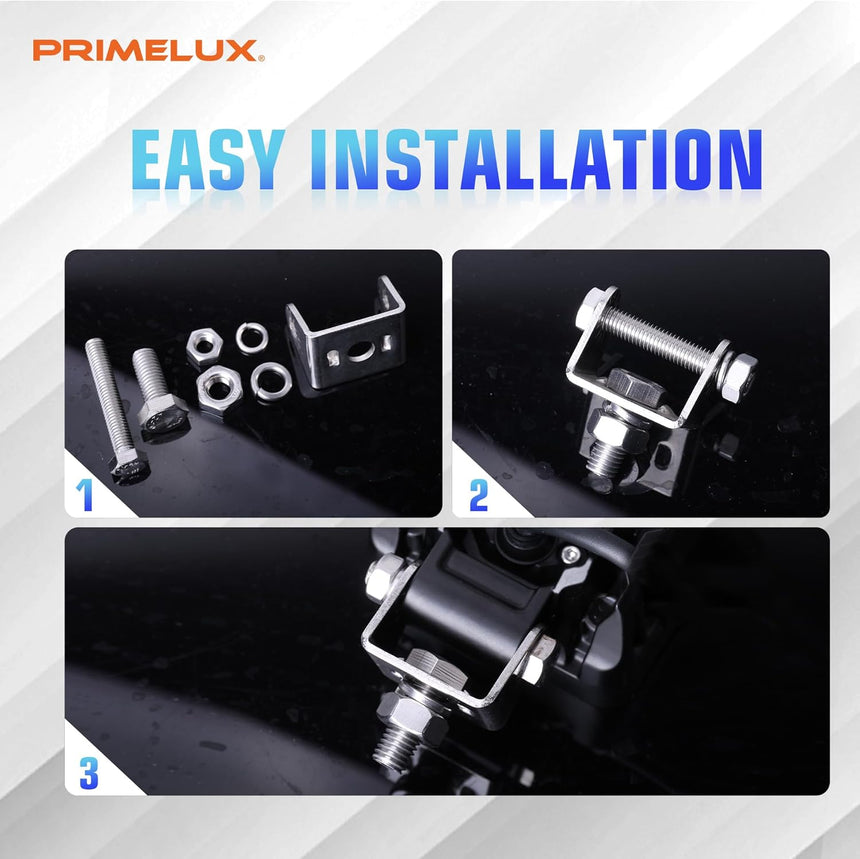

- 1x Set of Mounting Hardware (Bolts & Nuts)
