PrimeLux | SKU:
90525401

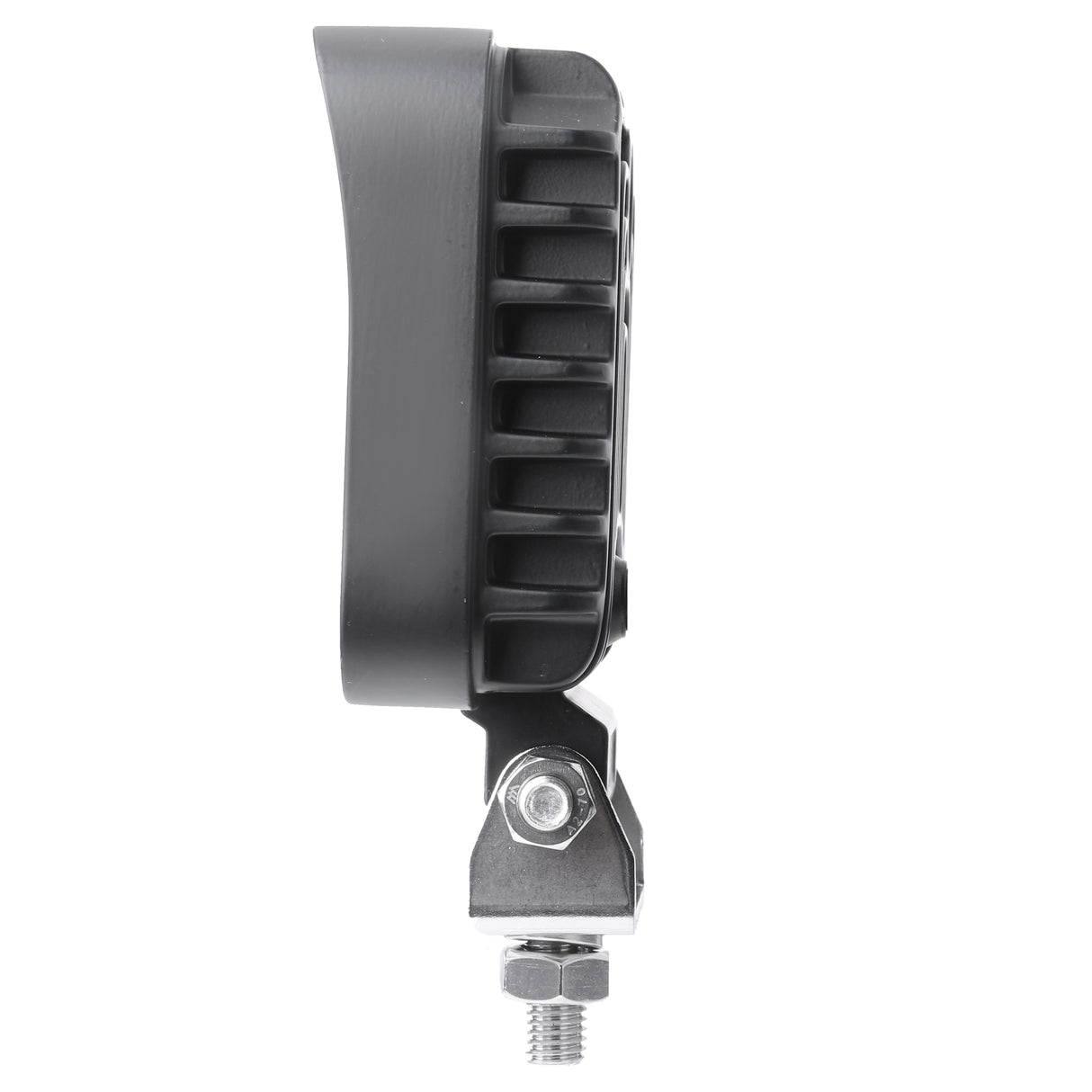

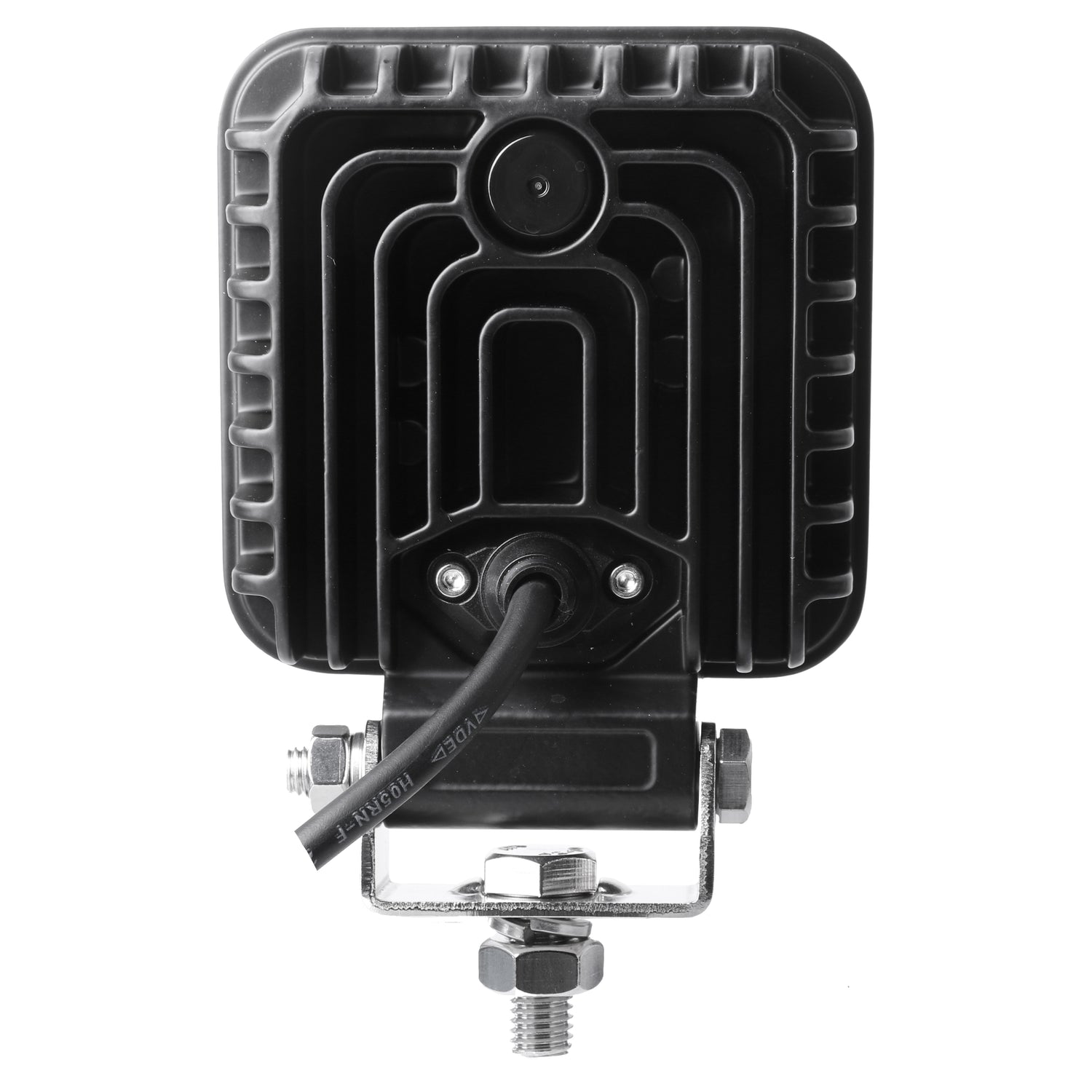

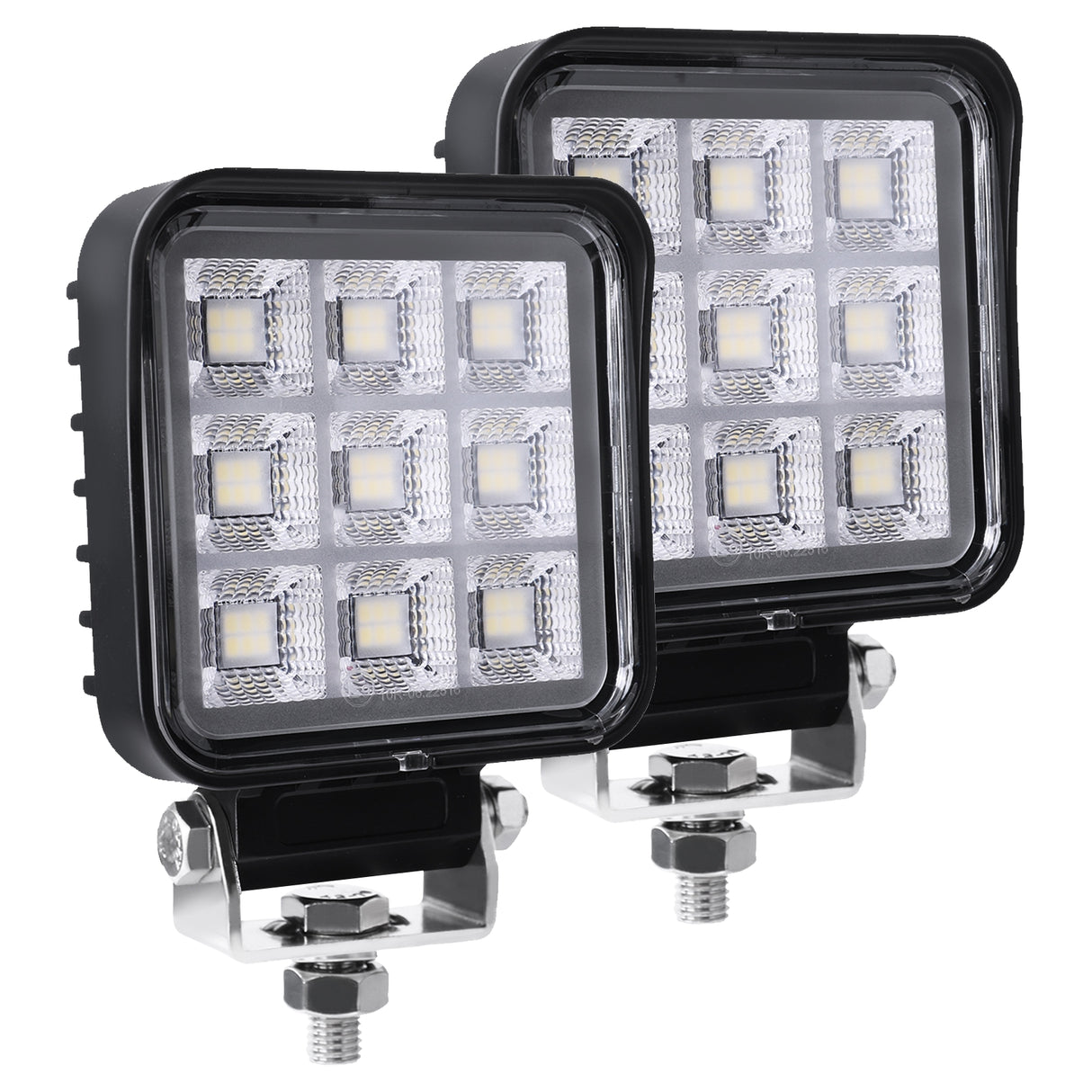

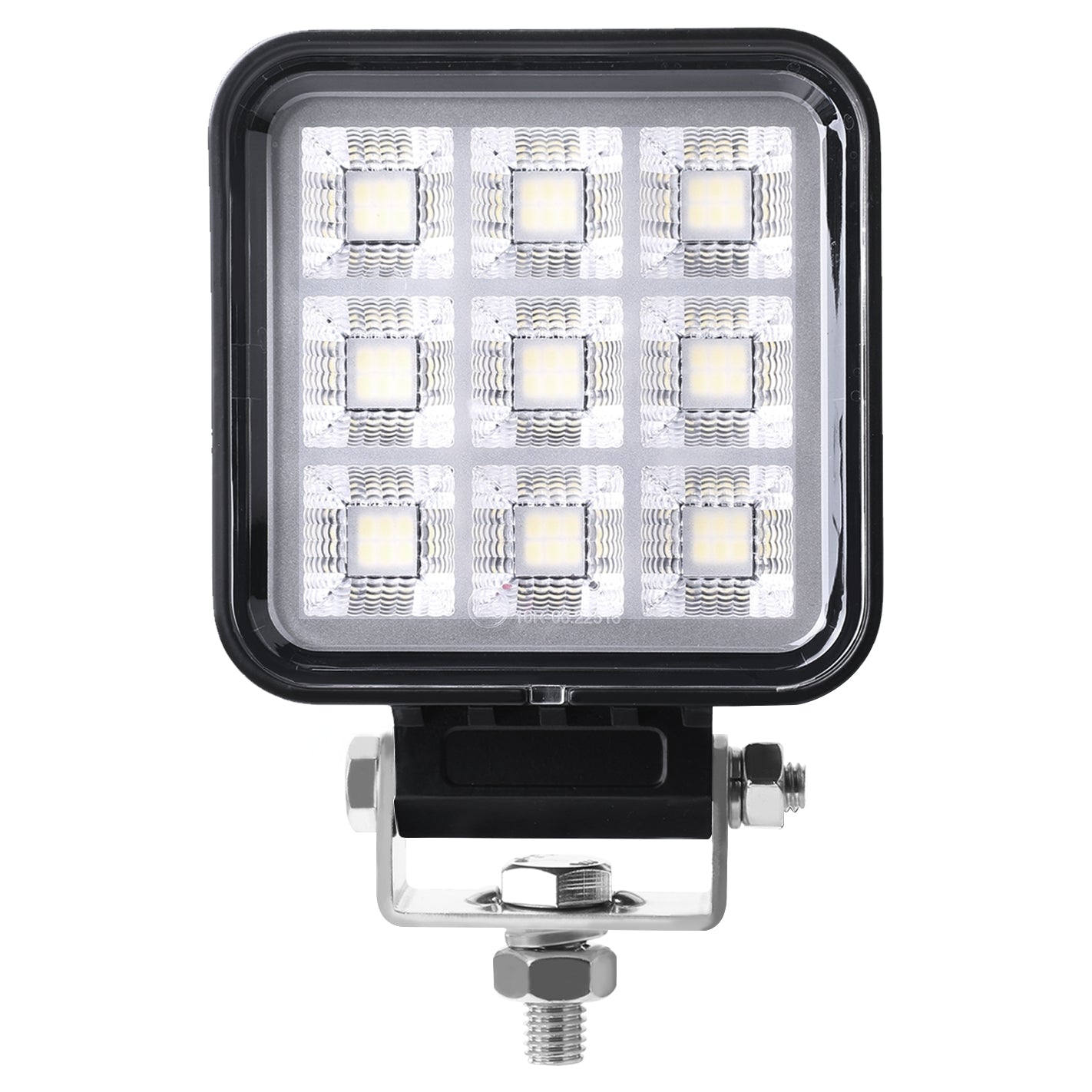

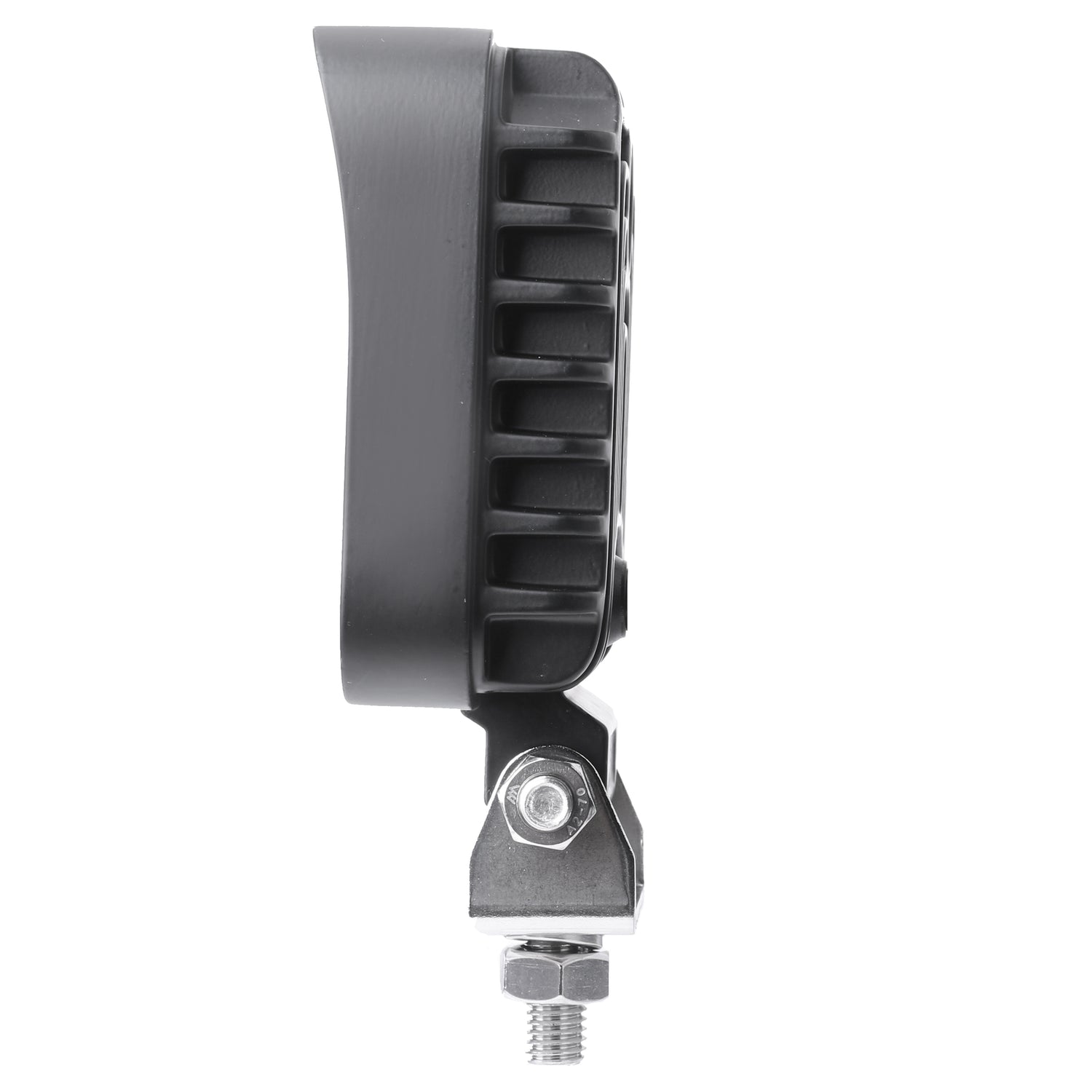

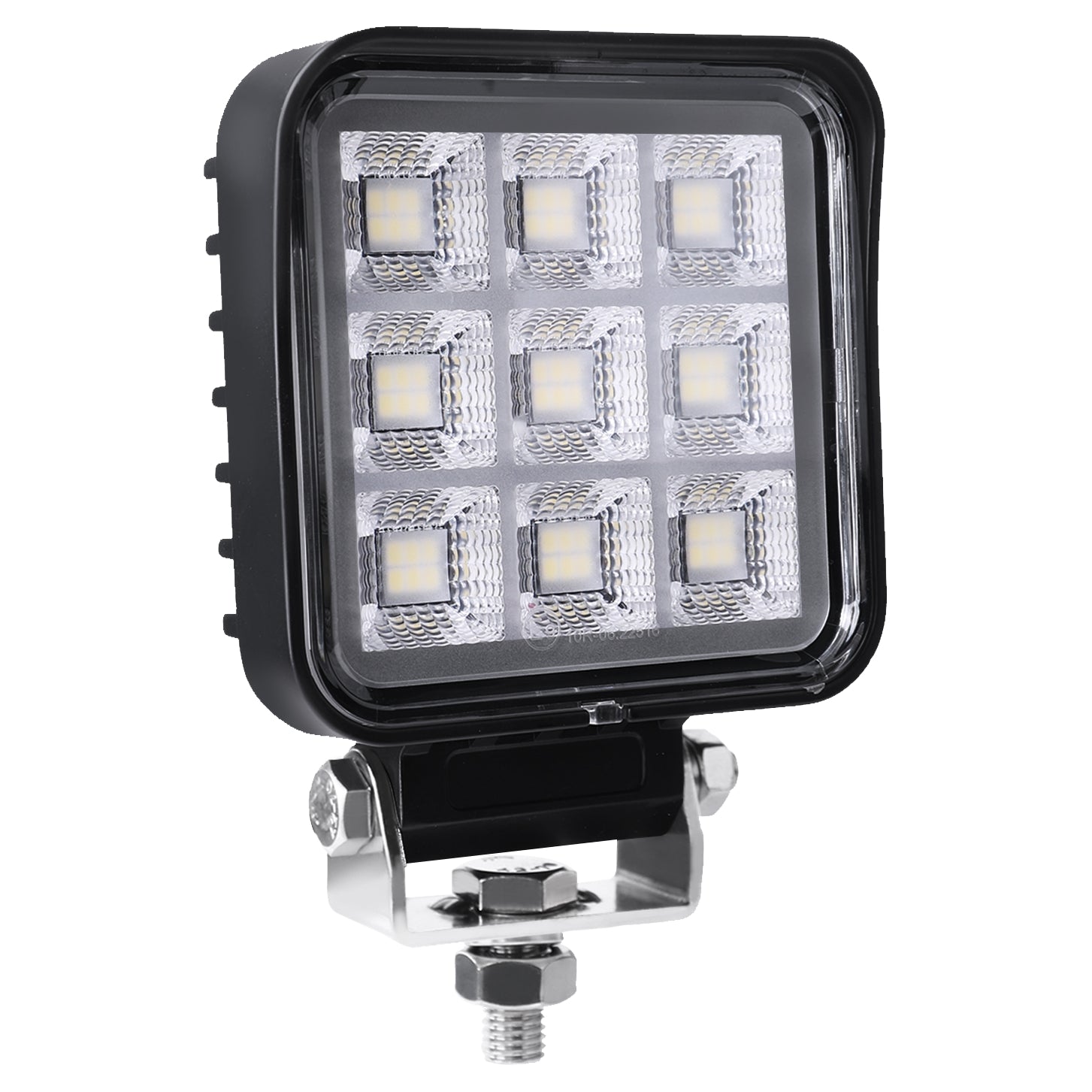

PrimeLux PX1954 3.9" Square LED Work Light
4,010 Eff. LM | 150° Ultra-Wide Field | IP68 / IP69K
Regular price
$59.99
Unit price
Shipping calculated at checkout.
PrimeLux PX1954 3.9" Square LED Work Light - Pair (2 Lights) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Engineered for full-scale industrial, agricultural, and mining applications, the Primelux PX1954 is a heavy-duty illumination powerhouse. Pulling a verified 45.76 watts per pod to unleash 4,009.5 effective lumens, these 3.9-inch square lights utilize precision-engineered optics to create a massive 150° panoramic light wall with a commanding 50-meter forward reach.
- Panoramic "Light Wall" Optics: Boasting an extreme 150° (H) × 57° (V) Field Angle, the lens is designed to spread light extensively across your peripheral vision while compressing it vertically. This ensures zero blind spots around your equipment while actively preventing operator hood glare.
- Uncompromised Penetration: Despite its ultra-wide flood pattern, the PX1954 maintains a potent 1,819 cd peak intensity. This translates to a validated 50-meter (164 ft) effective range at 1.0 lux, providing the long-distance clarity needed for high-speed industrial operations.

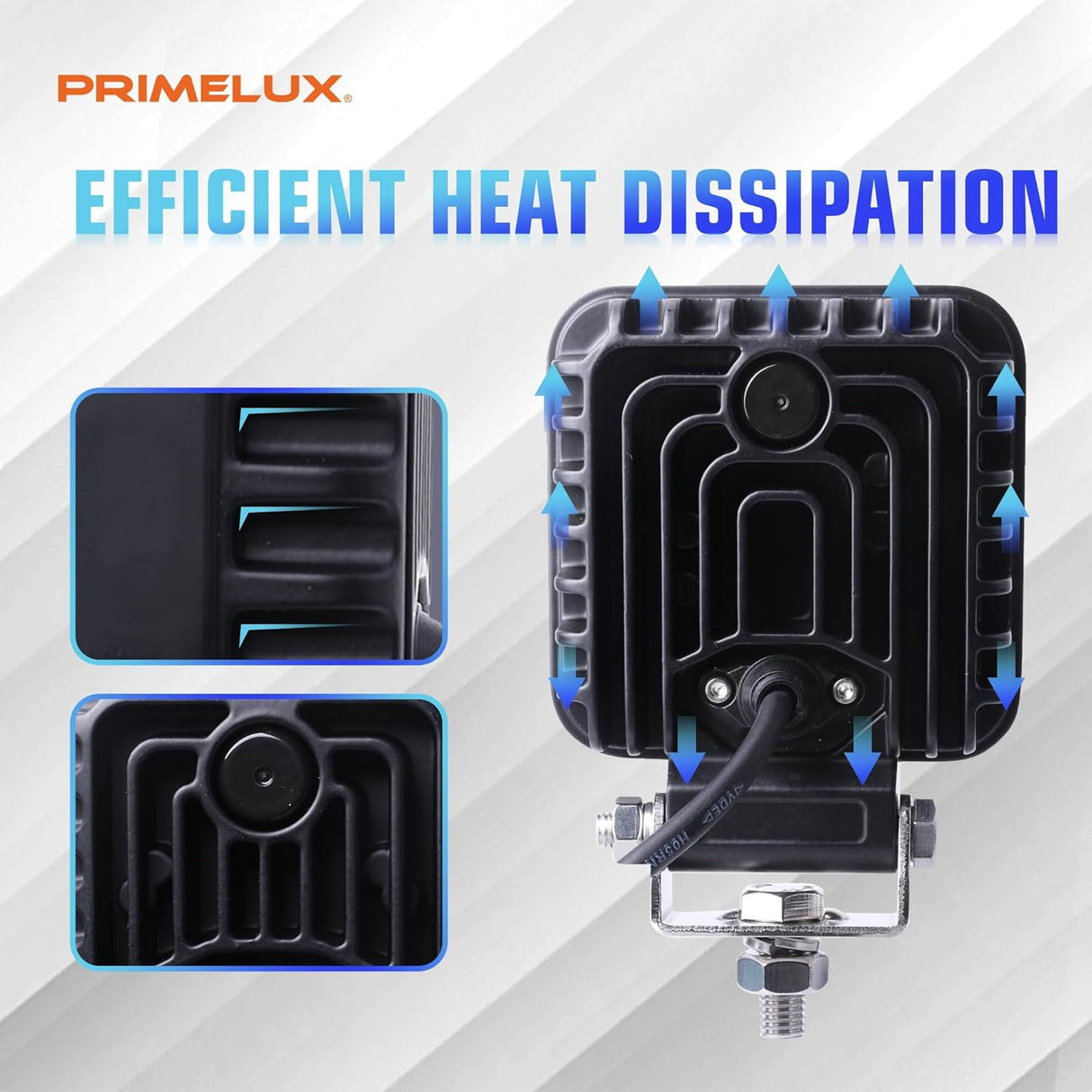

- Industrial-Grade Resilience: Rated at a dual IP68 and IP69K. Whether it's submerged in mud or facing high-pressure, high-temperature steam washdowns, the sealed die-cast aluminum housing guarantees absolute protection.
- Zero Radio Interference: Fully compliant with ECE R10 standards. The integrated EMC circuitry ensures that your vehicle's GPS, two-way radios, and sensitive onboard electronics operate smoothly without electromagnetic static.
- Built to Endure: Features a rugged, UV-resistant polycarbonate (PC) lens and heavy-duty 304 stainless steel brackets, designed specifically to withstand the violent vibrations of heavy earthmoving equipment.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX1954 |
| Theoretical Power | - |
| Actual Power | 45.76W |
| Raw Lumens | - |
| Effective Lumens | 4,010 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 3.39A @ 13.5V |
| Peak Intensity | 1,819 cd |
| Effective Range | 50 m / 164 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 90° (H) × 33° (V) |
| Field Angle (10% cd) | 150° (H) × 57° (V) (Extrapolated) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | ECE R10 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

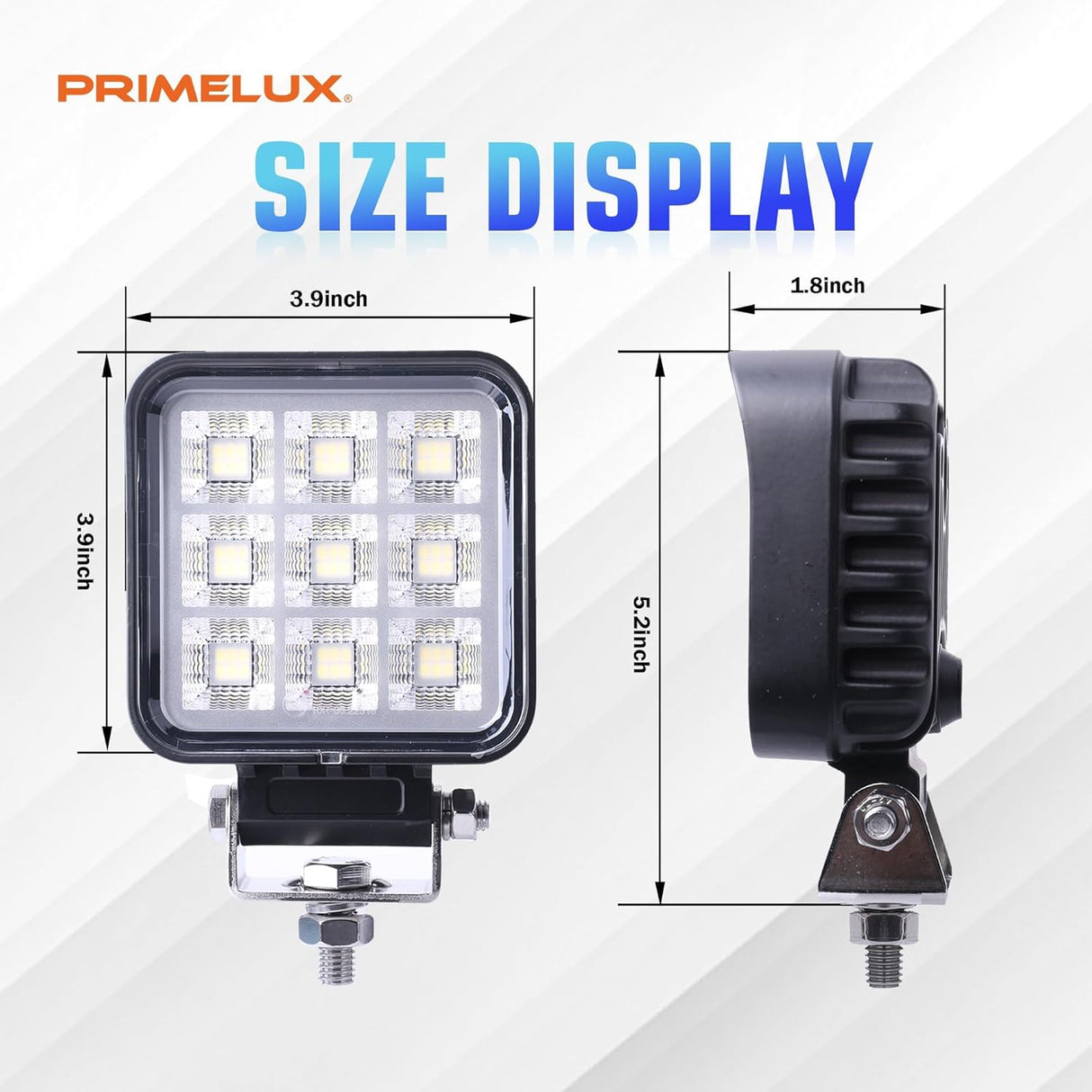

| Dimensions | 3.9" W x 1.8" D x 3.9" H (99.06 x 45.72 x 99.06 mm) |
| Height (Including Bracket) | 5.2" H (132 mm) |
What's in the Box
- 1x Primelux PX1954 3.9" LED Work Lights

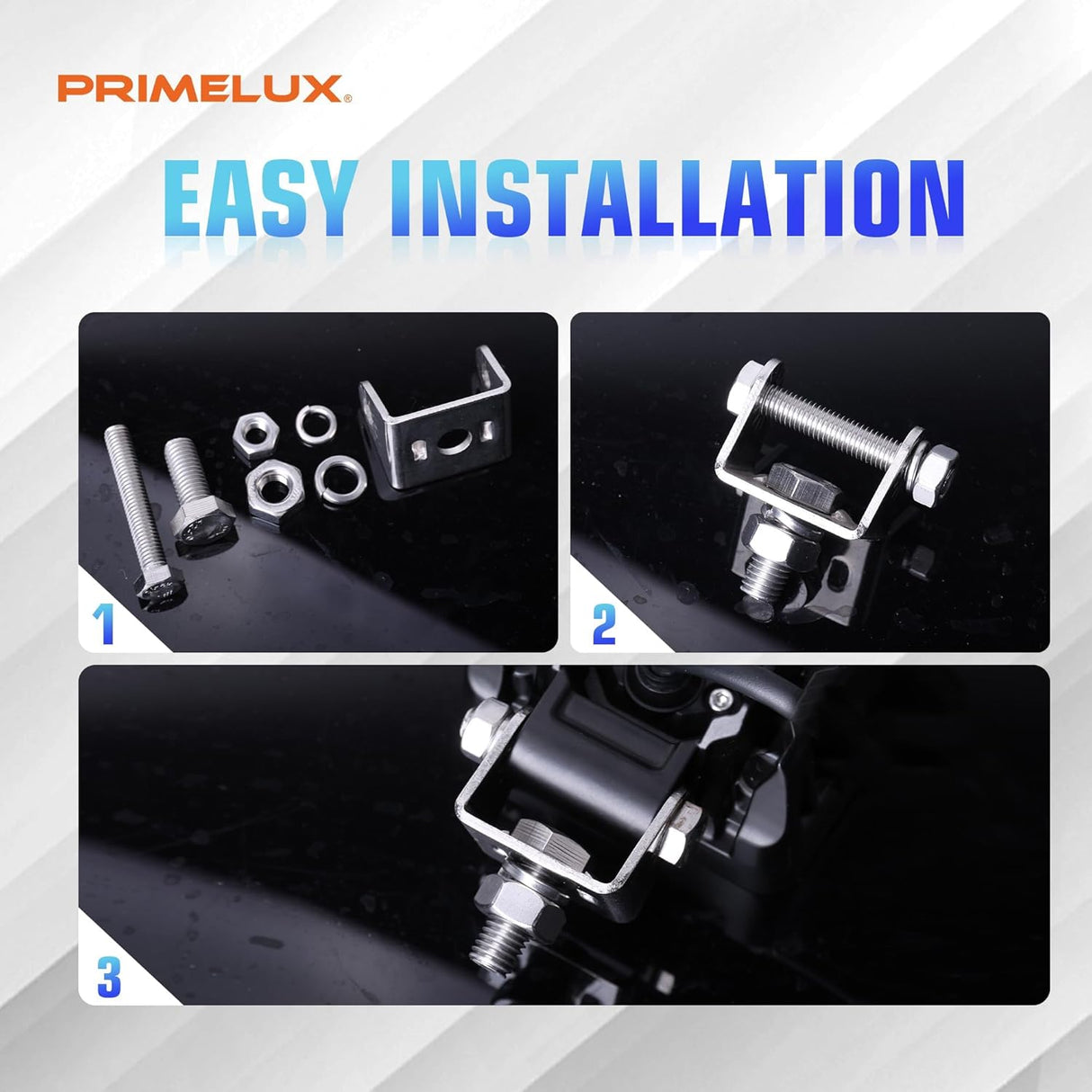

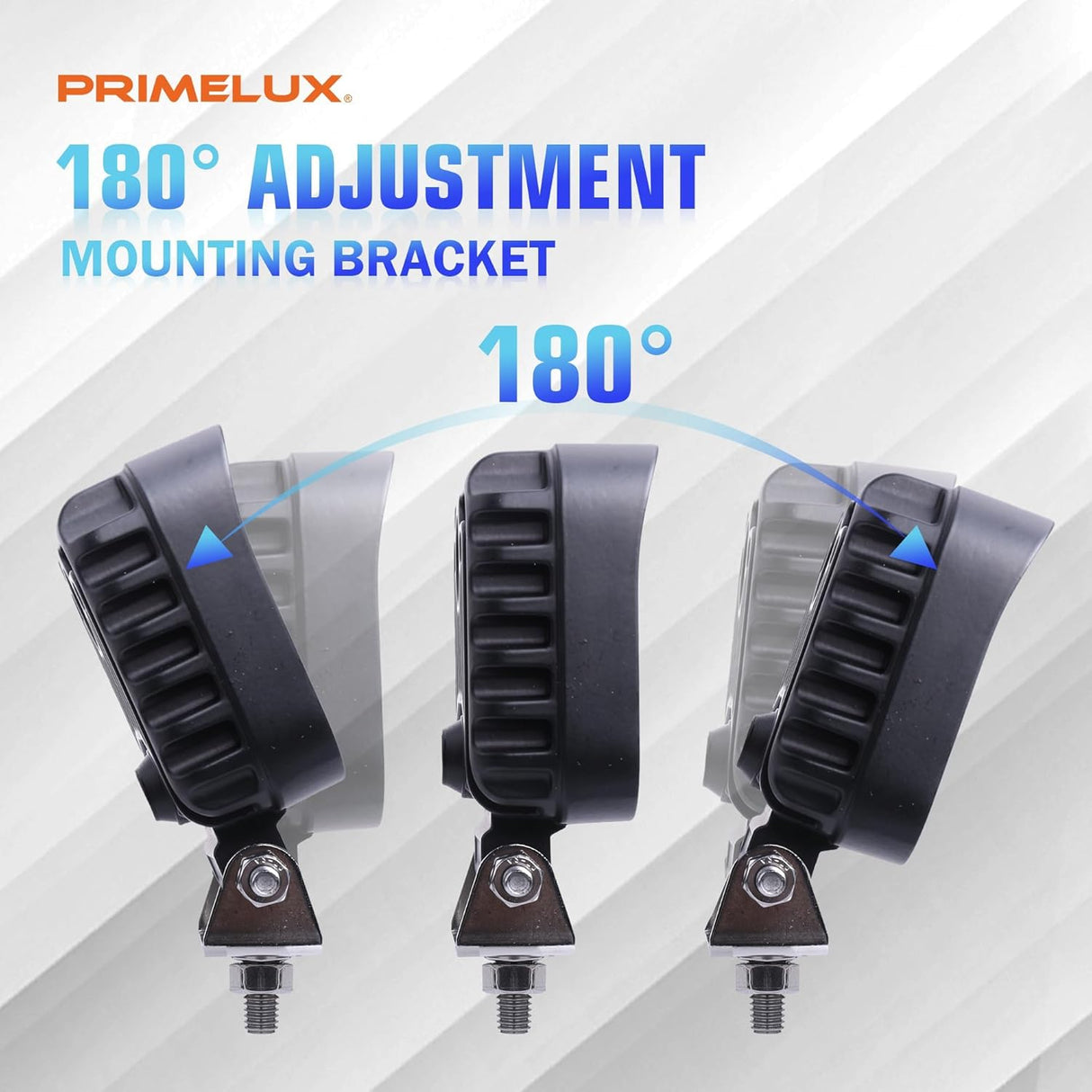

- 1x Adjustable 304 Stainless Steel Bottom Brackets
- 1x Set of Mounting Hardware (Bolts & Nuts)
