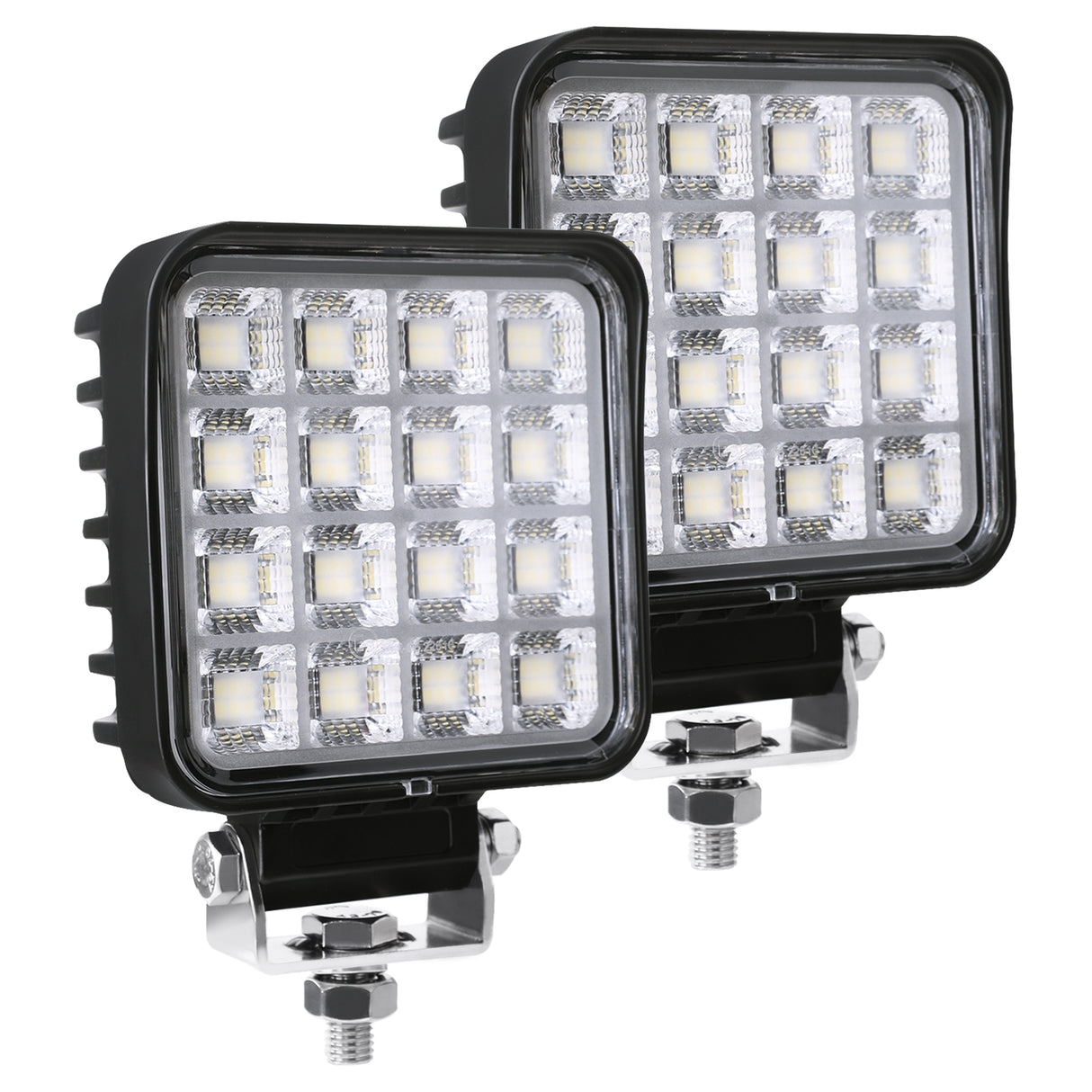

PrimeLux PX2096 4.3" Square LED Work Lights (Pair)
12,668 Eff. LM | 160° Ultra-Wide Field | 2,635cd Peak
Regular price
$84.99
Unit price
Shipping calculated at checkout.
PrimeLux PX2096 4.3" Square LED Work Lights (Pair) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Engineered to deliver high-output performance in a versatile 4.3-inch footprint, the Primelux PX2096 redefines the power-to-size ratio in industrial lighting. Drawing a verified 64.95 watts per pod to unleash 6,334.1 effective lumens, these square lights utilize extreme-angle optics to project a massive 160° panoramic light wall with a commanding 50-meter forward reach.
- Extreme "Light Wall" Optics: Boasting an industry-leading 160° (H) × 57° (V) Field Angle, the precision lens projects an expansive horizontal light wall. This ensures total peripheral awareness around your machinery while its vertical compression actively prevents blinding operator glare.
- High-Intensity Penetration: Despite its ultra-wide flood pattern, the PX2096 maintains a potent 2,635 cd peak intensity. This translates to a validated 50-meter (164 ft) effective range at 1.0 lux, providing the long-distance clarity required for safe, high-speed operations.
- Unrivaled Industrial Resilience: Rated at a dual IP68 and IP69K. The fully sealed die-cast aluminum housing is built to endure total submersion, extreme mud, and high-pressure, high-temperature steam washdowns without compromise.
- Zero Radio Interference: Fully compliant with ECE R10 standards. The integrated EMC circuitry ensures that your vehicle's GPS, two-way radios, and sensitive onboard electronics operate smoothly without electromagnetic static.
- Built for Brutal Conditions: Featuring a rugged, UV-resistant polycarbonate (PC) lens and secured by heavy-duty 304 stainless steel brackets, these lights are designed to withstand the persistent vibrations of agricultural and construction machinery.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX2096 |
| Theoretical Power | - |
| Actual Power | 64.95W |
| Raw Lumens | - |
| Effective Lumens | 6,334 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 4.81A @ 13.5V |
| Peak Intensity | 2,635 cd |
| Effective Range | 50 m / 164 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 102° (H) × 36° (V) |
| Field Angle (10% cd) | 160° (H) × 57° (V) (Extrapolated) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | ECE R10 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

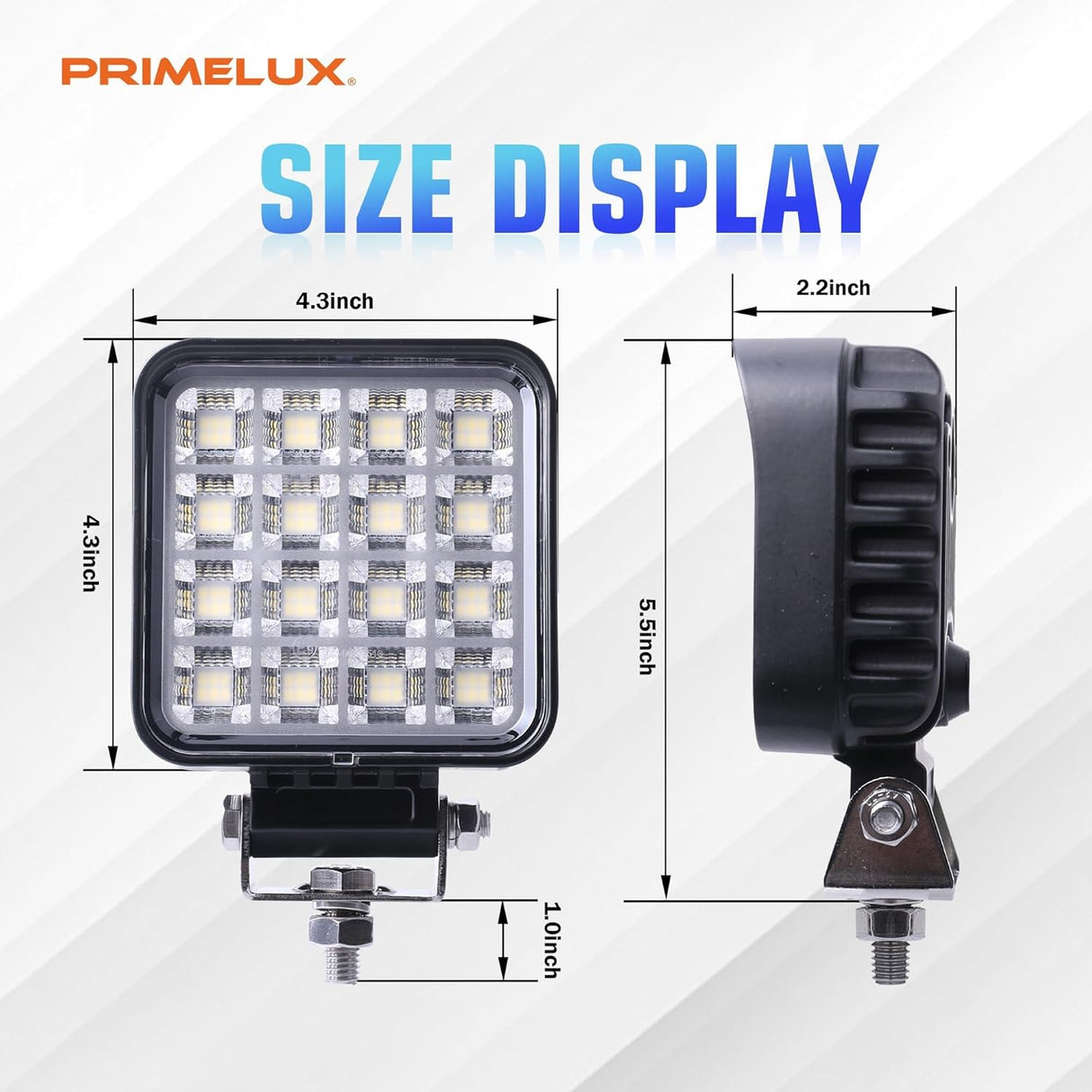

| Dimensions | 4.3" W x 2.2" D x 4.3" H (109 x 56 x 109 mm) |
| Height (Including Bracket) | 5.5" H (140 mm) |

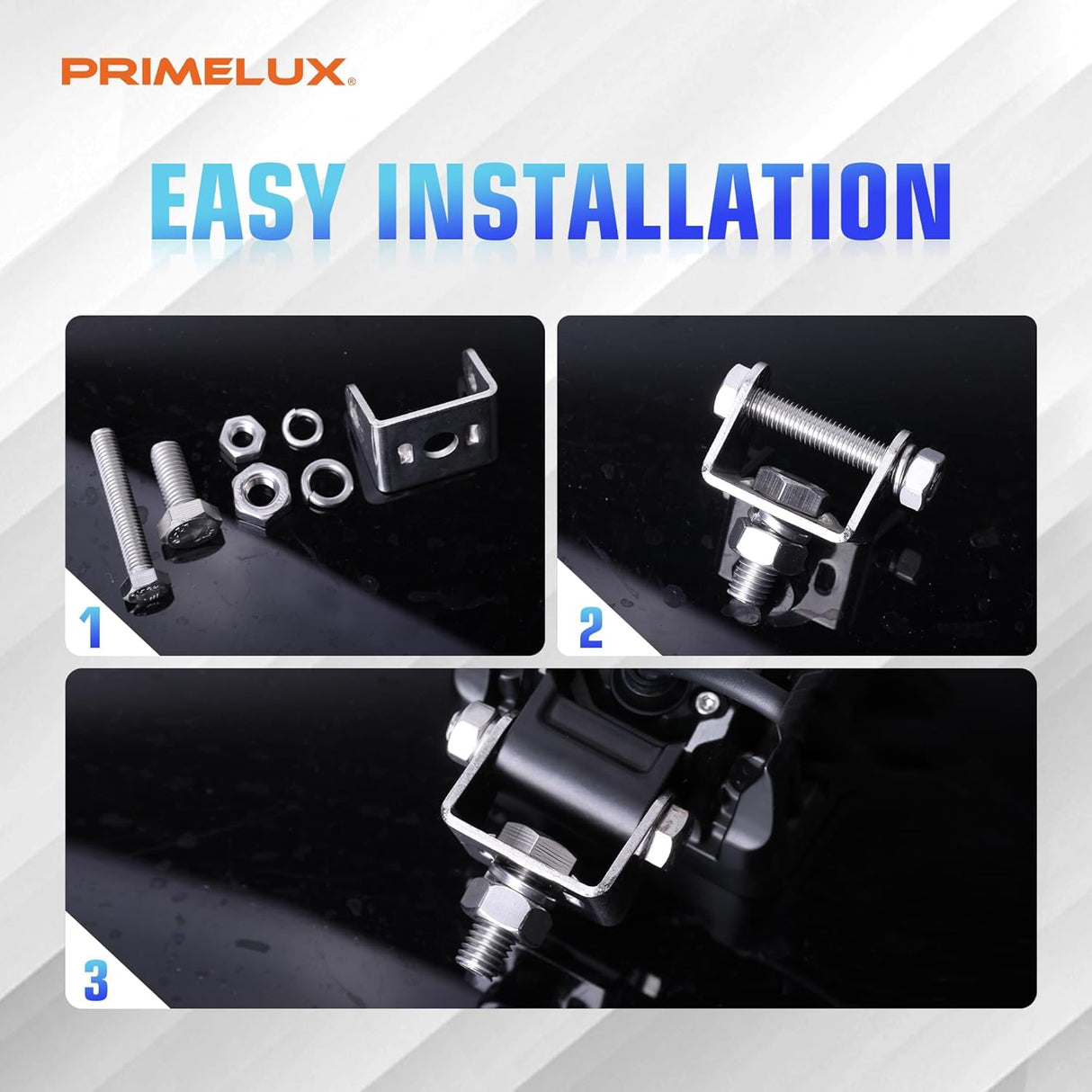

What's in the Box
- 2x Primelux PX2096 4.3" LED Work Lights
- 2x Adjustable 304 Stainless Steel Bottom Brackets
- 1x Set of Mounting Hardware (Bolts & Nuts)
