Primelux | SKU:
9801801

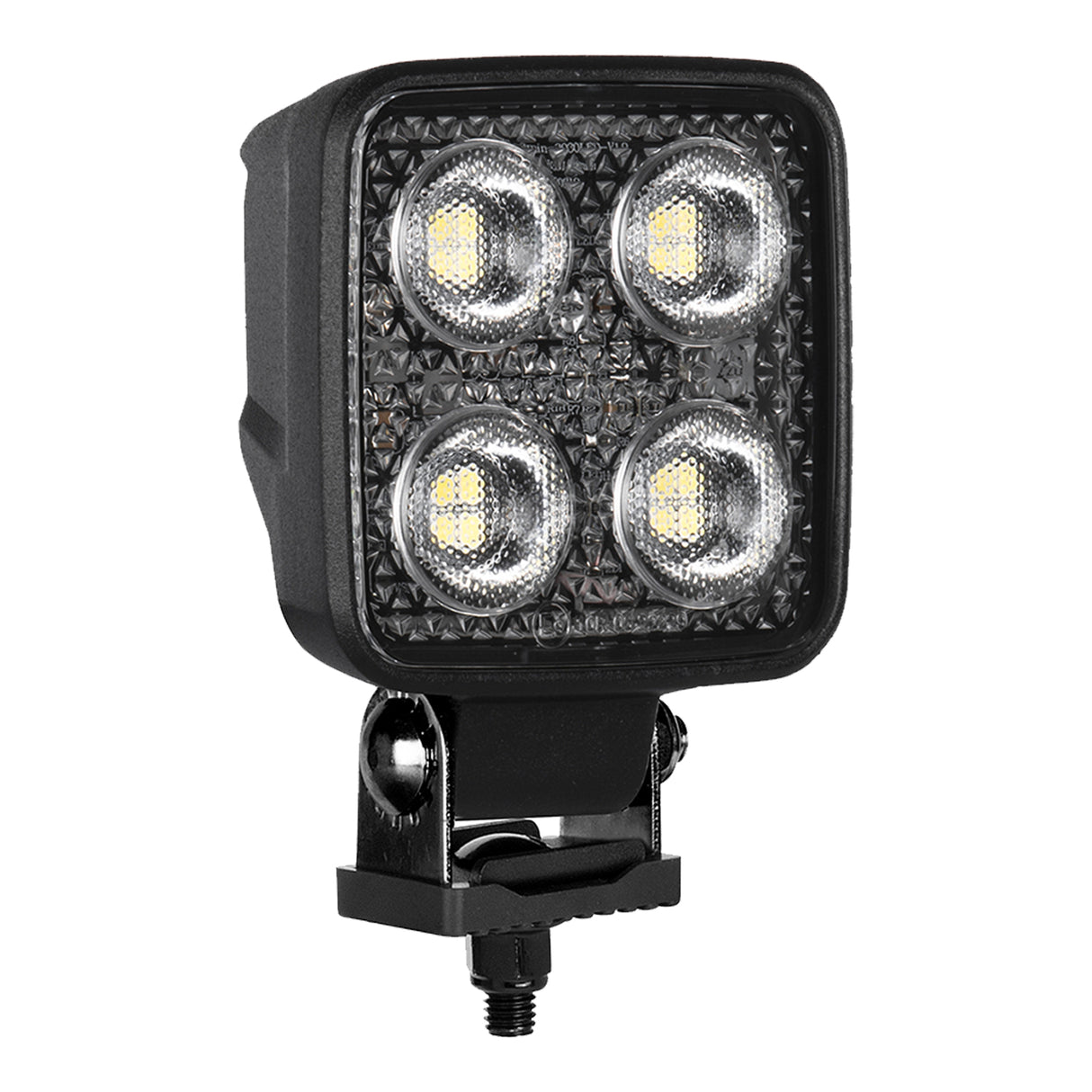

Primelux PX2116 2.8" Square LED Work Light
1775 Lumen | 160° Ultra-Wide Field | CISPR 25 Class 3
Regular price
$59.99
Unit price
Shipping calculated at checkout.

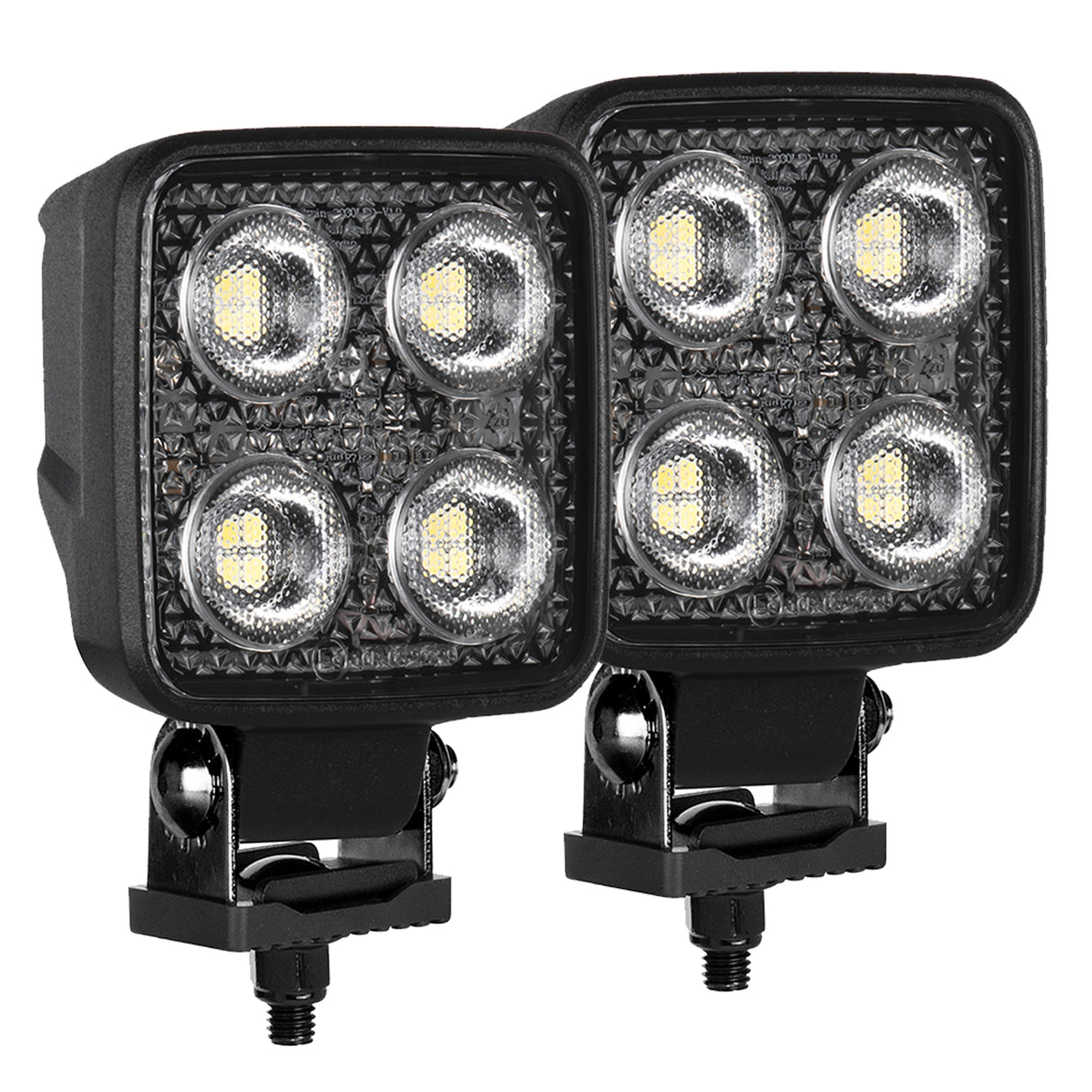

Primelux PX2116 2.8" Square LED Work Light - Pair (2 Lights) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Dominate your periphery with an uncompromising wall of light. Engineered for heavy-duty industrial and off-road applications, this lighting solution eliminates blind spots and maximizes situational awareness in the most grueling environments.
Features

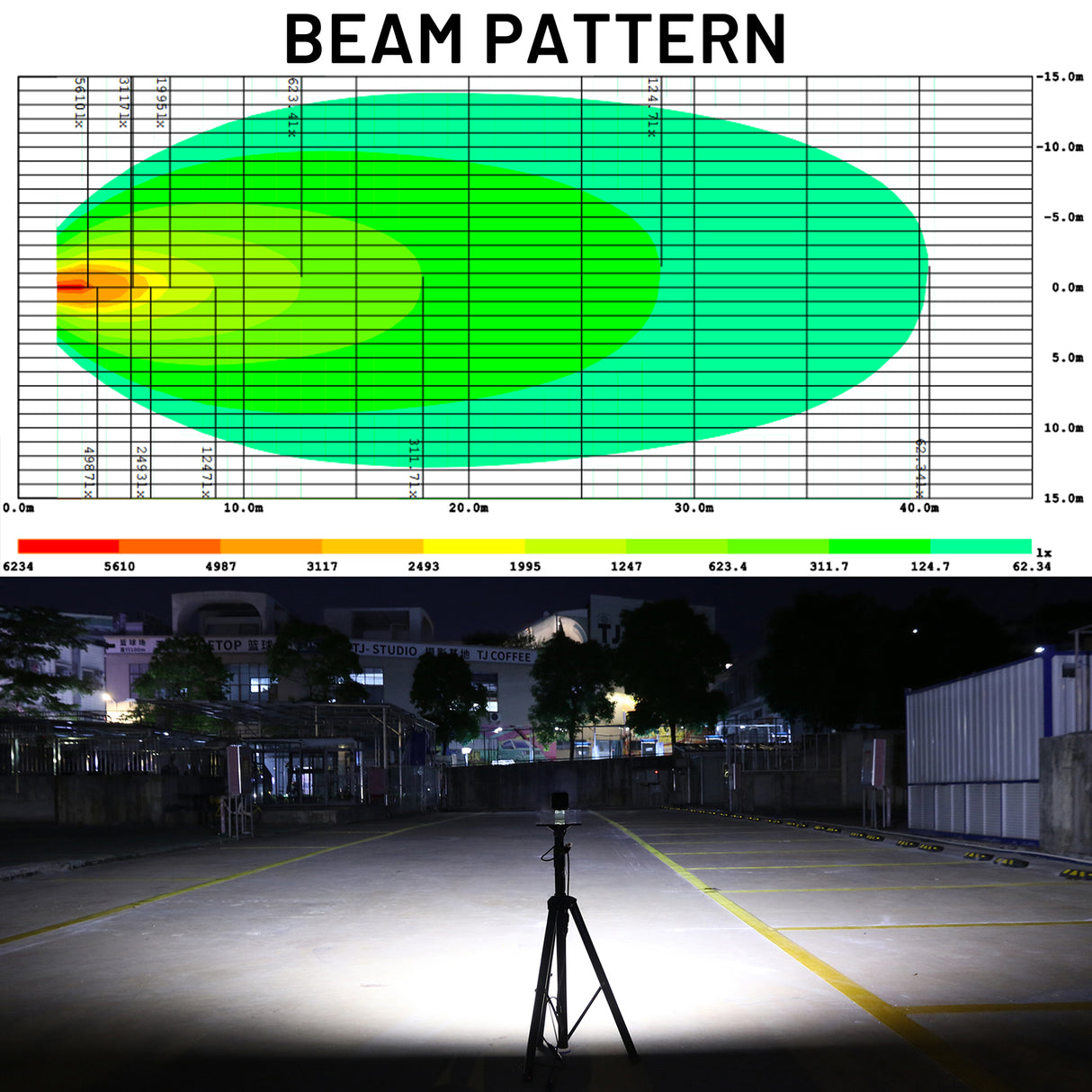

- 160° Panoramic "Light Wall" Optics: Delivers an ultra-wide 160°(H) × 60°(V) beam pattern to eliminate peripheral blind spots while minimizing hood glare[cite: 31, 38].
- Proven 45-Meter Illumination Range: Engineered optics maintain a 1,025 cd peak intensity, pushing 1.0 lx effective light up to 45 meters forward[cite: 33, 38].
- Dual IP68 & IP69K Resilience: Fully sealed die-cast aluminum housing protects against total submersion and high-pressure steam washdowns[cite: 26].
- Certified CISPR 25 Class 3 EMC: Advanced integrated circuitry ensures zero electromagnetic interference with GPS, two-way radios, and onboard electronics[cite: 26].
- Industrial-Grade Build Quality: Features a UV-resistant polycarbonate lens secured by heavy-duty 304 stainless steel brackets to withstand extreme vibration[cite: 26].
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX2116 |
| Power Consumption | 14.97W |
| Raw Lumens | 2,000 lm |
| Effective Lumens | 1,775.4 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 1.11A @ 13.50V |
| Peak Intensity | 1,025.0 cd |
| Effective Range | 45 m / 147 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 102° (H) × 30° (V) |
| Field Angle (10% cd) | 160° (H) × 60° (V) (Extrapolated) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | CISPR 25 Class 3 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

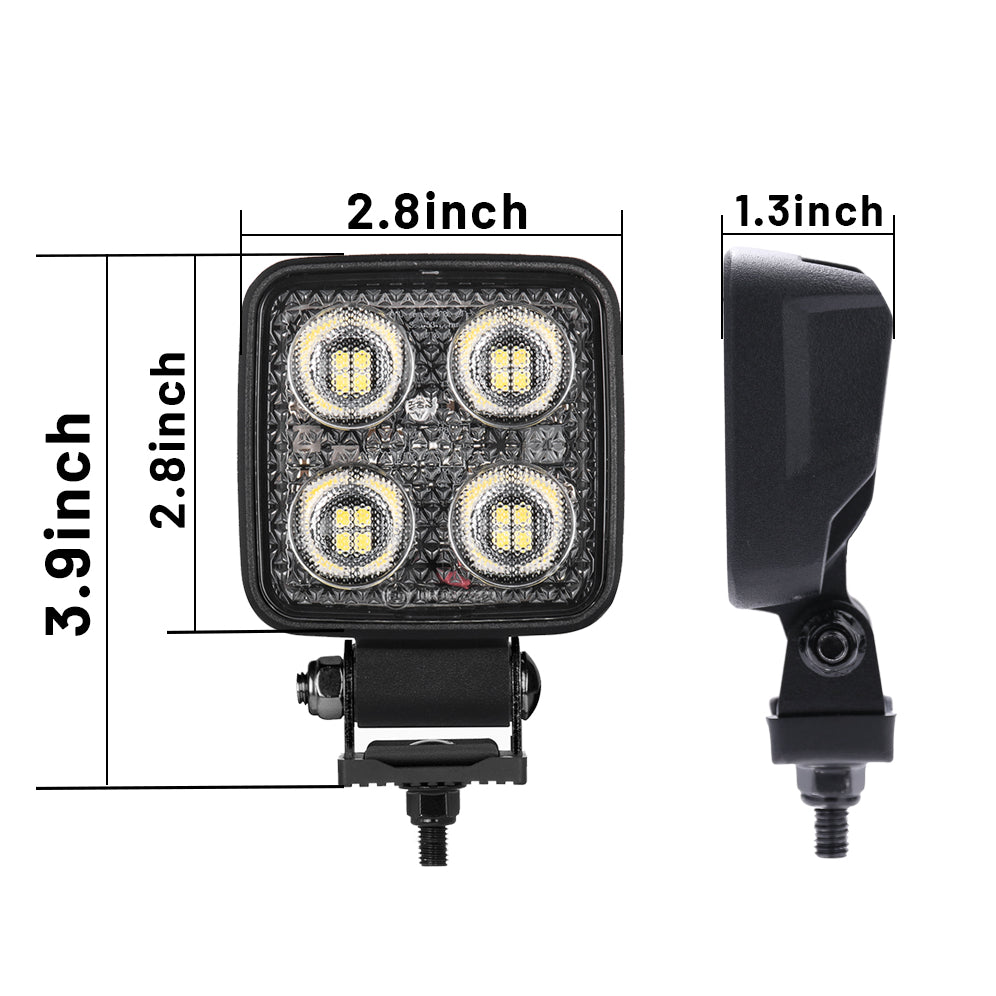

| Dimensions | 2.76" W x 1.28" D x 2.76" H (70 x 32.5 x 70 mm) |
| Height (Including Bracket) | 3.9" H (90.1 mm) |

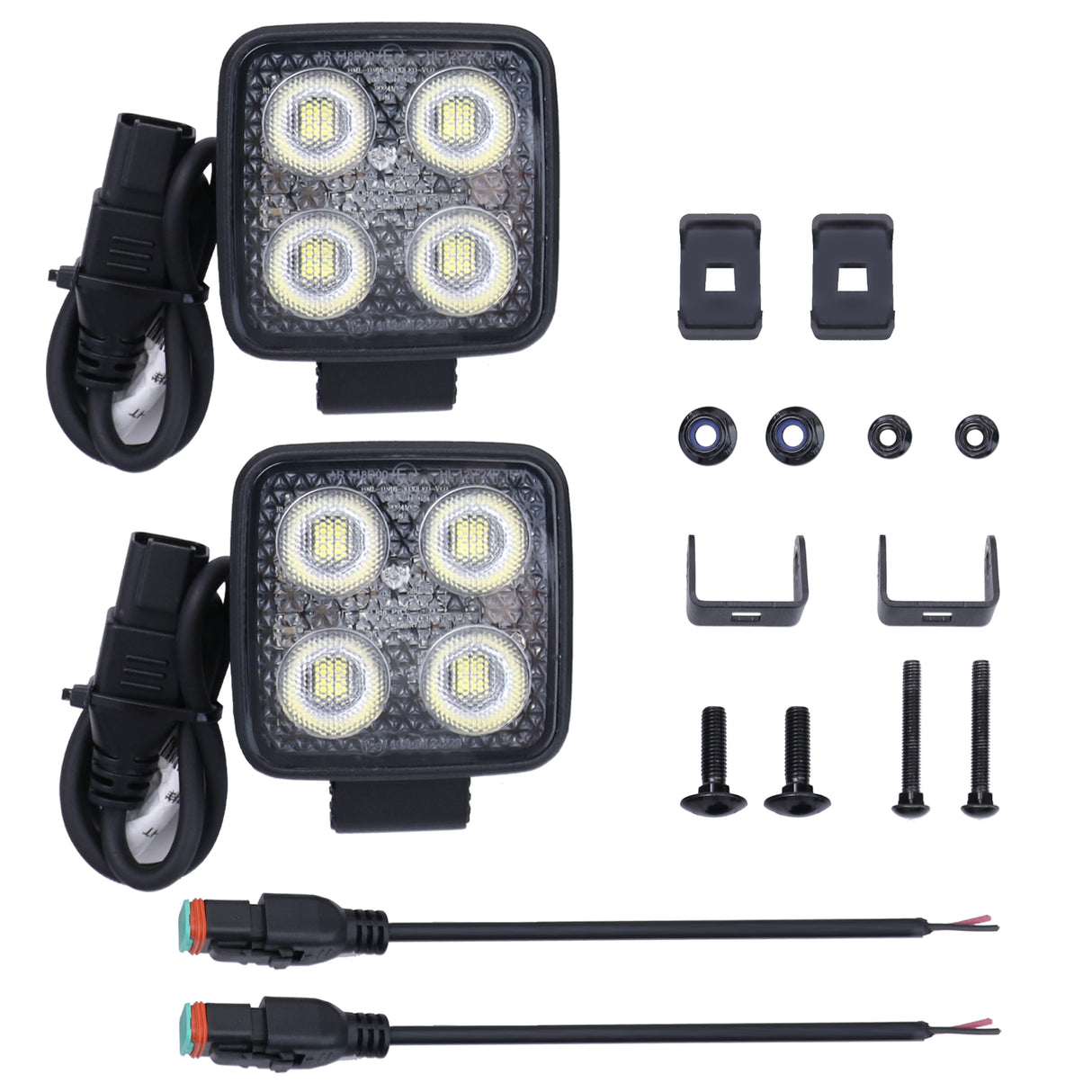

What's in the Box
- 1x Primelux PX2116 2.8" LED Work Lights
- 1x Adjustable 304 Stainless Steel Bottom Brackets
- 1x Set of Mounting Hardware (Bolts & Nuts)
