Primelux | SKU:
9801801

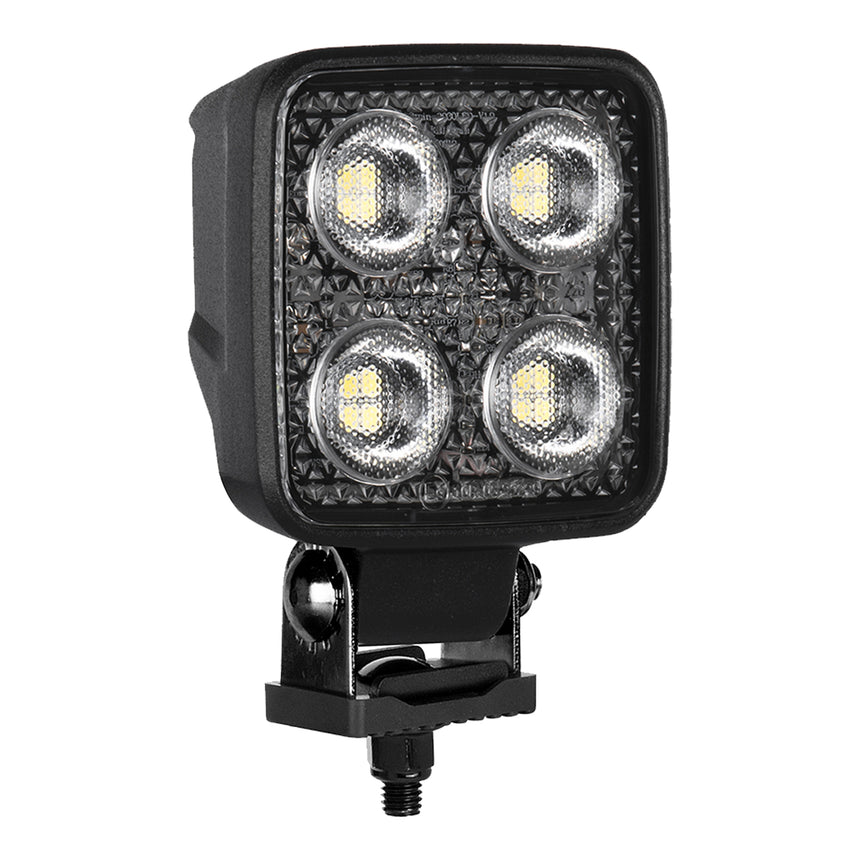

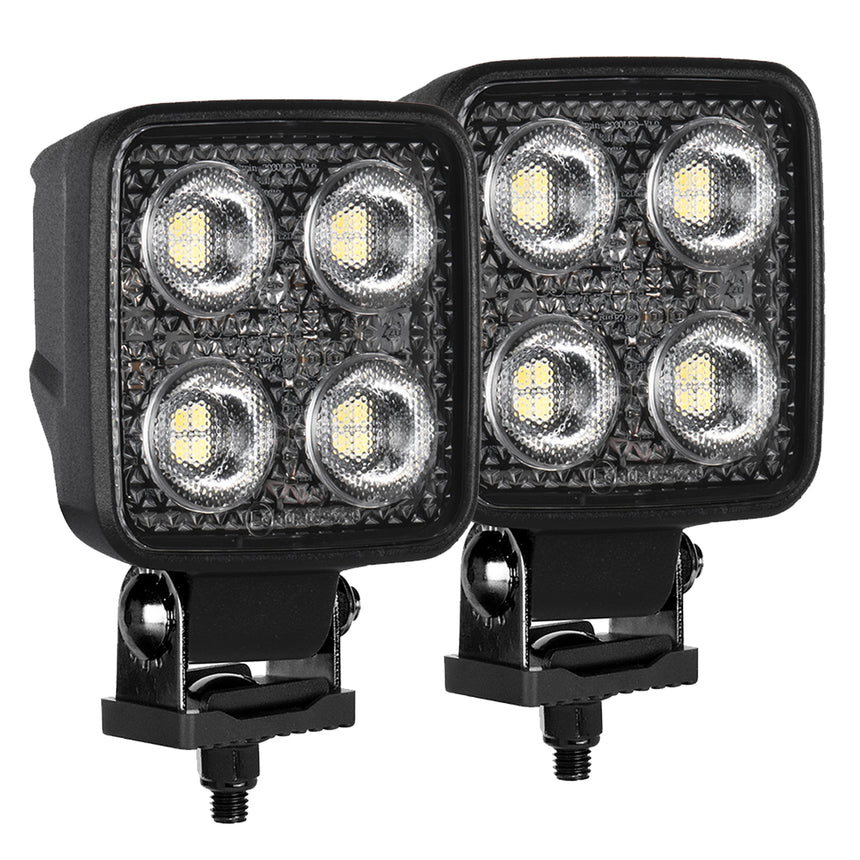

Primelux PX2116 2.8" Square LED Work Lights (Pair)
3,550 Eff. LM | 160° Ultra-Wide Field | 1,025cd Peak
Regular price
$59.99
Unit price
Shipping calculated at checkout.
Primelux PX2116 2.8" Square LED Work Lights (Pair) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Engineered for maximum coverage in a remarkably compact footprint, the Primelux PX2116 redefines ultra-wide near-field illumination. Pulling just 14.97 watts to generate 1,775.4 effective lumens per pod, these 2.8-inch lights utilize extreme-angle optics to project an unparalleled 160° panoramic light wall, paired with a validated 45-meter effective range.

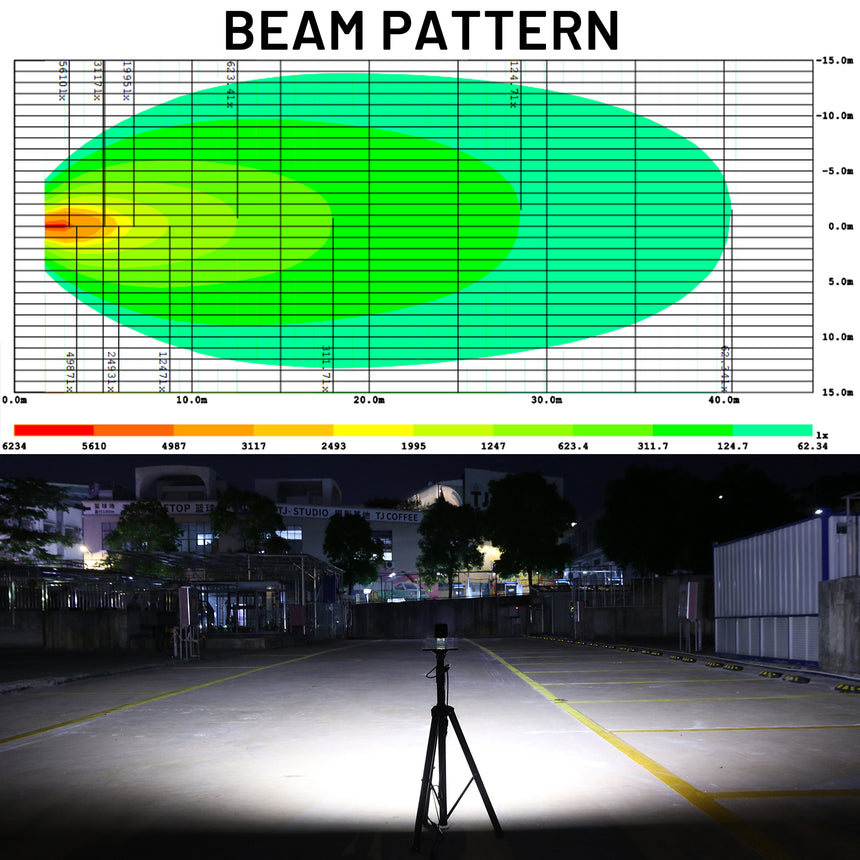

- Extreme "Light Wall" Optics: Featuring a massive 160° (H) × 60° (V) Field Angle, the lens spreads light extensively across your peripheral vision, effectively eliminating blind spots around the immediate vicinity of your equipment while minimizing hood glare.
- Proven 147ft (45m) Range: Despite its extreme ultra-wide flood pattern and low power draw, the engineered optics still maintain a precise 1,025 cd peak intensity, pushing effective illumination (1.0 lx) up to 45 meters forward.
- Extreme Weather Resilience: Rated at a dual IP68 and IP69K. From full underwater submersion to high-pressure, high-temperature steam washdowns, the sealed die-cast aluminum housing guarantees absolute protection.
- Certified CISPR 25 Class 3: The advanced integrated EMC circuitry guarantees your vehicle's GPS, two-way radios, and sensitive onboard electronics operate without a hint of electromagnetic disruption.
- Built to Endure: Features a rugged, UV-resistant polycarbonate (PC) lens and is secured by heavy-duty 304 stainless steel brackets, designed to withstand the brutal vibrations of heavy machinery.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX2116 |
| Theoretical Power | - |
| Actual Power | 14.97W |
| Raw Lumens | - |
| Effective Lumens | 1,775.4 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 1.11A @ 13.50V |
| Peak Intensity | 1,025.0 cd |
| Effective Range | 45 m / 147 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 102° (H) × 30° (V) |
| Field Angle (10% cd) | 160° (H) × 60° (V) (Extrapolated) |
| Color Temperature | 5568K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | CISPR 25 Class 3 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |

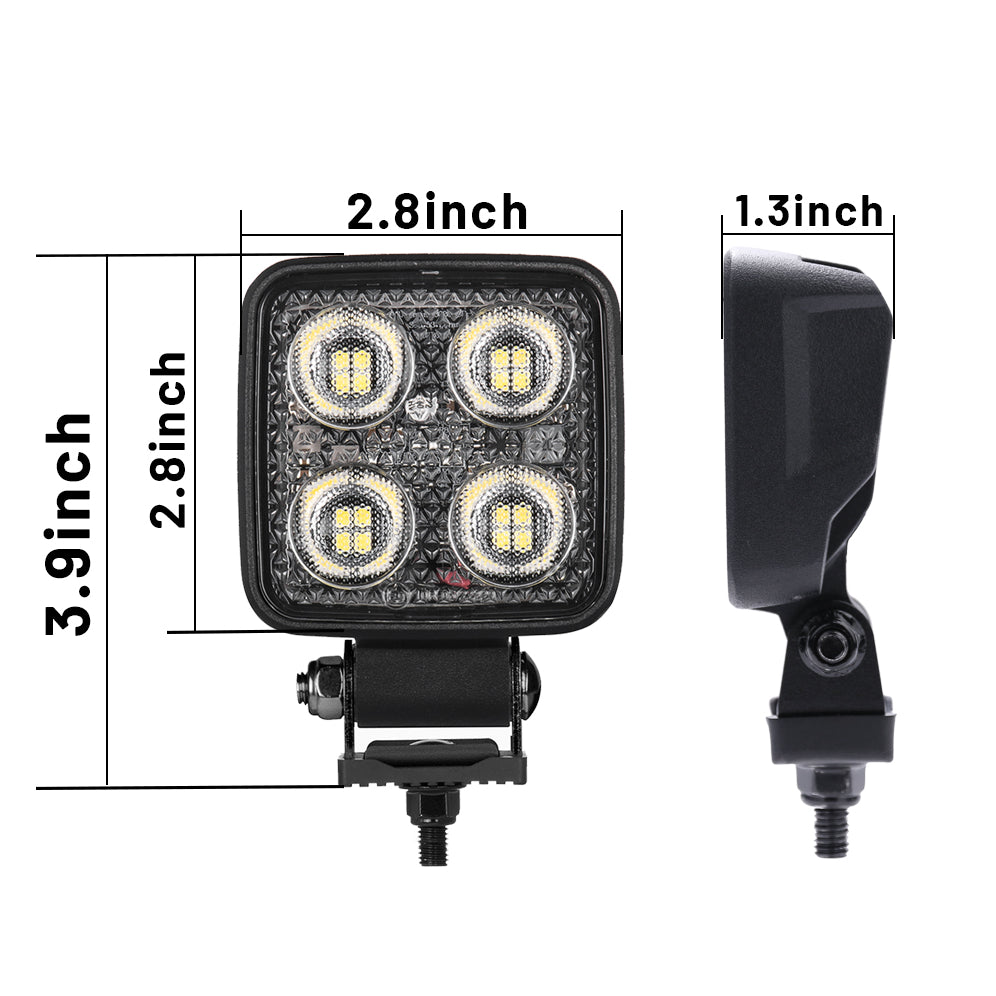

| Dimensions | 2.76" W x 1.28" D x 2.76" H (70 x 32.5 x 70 mm) |
| Height (Including Bracket) | 3.9" H (90.1 mm) |

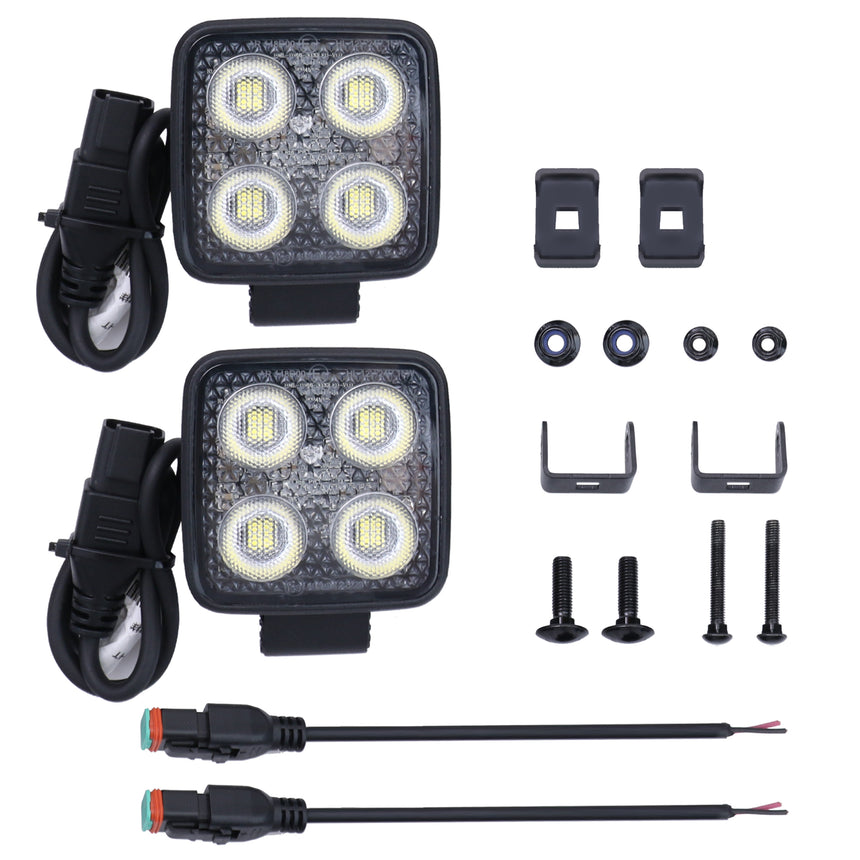

What's in the Box
- 2x Primelux PX2116 2.8" LED Work Lights
- 2x Adjustable 304 Stainless Steel Bottom Brackets
- 1x Set of Mounting Hardware (Bolts & Nuts)
