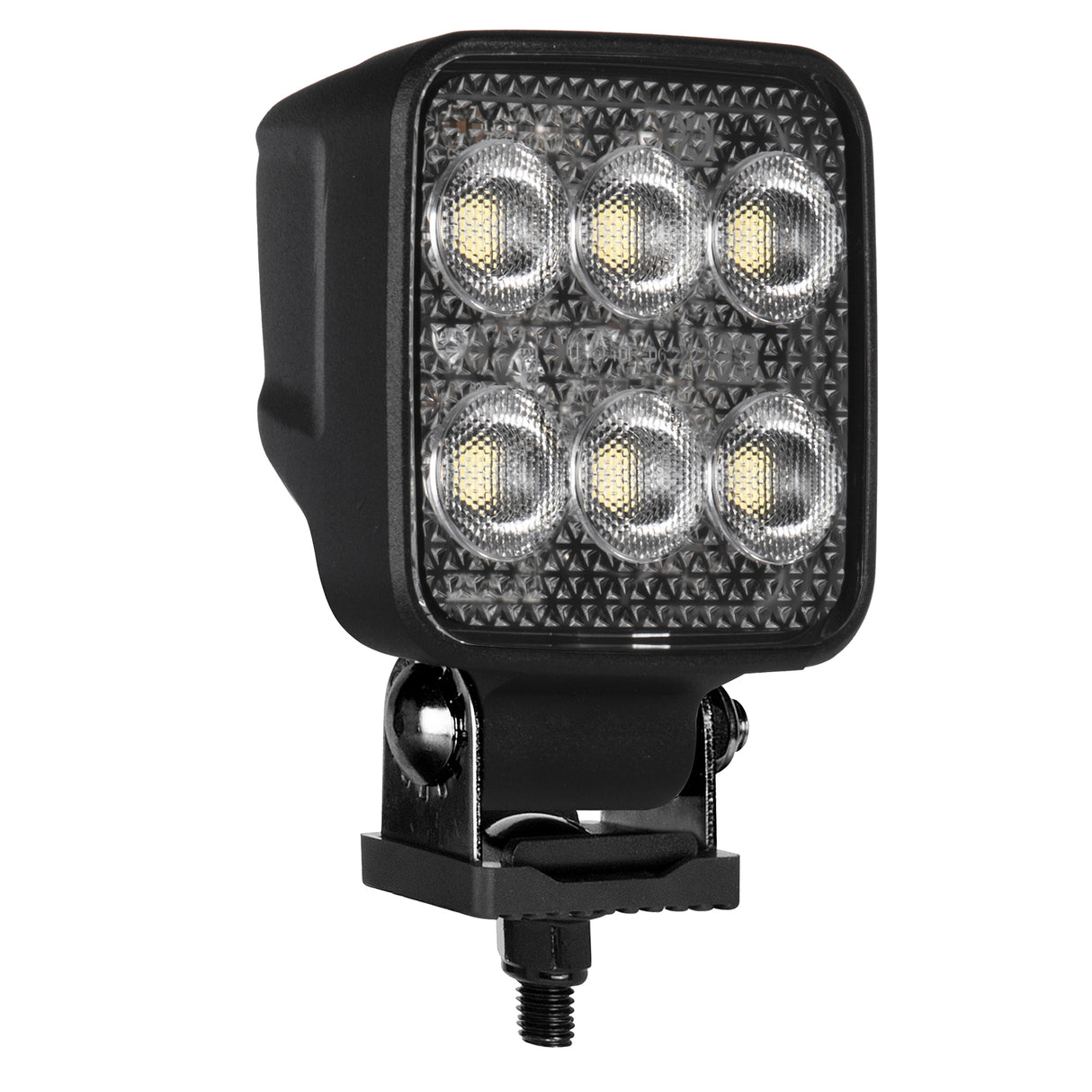

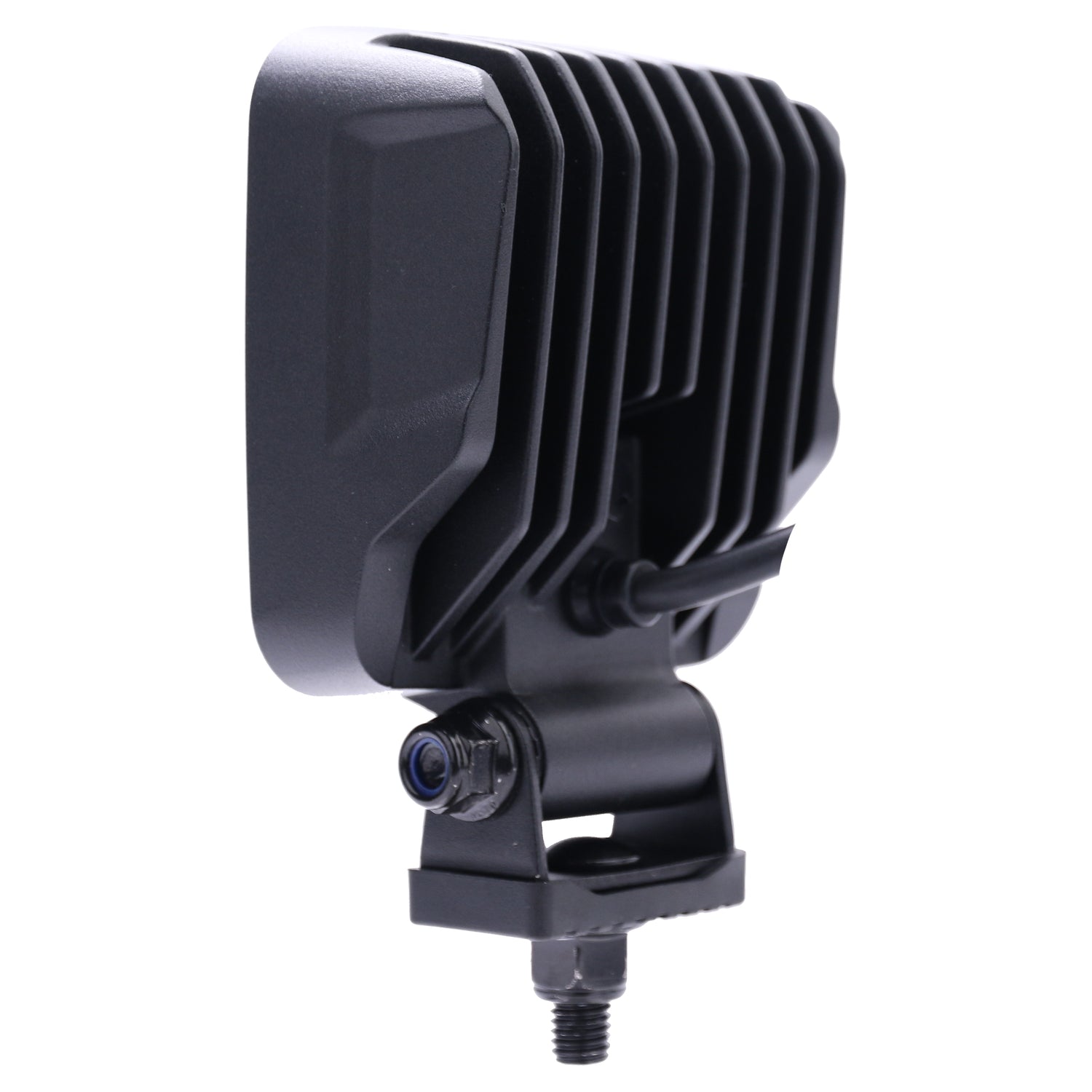

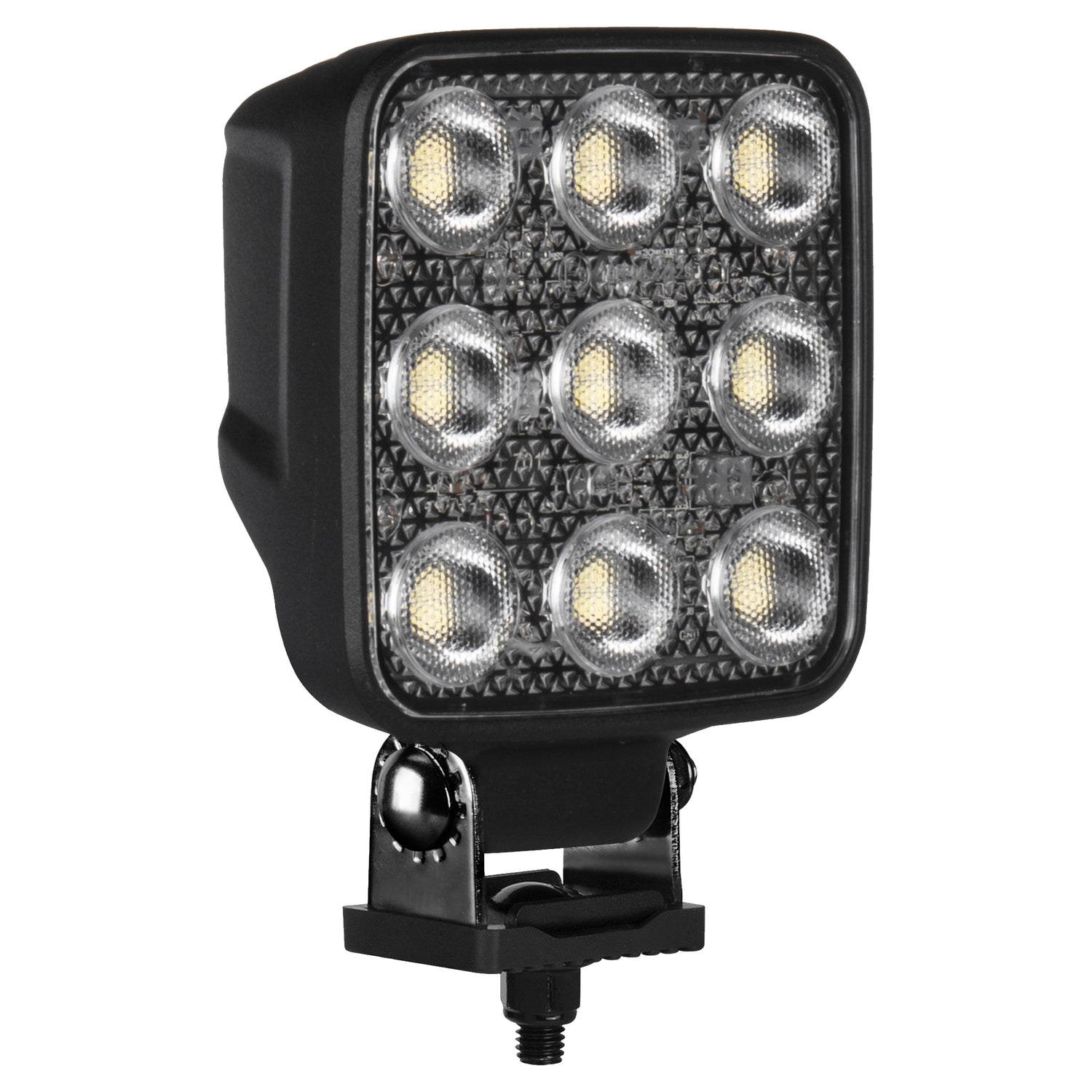

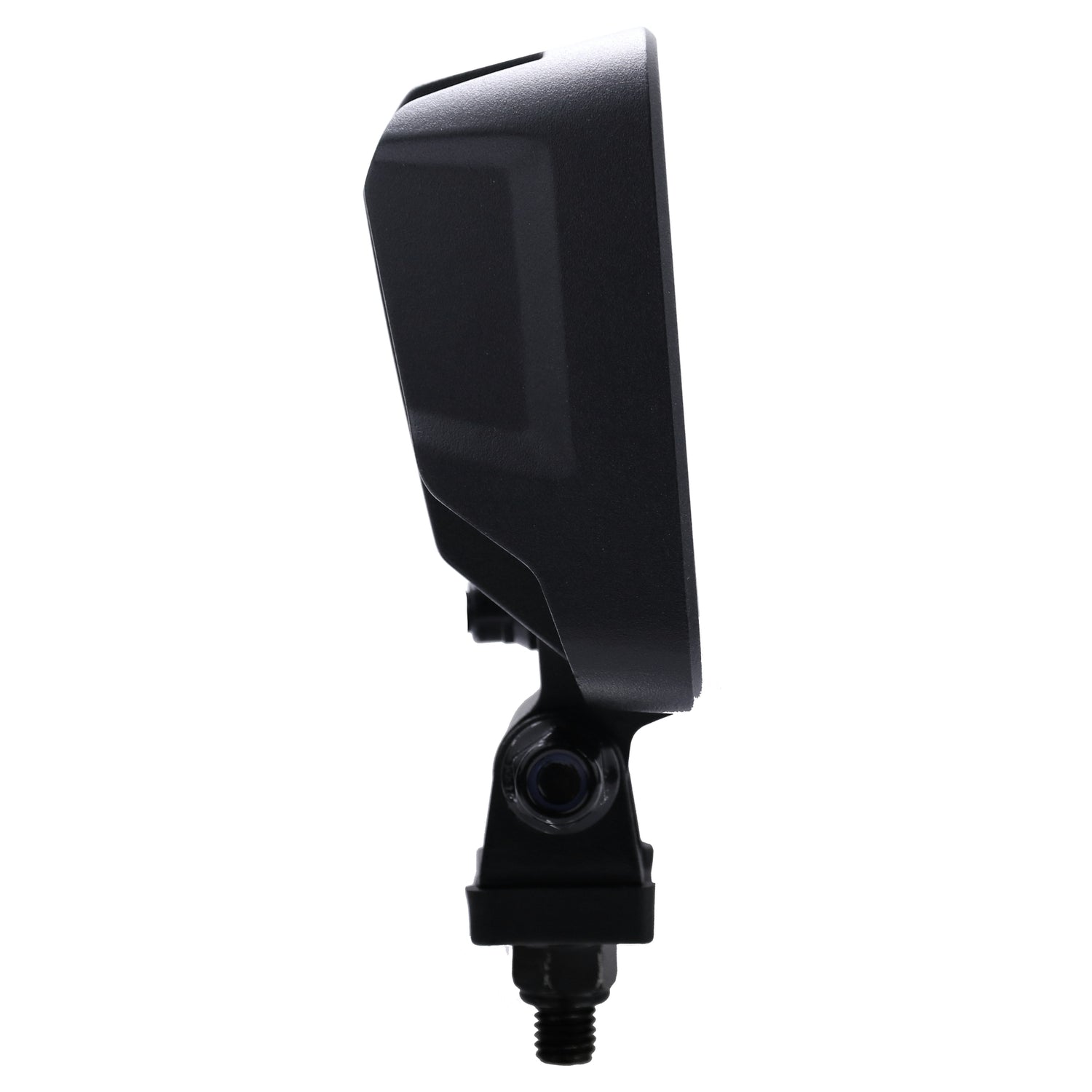

Primelux PX2336 3.9" Square LED Work Light
4,200 Eff. LM | 140° Ultra-Wide Field | CISPR 25 Class 3

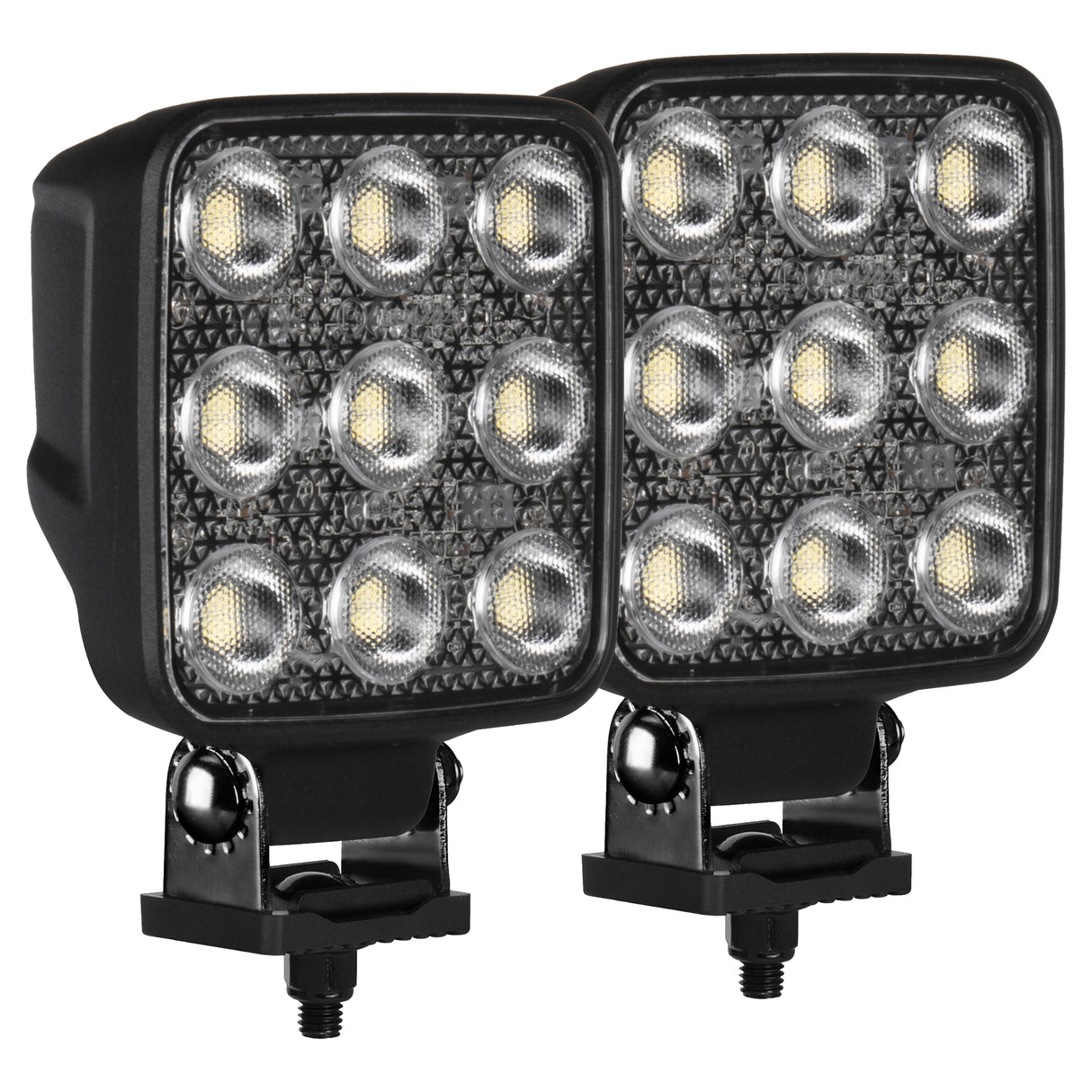

Primelux PX2336 3.9" Square LED Work Light - Pair (2 Lights) is backordered and will ship as soon as it is back in stock.
Free shipping on orders over $99 within USA
Description
Description
Set a new standard for industrial illumination with high-yield optical efficiency. Engineered for maximum performance in heavy-duty environments, the PrimeLux PX2336 unleashes an incredible 4,200 effective lumens from a compact 3.9-inch pod. This high-output power is expertly shaped by precision optics to cast a 140° horizontal light wall, delivering exceptional peripheral visibility and a validated 35-meter forward range without taxing your vehicle's electrical system.
Features

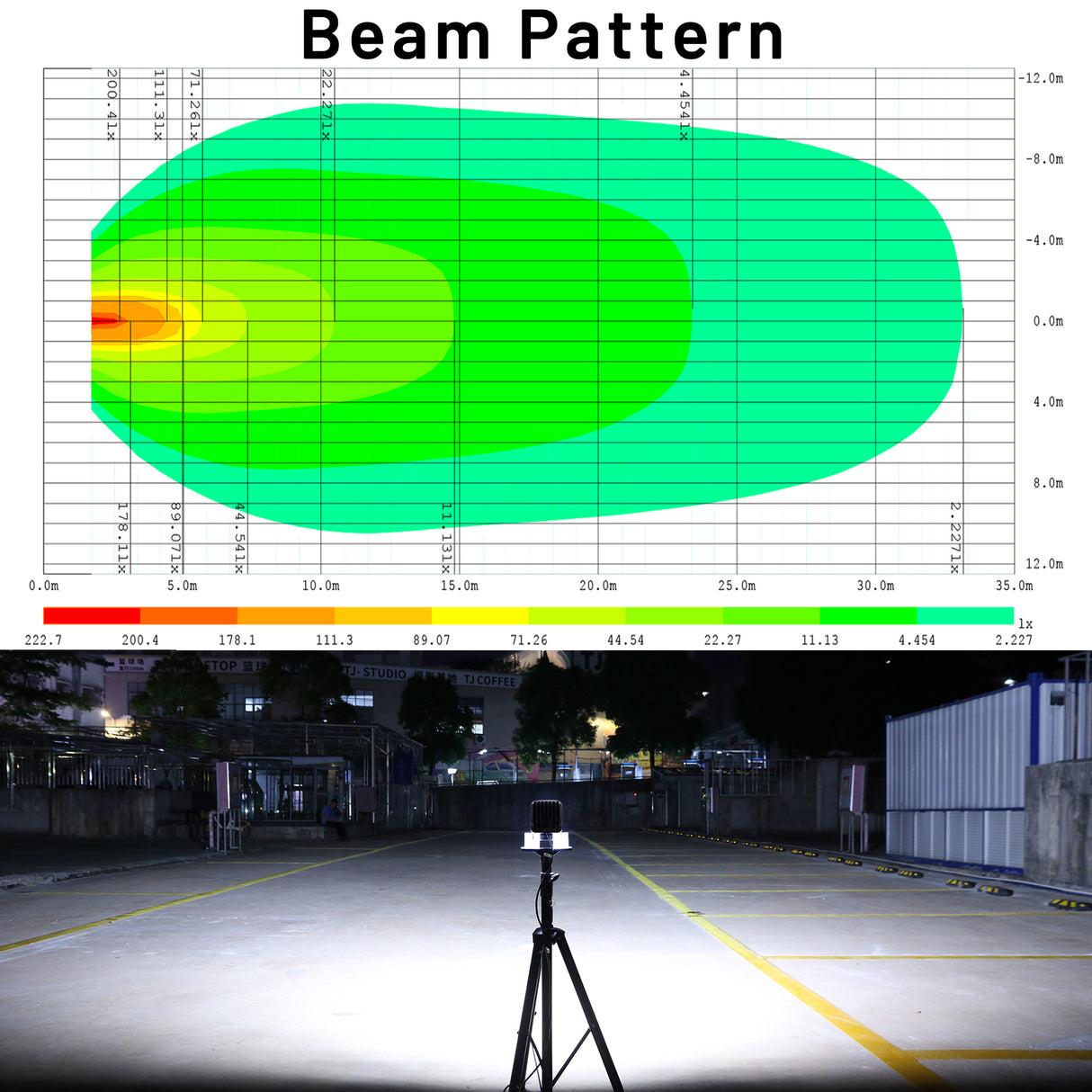

- Precision "Light Blade" Optics: Delivers a meticulously engineered 140°(H) × 54°(V) field angle to maximize ground illumination while eliminating operator hood glare.
- High-Efficiency Forward Penetration: Maintains a potent 2,832 cd peak intensity to provide a proven 35-meter (115 ft) effective range for safer operation at higher speeds.

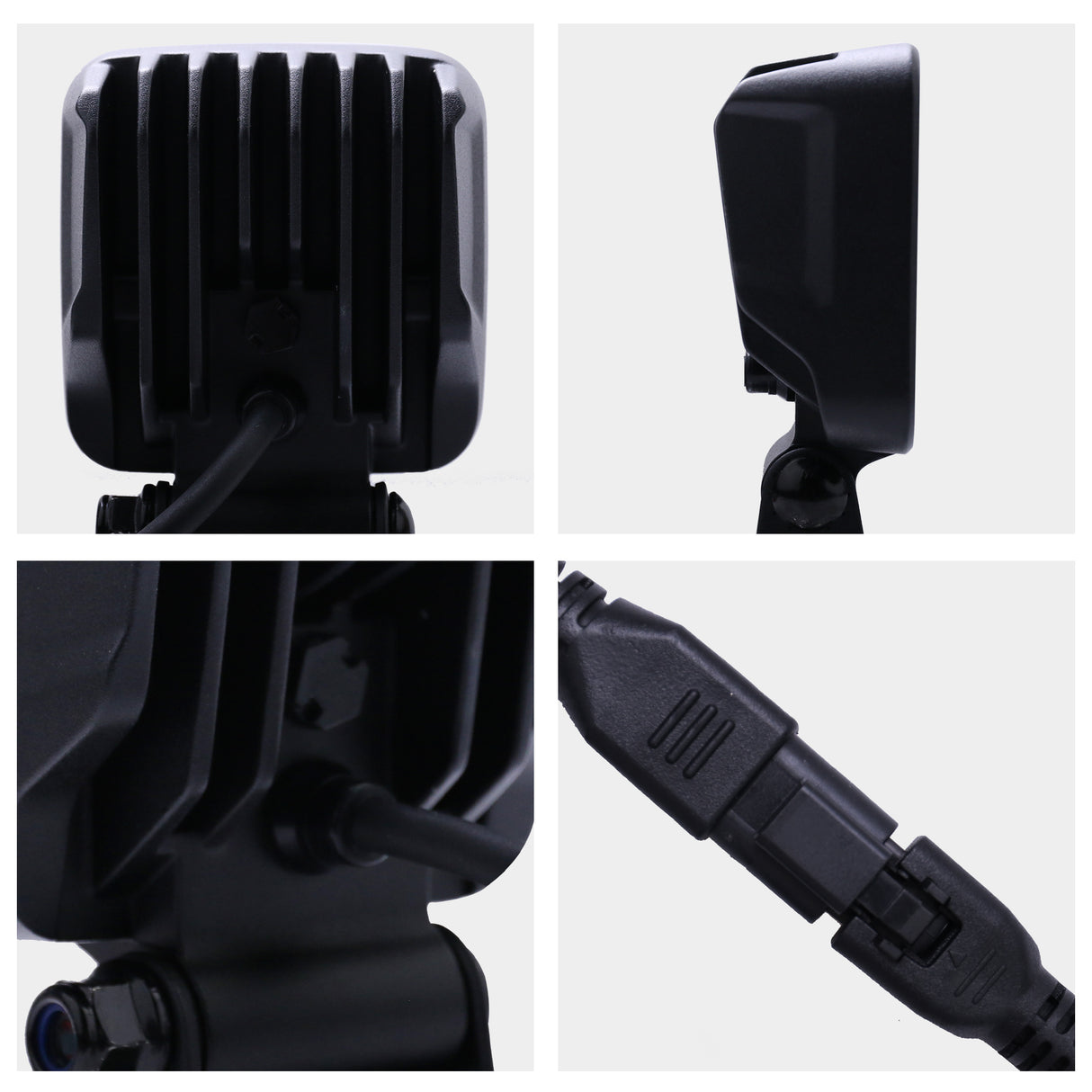

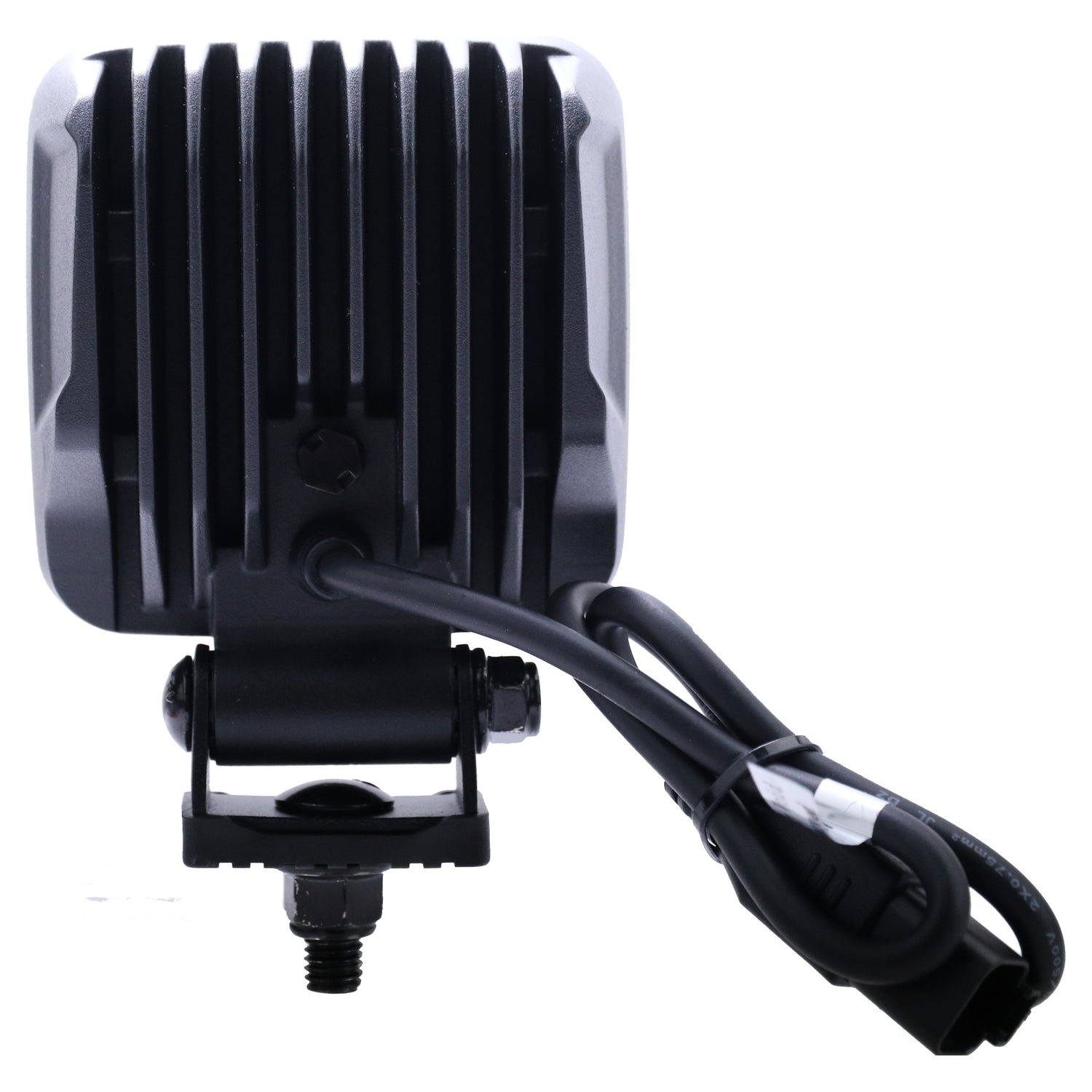

- Dual IP68 & IP69K Resilience: Fully sealed die-cast aluminum housing guarantees absolute protection against total underwater submersion and high-pressure steam washdowns.
- Certified CISPR 25 Class 3 EMC: Integrated advanced circuitry ensures zero electromagnetic disruption to GPS, two-way radios, and sensitive onboard electronics.
- Heavy-Duty Site Endurance: Features a UV-resistant polycarbonate lens and 304 stainless steel brackets built to withstand the brutal vibrations of construction and agricultural worksites.
Technical Specifications
| Parameter | Specification (Single Unit Data) |
|---|---|
| Model | PX2336 |
| Power Consumption | 28.44W |
| Raw Lumens | - |
| Effective Lumens | 4,200 lm |
| Operating Voltage | 10-30V DC (12/24V Compatible) |
| Current Draw | 2.11A @ 13.5V |
| Peak Intensity | 2,832 cd |
| Effective Range | 35 m / 115 ft (at 1.0m mounting height) |
| Beam Angle (50% cd) | 84° (H) × 27° (V) |
| Field Angle (10% cd) | 140° (H) × 54° (V) (Extrapolated) |
| Color Temperature | 5700K |
| Ingress Protection | IP68 / IP69K |
| EMC Compliance | CISPR 25 Class 3 |
| Material | Die-cast Aluminum Housing; 304 Stainless Steel Bracket |
| Lens Material | UV-Resistant Polycarbonate (PC) |
| Operating Temperature | -22°F to +149°F (-30°C to +65°C) |
| Dimensions | 3.9" W x 1.7" D x 3.9" H (99.3 x 43.3 x 99.3 mm) |
| Height (Including Bracket) | 5.2" H (132.5 mm) |

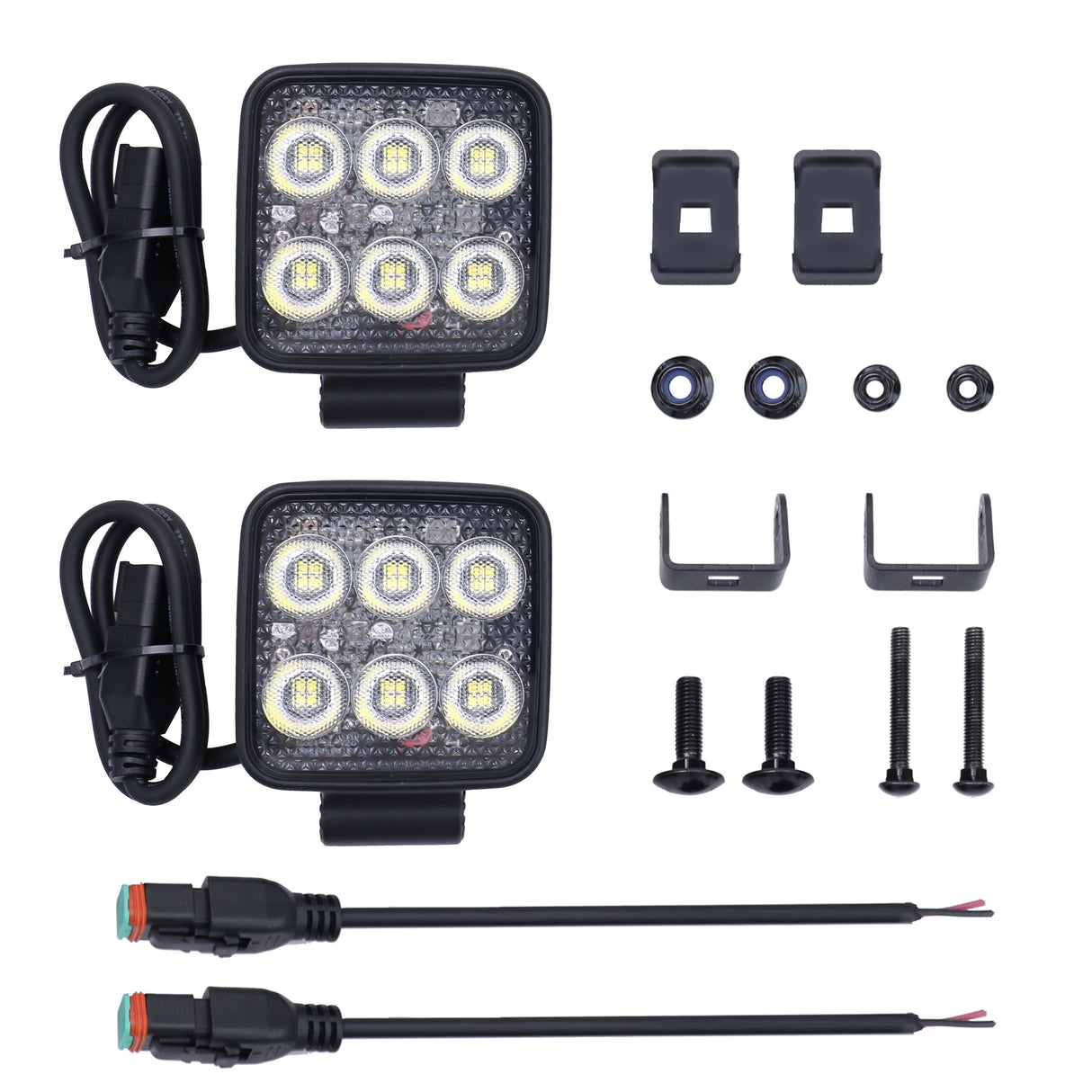

What's in the Box
- 1x Primelux PX2336 3.9" LED Work Lights
- 1x Adjustable 304 Stainless Steel Bottom Brackets
- 1x Set of Mounting Hardware (Bolts & Nuts)
