Two work lights can both be labeled “flood,” yet one may light a broad area beside a vehicle while another produces a more noticeable bright center. Even the same lamp can give a different result when moved from a low bracket to a higher mounting point.
“Flood” describes a broad beam, but it does not tell you the complete shape of the illuminated area, how evenly light is distributed or what you will see after installation. Those differences matter when choosing and using a work light.
This guide focuses on work lighting around vehicles and machinery, such as loading areas, equipment and nearby ground. It does not cover selecting lights for road driving.
“Flood” is a starting point, not a complete description
A flood beam spreads light across an area rather than concentrating it into a narrow spot. Within that broad description, there is still room for different designs.
The lens and reflector help control where the light goes. Horizontal spread can differ from vertical spread, and some designs direct more light below the lamp’s centerline. A wider pattern and a deeper pattern can therefore illuminate different parts of a work area, even when both are described as flood. Manufacturer guidance distinguishes these aspects of beam shape and direction. [1]
For example, lighting a wide rear attachment calls attention to coverage across its width. Lighting the ground beside a parked service vehicle calls attention to the area where someone stands and works. The flood label is relevant to both, but it does not establish that the same lamp and mounting arrangement will suit both equally well.
Wide coverage does not necessarily mean even coverage
Coverage and uniformity answer different questions. Coverage asks where the light reaches. Uniformity asks how much the illumination changes across that area.
A beam may spread well beyond its brightest center while providing much less light toward the edges. If the center looks bright but an attachment’s outer ends remain difficult to see, the visible spread is not telling the whole story.
You do not need perfectly equal illumination everywhere. What matters is whether the parts of the area needed for the task are adequately lit, without distracting bright patches or dark gaps. Uneven lighting, shadows and glare are separate issues from simply having too little light. [2]
Brightness still matters—but so does where the light goes
Light output and beam distribution work together. Lumens describe the amount of light a lamp emits; they do not specify how much reaches each part of the work area. [3]
Two lamps with similar measured lumen output can distribute that light differently. One might place more light near the center, while another spreads more toward the sides. Neither arrangement is automatically better for every task.
More output can help when the required area is too dim. But it does not, by itself, redirect a beam that misses the target or remove a shadow caused by equipment blocking the light. Before choosing a brighter lamp, check whether the problem is insufficient illumination, incomplete coverage or the installation.
For a closer look at the numbers on a product listing, see our guide to lumens, lux and wattage claims.
The installation changes the result
Mounting height and tilt affect where the beam meets the ground or equipment. A lamp aimed farther outward may illuminate a different area from one tilted toward the space immediately below it. Changing the mounting position can also change what blocks the light. [4]

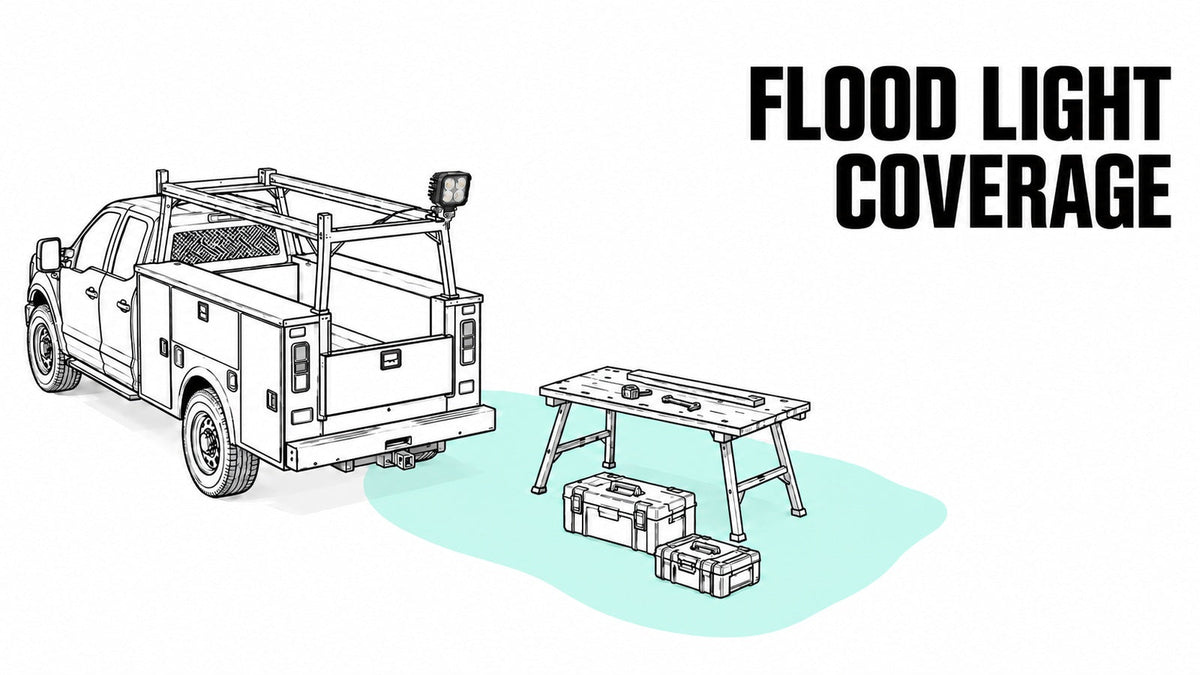

Consider a lamp mounted above a rear attachment. The attachment may be well lit while casting a shadow on the ground behind it. Simply widening the beam will not necessarily reach the blocked area. A different permitted mounting position, aim or an additional light from another direction may be worth considering.
Check the view from the normal operating position too. Light reflecting from a body panel or shining directly toward a worker can make the setup uncomfortable even when the ground looks bright. Follow the product’s installation instructions when adjusting or relocating a lamp. [2]
Check the work area, not just the brightest patch
With the vehicle or machine safely parked and secured, assess the lighting under the conditions in which it will be used. Start with the positions from which people actually observe or perform the task.
| Look at | Ask yourself |
|---|---|
| The whole working area | Can I see the parts I need to monitor, including the sides and far edge? |
| The transition away from the center | Does the illumination fall away before reaching an important part of the task? |
| Equipment and people in their normal positions | Do they block the light and create a shadow where visibility is needed? |
| The view from the operator’s seat or working position | Is direct light or a reflection interfering with the view? |
These observations help identify what needs attention; they are not a measurement of lighting adequacy. If the job has a specified illumination requirement, check it with appropriate measurements on the relevant working surface.
What to look for when choosing a flood work light
Start with the task and the available mounting position. Then use the model’s published specifications, dimensions and any relevant lighting information to narrow the options. A flood label alone cannot guarantee a particular coverage width or useful working distance.
When comparing Primelux work lights, consider brightness alongside how and where the lamp will be mounted. The useful result is an area in which the required work is clearly visible—including the places outside the brightest part of the beam.
